ON-BOARD DIAGNOSTIC [AIR BAG SYSTEM]
T–195
T
End Of Sie

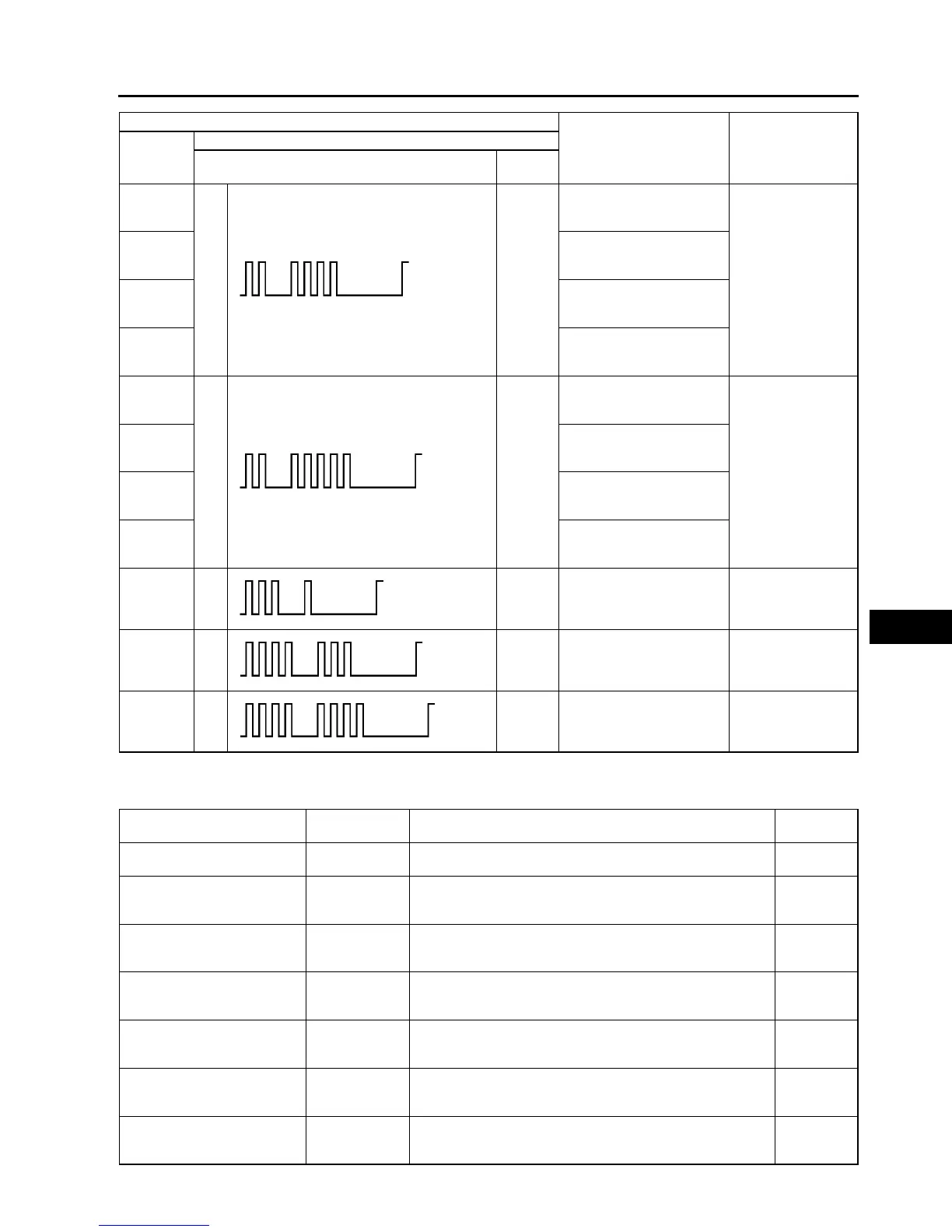

PID/DATA MONITOR TABLE
A6E817401046W03
B2773
24 17
Driver-side curtain air bag
module system resistance
low
(See T–224 DTC
B2773, B2774,
B2775, B2776)
B2774
Driver-side curtain air bag
module system resistance
high
B2775
Driver-side curtain air bag
module system circuit short
to ground
B2776
Driver-side curtain air bag
module system circuit short
to power supply
B2777
25 16
Passenger-side curtain air
bag module system
resistance low
(See T–226 DTC
B2777, B2778,
B2779, B2780)
B2778
Passenger-side curtain air
bag module system
resistance high
B2779
Passenger-side curtain air
bag module system circuit
short to ground
B2780
Passenger-side curtain air
bag module system circuit
short to power supply
B2867 31 6
SAS unit connector poor
connection
(See T–227 DTC
B2867)
U2017 43 8
Driver-side side air bag
sensor system
(communication error)
(See T–220 DTC
B2444, U2017)
U2018 44 7
Passenger-side side air
bag sensor system
(communication error)
(See T–222 DTC
B2445, U2018)
DTC
Malfunction location Page
WDS or
equivalent
Air bag system warning light
Flashing pattern
Priority
ranking
PID name (definition) Unit/condition Condition/specification
SAS unit
terminal
CONT_RCM
(Number of continuous DTC)
—
• DTC is detected: 1—255
• DTC is not detected: 0
—
D_ABAGR2
(Driver-side air bag module
(inflator No.2) resistance)
ohm Under any condition: 1.5—3.7 ohm 1G, 1J
D_CRSH_S
(Driver-side side air bag
sensor state)
OK/
COMM FAIL/
INT FAIL
• Sensor normal: OK
• Sensor communication error: COMM FAIL
• Sensor internal circuit abnormal: INT FAIL
2Z, 2AA
DABAGR
(Driver-side air bag module
(inflator No.1) resistance)
ohm Under any condition: 1.5—3.7 ohm 1S, 1V
DR_CURTN
(Driver-side curtain air bag
module resistance)
ohm Under any condition: 1.4—3.2 ohm 2V, 2Y
DR_PTENS
(Driver-side pre-tensioner seat
belt resistance)
ohm Under any condition: 1.5—3.1 ohm 2P, 2S
DS_AB
(Driver-side side air bag
module resistance)
ohm Under any condition: 1.4—3.2 ohm 2M, 2O
