7. Install in the reverse order of removal.
8. Perform the refrigerant system performance test. (See U–13 REFRIGERANT SYSTEM PERFORMANCE
TEST.)
A/C Unit Installation Note
1. When installing a new A/C unit or evaporator, add a supplemental amount of ATMOS GU10 compressor oil into
the refrigerant cycle.
Supplemental amount (approximate quantity)
25 ml {25 cc, 0.8 fl oz}
End Of Sie

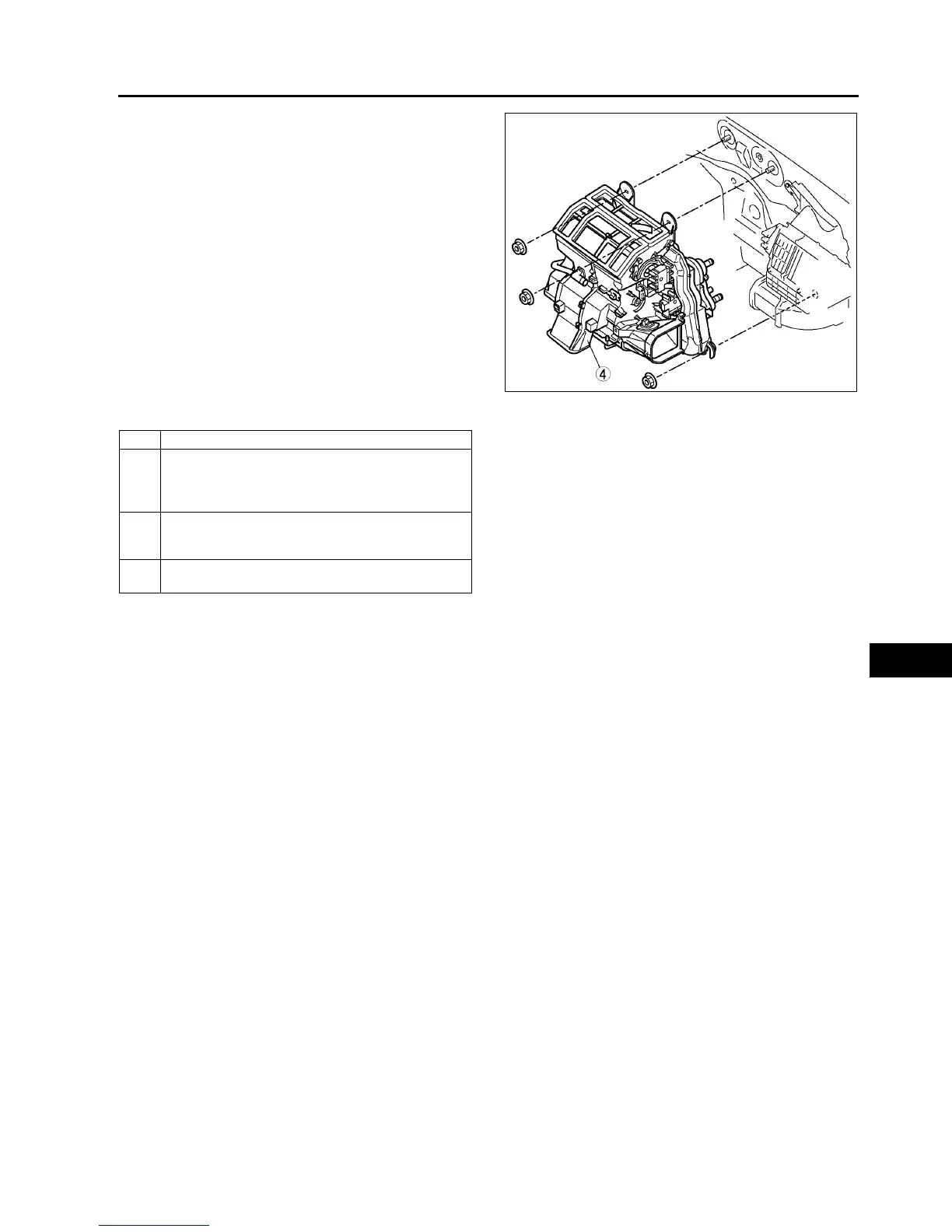

A6E8516W019
1Heater hose
2 Cooler hose (Lo) (L.H.D.) or cooler pipe No.4
(R.H.D.)
(See U–28 Refrigerant Lines Removal Note)
(See U–29 Refrigerant Lines Installation Note)
3 Cooler pipe No.3
(See U–28 Refrigerant Lines Removal Note)
(See U–29 Refrigerant Lines Installation Note)
4A/C unit
(See U–17 A/C Unit Installation Note)
