U–18
BASIC SYSTEM

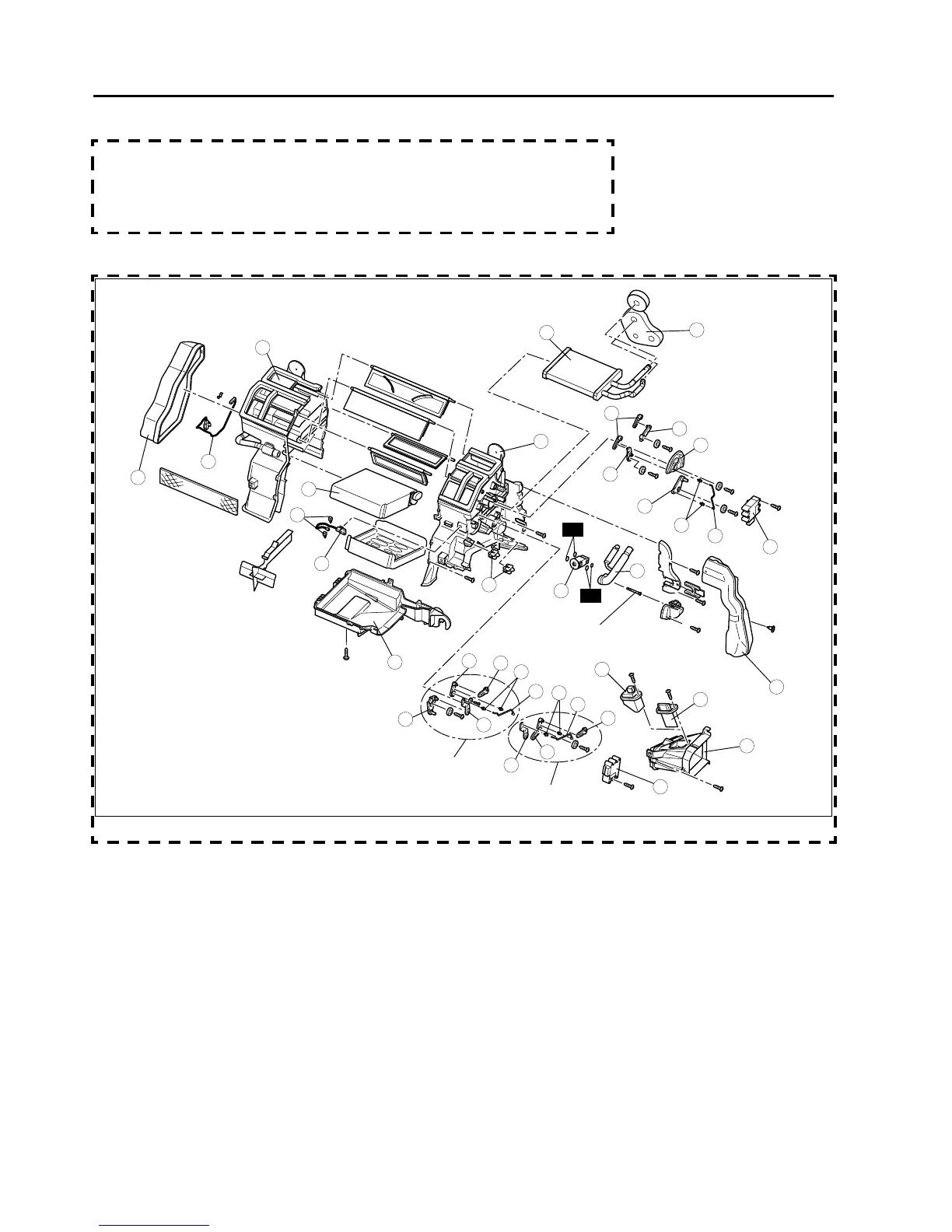

A/C UNIT DISASSEMBLY/ASSEMBLY
A6E851661130W02
Note
• There are three A/C unit types.
— Type A: With expansion valve cover
— Type B: With expansion valve cover and adhesive polyurethan
— Type C: With plate and adhesive polyurethan
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
End Of Sie
9
8
7
5
4
10
19
18
17
15
16
14
13
11
12
20
29
28
25
26
23
21
22
30
35
33
31
32
6
1
2
34
18
15
16
14
13
MANUAL AIR CONDITIONER
FULL-AUTO AIR CONDITIONER
L.H.D.
TYPE A
3.5—5.5
{36—56, 31—48}
N·m {kgf·cm, in·lbf}
R
R
B6E8516W001
To Next Page
