CONTROL SYSTEM
U–37
U

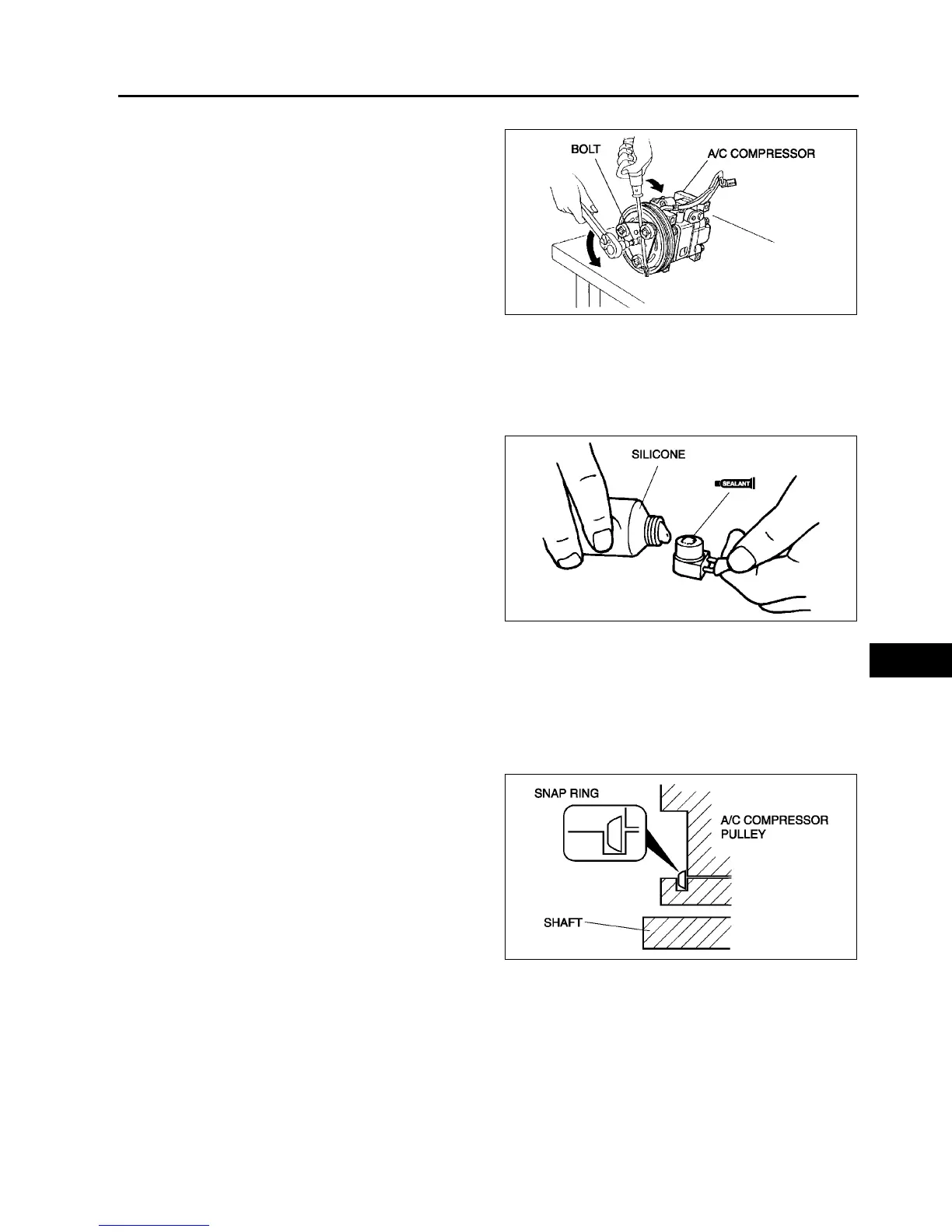

Bolt Removal/Installation Note
1. When removing or installing the bolt, hold the
pressure plate in place as shown in the figure.
2. When installing a new A/C compressor body,
replace the bolt.
Stator and Thermal Protector Removal Note
1. After removing the stator and thermal protector, completely remove the silicone adhering to the A/C
compressor side.
Stator and Thermal Protector Installation Note
1. Apply approximately 1 g {0.04 oz} of silicone
(Shin-Etsu Silicone KE-347W or similar) to the
contact surface of the thermal protector, then
thoroughly install it onto the A/C compressor,
leaving no gaps.
Screw Installation Note
1. When installing a new stator and thermal protector, replace the screw.
Clamp Installation Note
1. When installing a new stator and thermal protector, replace the clamp.
Snap Ring Installation Note
1. When installing a new pressure plate, A/C
compressor pulley, stator, or A/C compressor
body, replace the snap ring.
End Of Sie
A6E8540W048
A6E8540W049
A6E8540W050
