U–44
CONTROL SYSTEM
End Of Sie

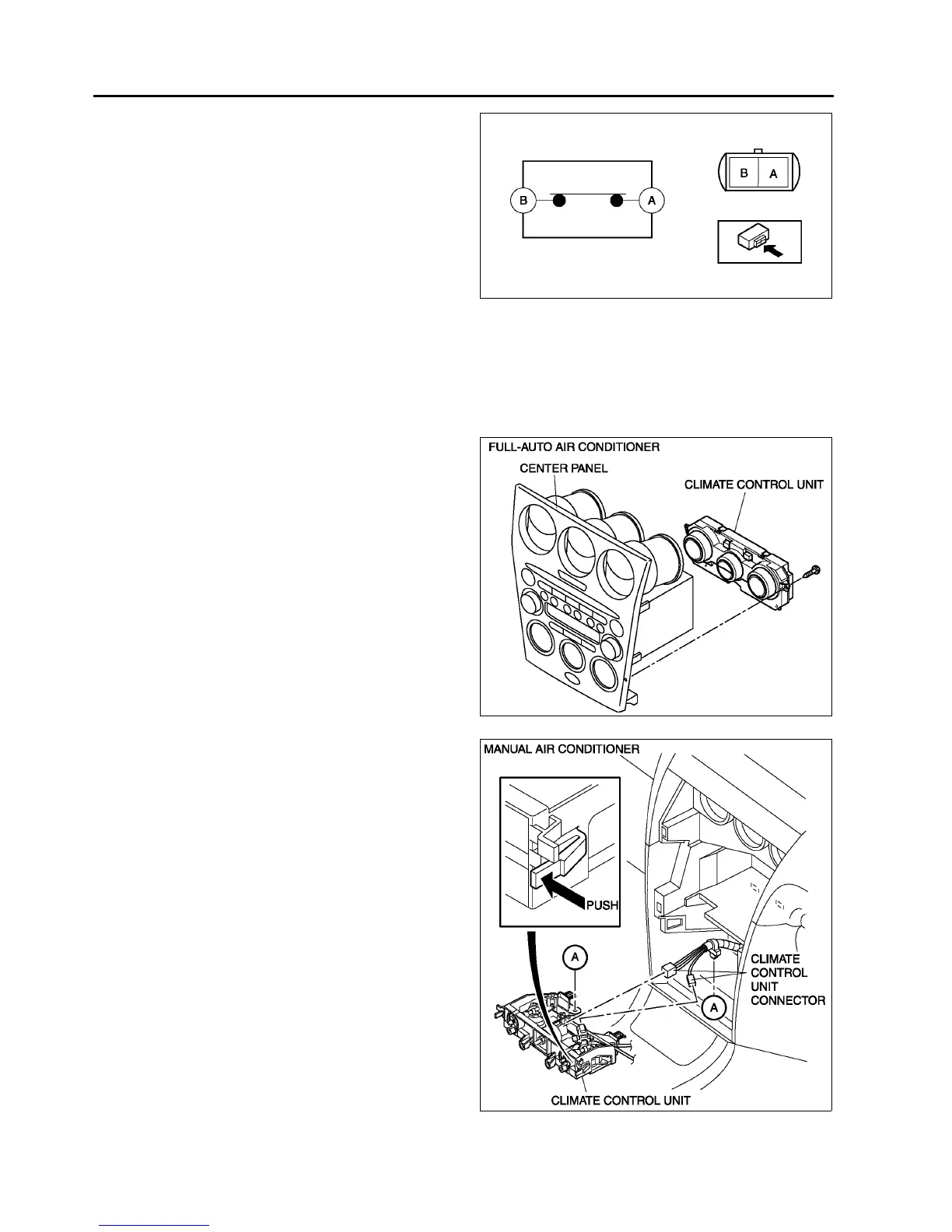

CLIMATE CONTROL UNIT REMOVAL
A6E854061190W03
1. Disconnect the negative battery cable.
2. Disconnect the air mix and airflow mode wires from each wire clamp and link. (Manual air conditioner)
3. Remove the center panel. (See T–96 CENTER PANEL MODULE REMOVAL/INSTALLATION.)
4. Remove the screws and climate control unit. (Full-auto air conditioner)
5. Release the hook and pull the climate control unit toward you. (Manual air conditioner)
6. Disconnect the climate control unit connectors
and remove the climate control unit. (Manual air
conditioner)
End Of Sie
A6E8540W027
A6E8540W028
A6E8540W059
