CONTROL SYSTEM
U–45
U

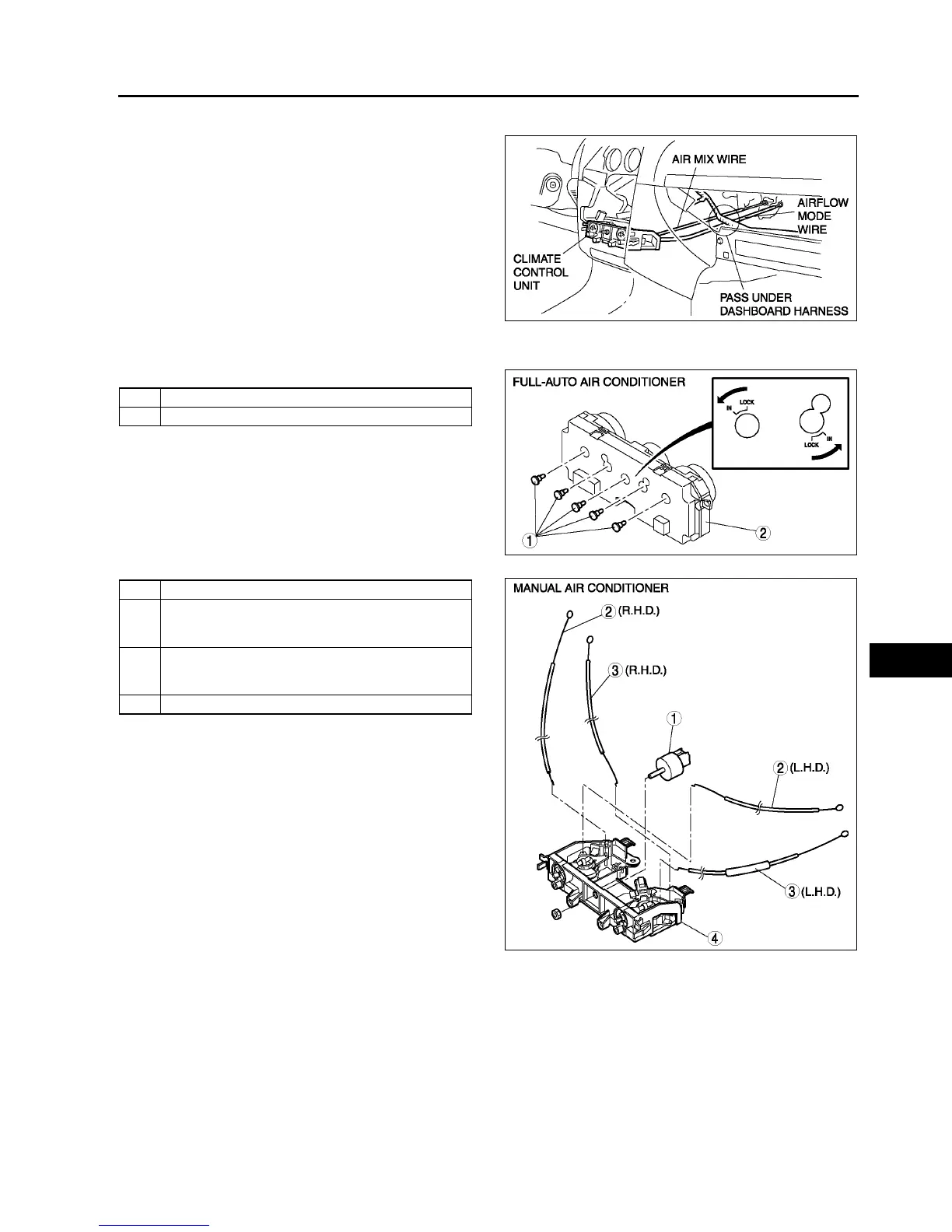

CLIMATE CONTROL UNIT INSTALLATION
A6E854061190W04
1. Pass each wire through the following routes then
connect to A/C unit. (Manual air conditioner)
2. Connect the climate control unit connectors.
(Manual air conditioner)
3. Install the climate control unit to the center panel.
(Full-auto air conditioner)
4. Install the center panel.
5. Adjust the climate control unit wires. (Manual air
conditioner) (See U–46 CLIMATE CONTROL
UNIT WIRE ADJUSTMENT.)
6. Connect the negative battery cable.
End Of Sie
CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY
A6E854061190W01
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
A6E8540W029
1 Illumination bulb
2Body
1 Fan switch
2 Air mix wire
(See U–46 Wire Disassembly Note)
(See U–46 Wire Assembly Note)
3 Airflow mode wire
(See U–46 Wire Disassembly Note)
(See U–46 Wire Assembly Note)
4Body
A6E8540W061
A6E8540W030
To Next Page
