Mazda 2002 6 - Page 128

FUEL SYSTEM
F–24–4
F
Type C; Without nylon tube (2WD)
Type C; Without nylon tube (4WD)
A
A
R
OIL
OIL
R
OIL
OIL
OIL
OIL
R
FUEL FILTER
(HIGH-PRESSURE)
SPRING
RESERVE CUP

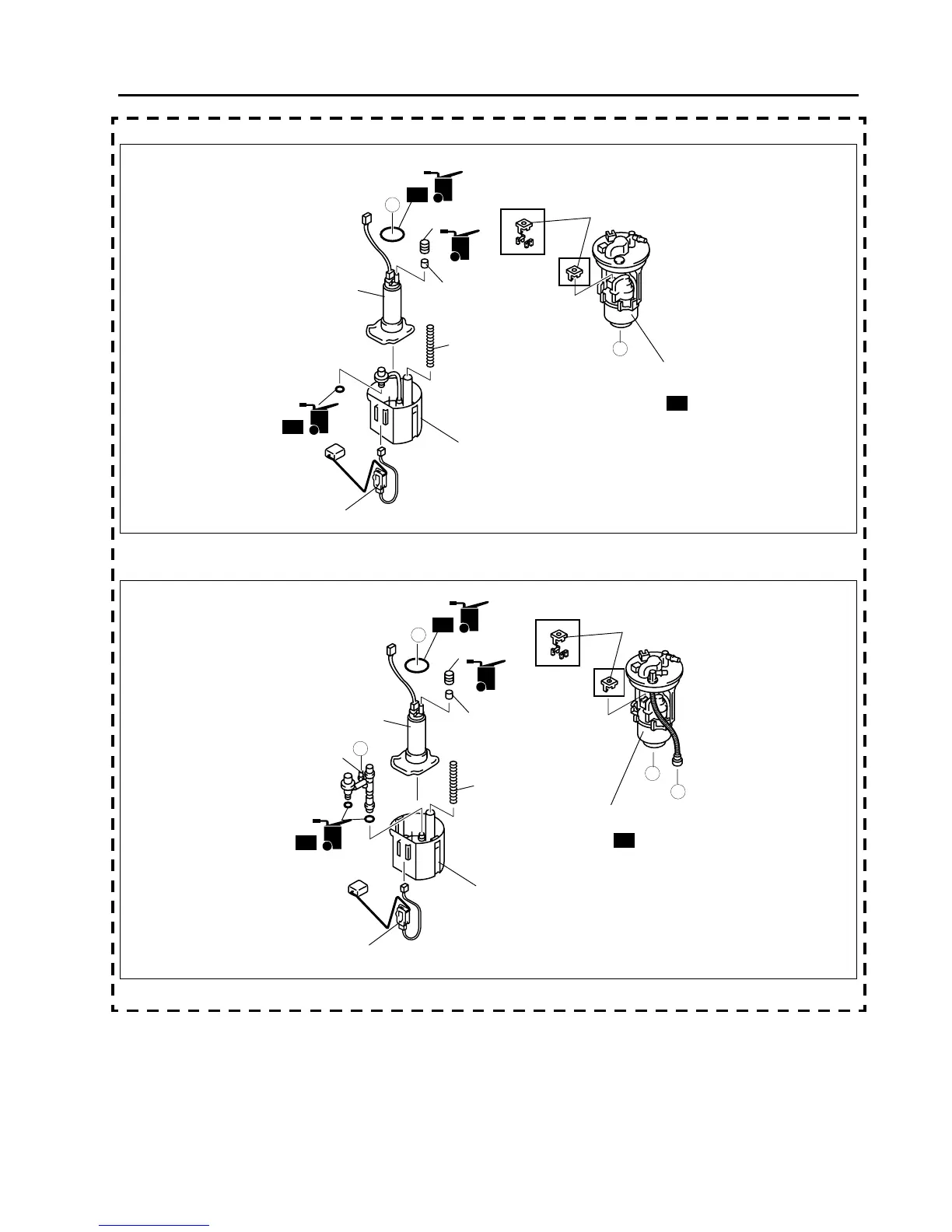

FUEL GAUGE SENDER UNIT
DISASSEMBLY/ASSEMBLY
HOLDING COVER
DISASSEMBLY
ASSEMBLY
FUEL PUMP
SEAL RUBBER
SPACER
C6E114ZL4017
A
A
R
OIL
OIL
R
OIL
OIL
OIL
OIL
R
B
B
HOLDING COVER
FUEL FILTER
(HIGH-PRESSURE)
SPRING
RESERVE CUP
FUEL GAUGE SENDER UNIT
DISASSEMBLY/ASSEMBLY
DISASSEMBLY
ASSEMBLY
FUEL PUMP
SEAL RUBBER
SPACER
TRANSFER
JET PUMP
C6E114ZL4021
