Mazda 2002 6 - Page 129

FUEL SYSTEM
F–24–5
F
Disassembly

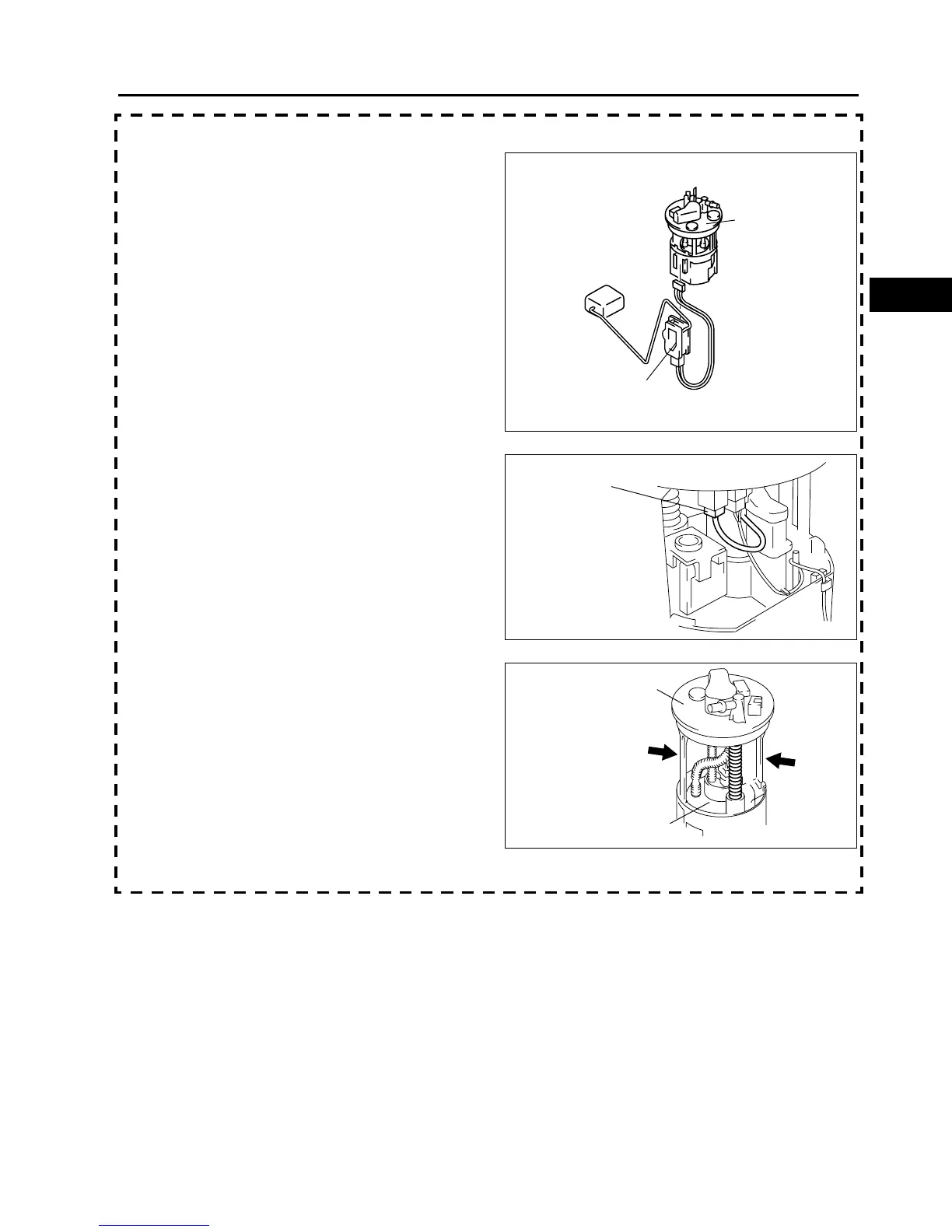

1. Remove the fuel gauge sender unit.
2. Disconnect the fuel pump connector.
3. Remove the arm part of the set plate.
FUEL PUMP UNIT
FUEL GAUGE SENDER UNIT
C6E114ZL4002
FUEL PUMP
CONNECTOR
C6E114ZL4014
SET PLATE
FUEL FILTER
(HIGH-PRESSURE)
C6E114ZL4003
