FUEL SYSTEM
F–24–6
F

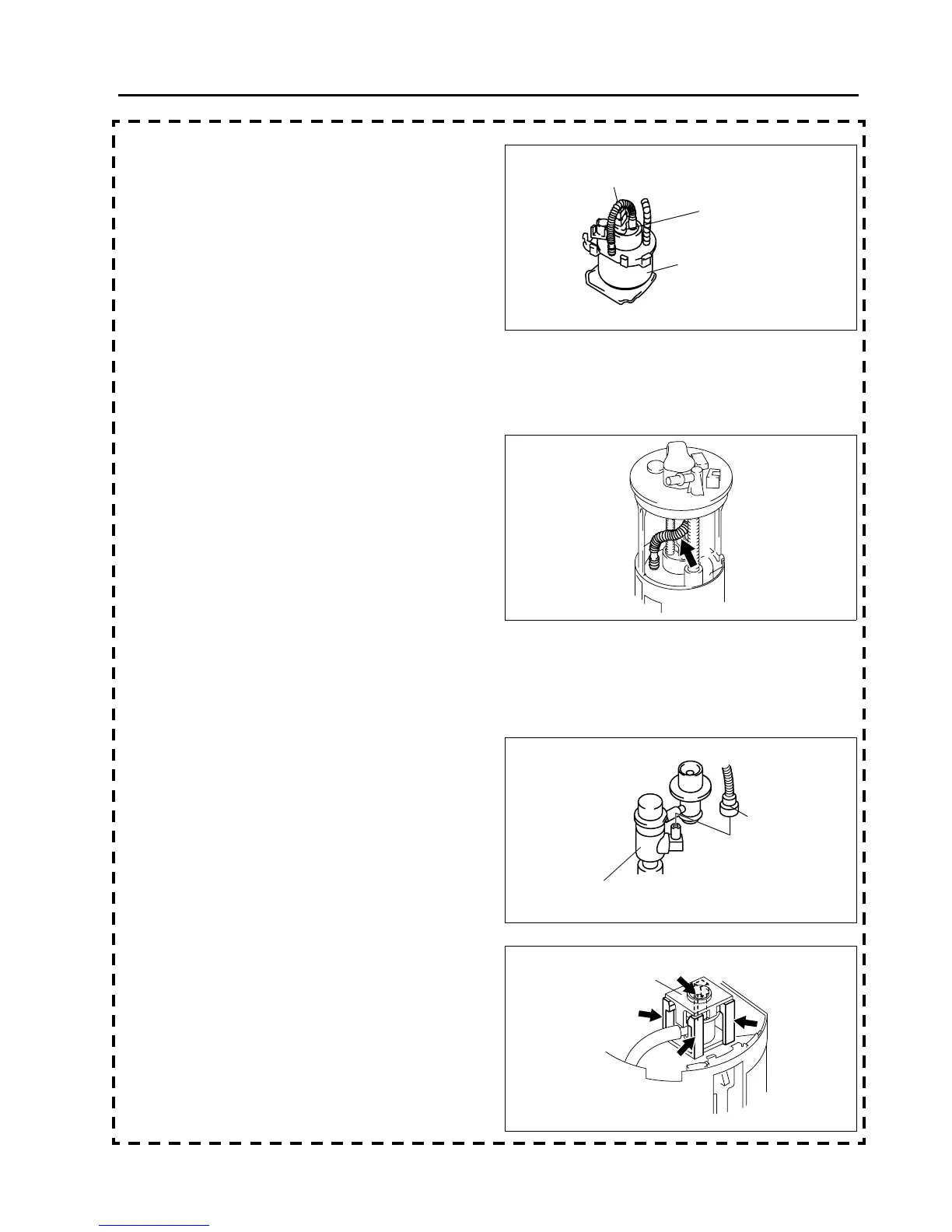

Note
• The disassembly procedure differs
depending on whether the nylon tube
between the fuel filter (high-pressure) and
fuel pump is equipped or not.
• Perform Step 4 (type A, B).
• Go to Step 5 (type C).
Type A, B
Caution
• Cut the nylon tube at the center. If it is cut
at both ends, it may cause pipe damage.
4. Cut the center part of the nylon tube located
between the fuel filter (high-pressure) and set
plate.
Type A, B, C
Note
• Perform Step 5 (4WD).
• Go to Step 6 (2WD).
5. Disconnect the quick release connector from the
transfer jet pump (4WD).
6. Cut the four legs located under the pressure
regulator holding cover.
7. Remove the holding cover from the pressure
regulator.
NYLON TUBE
FUEL PUMP
FUEL FILTER
(HIGH-PRESSURE)
C6E114ZL4026
C6E114ZL4004
QUICK
CONNECTOR
TRANSFER JET PUMP
C6E114ZL4018
HOLDING COVER
C6E114ZL4005
To Next Page
