FUEL SYSTEM
F–24–12
F
Note
• Perform Step 14 (2WD).
• Go to Step 15 (4WD).
14. Install the pressure regulator to the fuel filter (high-pressure) (2WD).
Note
• Perform Step 15 (4WD).
• Go to Step 16 (2WD).
15. Install the transfer jet pump to the reserve cup and pressure regulator to the fuel filter (high-pressure) together
at the same time (4WD).

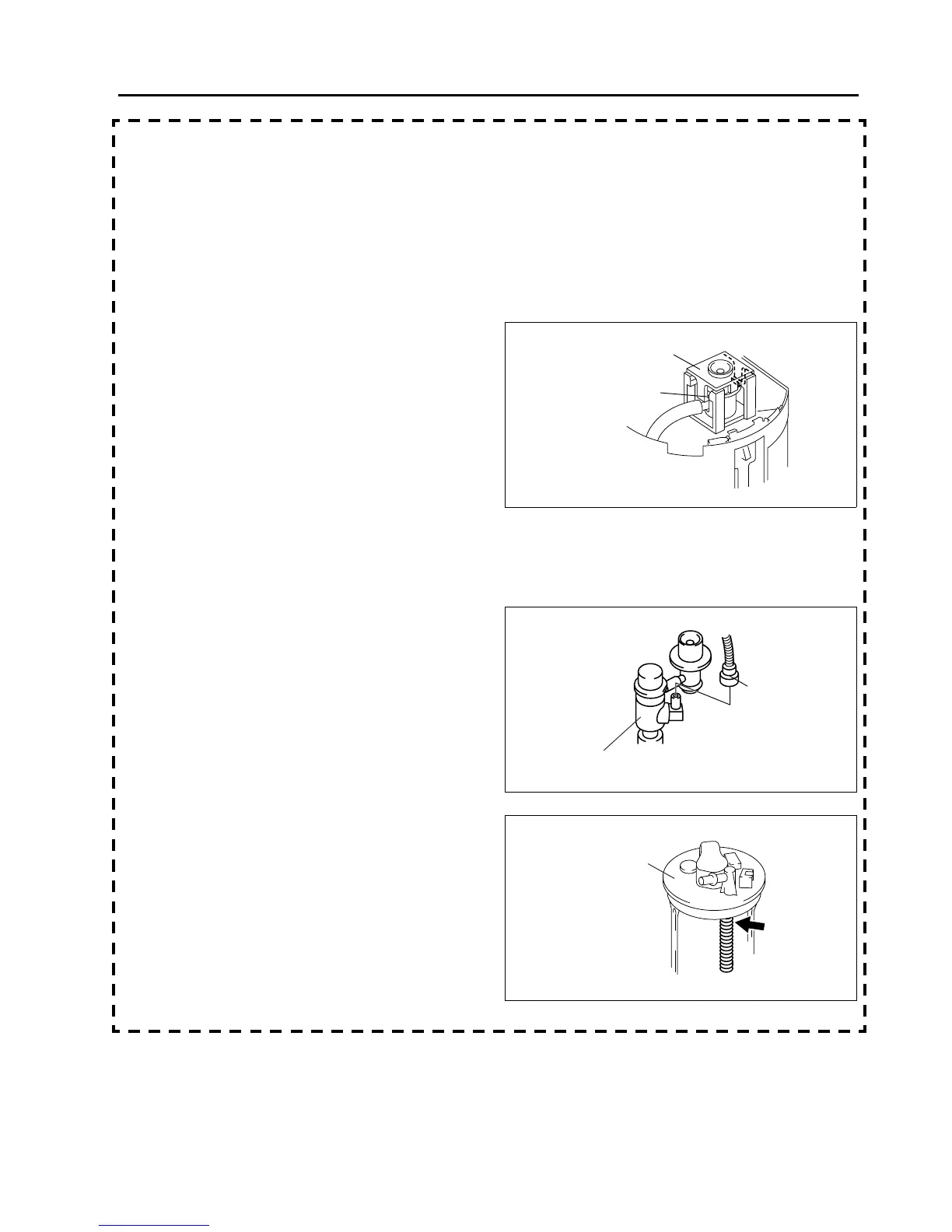

16. Install the pressure regulator holding cover and
verify that the snap fit tab is properly engaged.
Note
• Perform Step 17 ((4WD).
• Go to Step 18 (2WD).
17. Connect the quick release connector to the
transfer jet pump (4WD).
Caution
• Grasp the spring end on the set plate
side and slowly install it without rotating.
If it is rotated, the rubber might wear out.
18. Install the spring to the set plate.
HOLDING COVER
SNAP FIT TAB
C6E114ZL4012
QUICK
CONNECTOR
TRANSFER JET PUMP
C6E114ZL4018
SET PLATE
C6E114ZL4010
To Next Page
