FUEL SYSTEM
F–24–15
F
(2) Remove the fuel pump connector wiring
harness from the right side of the fuel gauge
sender unit connector.
(3) Connect the connector.
23. Press the set plate to expand/contract the fuel
pump unit, and inspect it for the following:
• The fuel gauge sender unit connector wiring
harness does not depart from the clip or
projection.
• The fuel gauge sender unit connector wiring
harness is not pulled. The fuel pump
connector wiring harness is not pinched into
the pressure regulator holding cover.
24. Inspect the following and verify that each part is
normal.
• Resistance inspection of fuel gauge sender
unit
• Missing part
• Engagement condition of snap fit areas
• Splitting, chipping, bending, and cracking in
each part
• Wiring harness routing
• Connector condition
End Of Sie

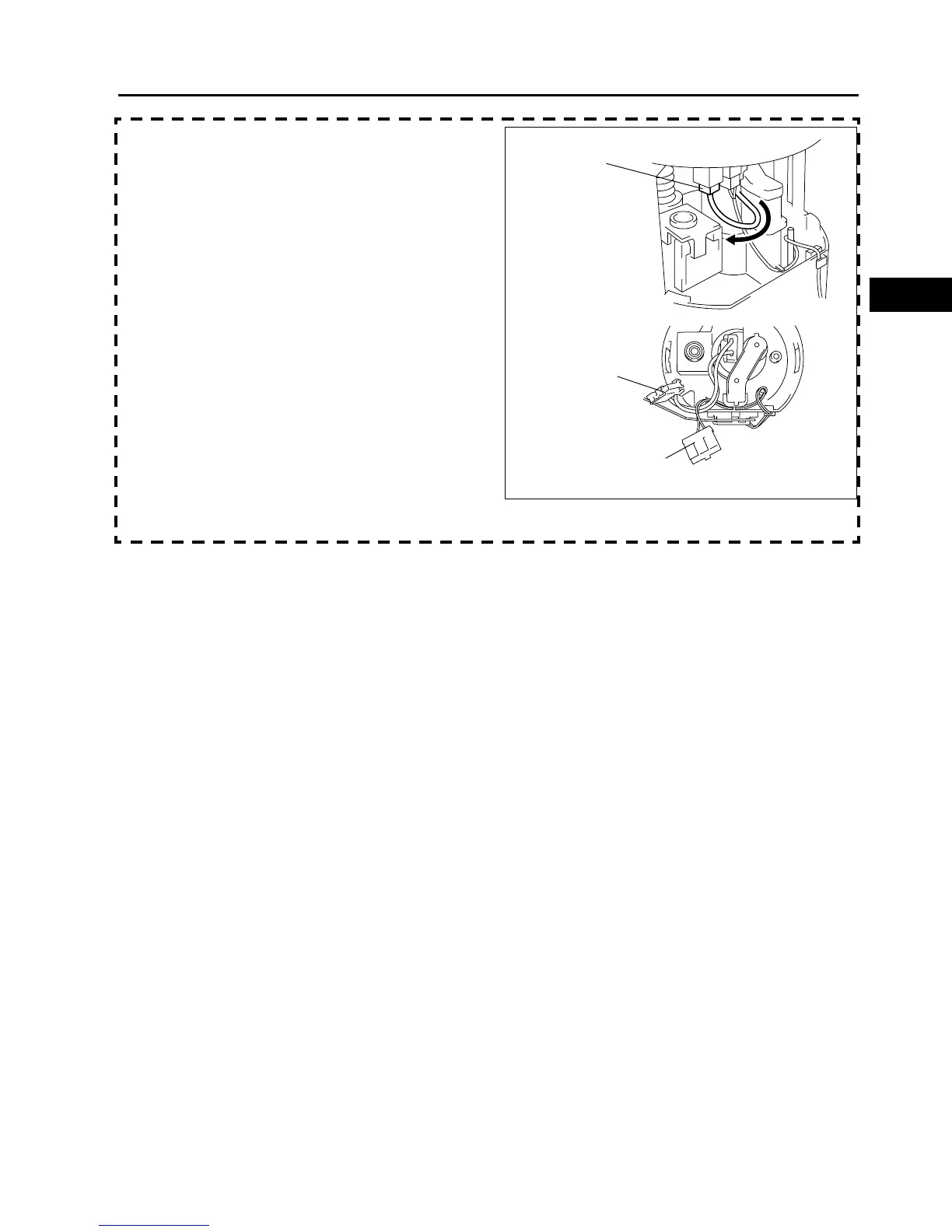

FUEL PUMP
CONNECTOR
FUEL PUMP
CONNECTOR
FUEL GAUGE SENDER
UNIT CONNECTOR
VIEW FROM ABOVE
C6E114ZL4025
