B–16
TIMING CHAIN

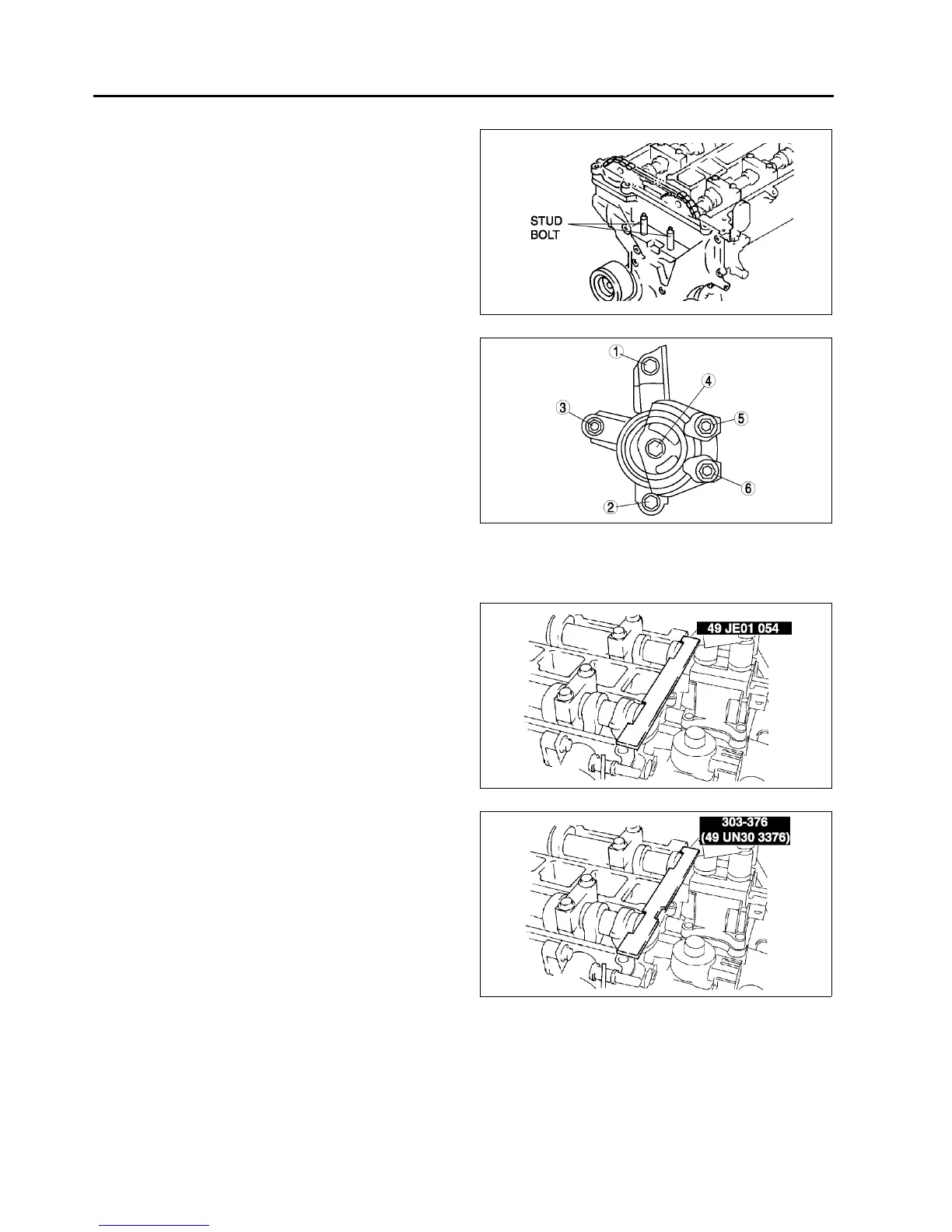

No.3 Engine Mount Rubber and No.3 Engine Joint Bracket Installation Note
1. Tighten the stud bolt of the No.3 engine mount
bracket.
Tightening torque:
7.0—13 N·m {71.4—132.5 kgf·cm, 62.0—115.0
in·lbf}
2. Install the No.3 engine mount rubber hand-
tighten.
3. Tighten the No.3 engine joint bracket is attached
and bolts, nuts in the order shown.
Crankshaft Pulley Lock Bolt Installation Note
1. Install the SST to the camshaft as shown.
European countries
Except European countries
AME2215W011
AME2215W012
AME2212W010
AME2212W011
To Next Page
