ENGINE SPEED SENSING POWER STEERING
N–23
N
.
A6E0612W068

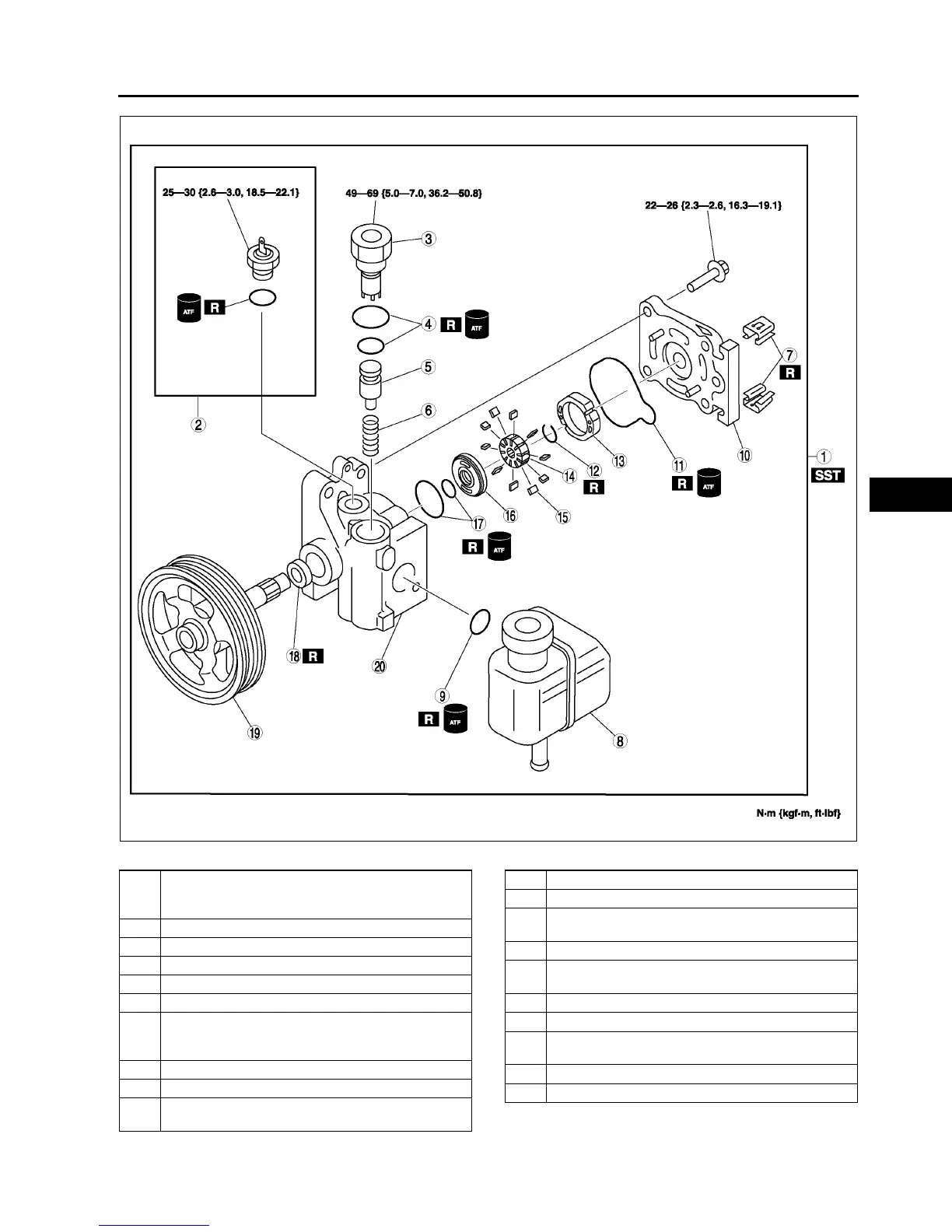

1 Power steering oil pump component
(See N–24 Power Steering Oil Pump Component
Disassembly Note)
2 Pressure switch component
3 Connector
4 O-rings
5 Control valve
6Spring
7Clip
(See N–24 Clip Disassembly Note)
(See N–24 Clip Assembly Note)
8 Power steering reservoir tank
9 O-ring
10 Rear pump body
(See N–25 Rear Pump Body Assembly Note)
11 O-ring
12 Clip
13 Cam ring
(See N–25 Cam Ring Assembly Note)
14 Rotor
15 Vane
(See N–25 Vane Assembly Note)
16 Side plate
17 O-ring
18 Oil seal
(See N–25 Oil Seal Assembly Note)
19 Shaft component
20 Front pump body
