P–18
CONVENTIONAL BRAKE SYSTEM

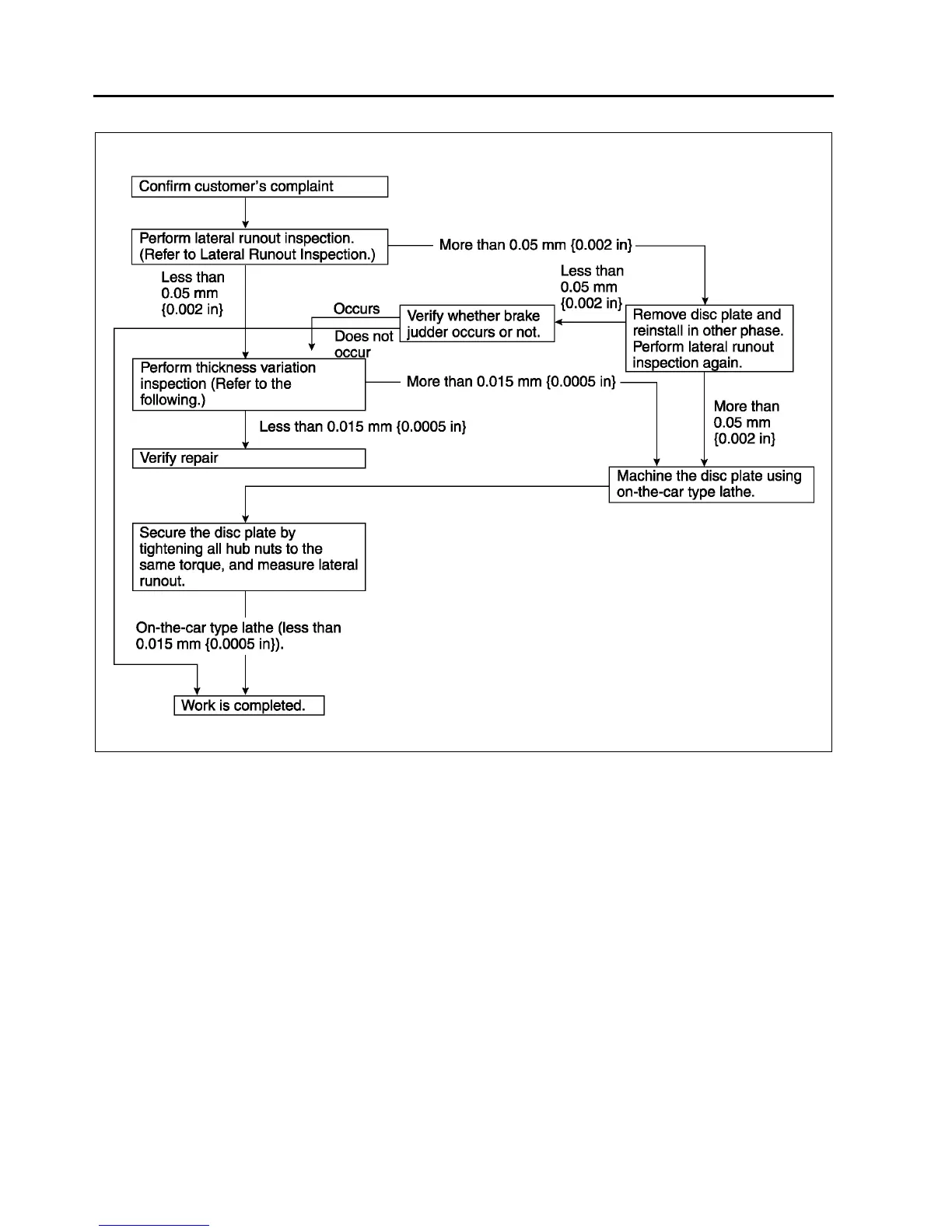

Inspection and repair procedure
Lateral runout inspection
1. To secure the disc plate and the hub, tighten the hub nuts upside down or insert a washer (thickness 10 mm
{0.39 in}, inner diameter more than 12 mm {0.47 in}) between the hub bolt and the hub nut.
Note
• The component parts of the SST (49 B017 001 or 49 G019 003) can be used as a suitable washer.
2. After tightening all the hub nuts to the same torque, put the dial gauge on the friction surface of disc plate 10
mm {0.39 in} from the disc plate edge.
3. Rotate the disc plate one time and measure the runout.
Runout limit
0.05 mm {0.002 in}
A6E6912W008
To Next Page
