INTERIOR LIGHTING SYSTEM
T–50–1
T
T–50 BODY ELECTRICAL SYSTEM
VANITY MIRROR ILLUMINATION REMOVAL/INSTALLATION
A6E811469270W01
Applied VIN (assumed):
JMZ GG12***# 202316—
JMZ GG14***# 202316—
JMZ GY19***# 146118—
JMZ GY89***# 146118—
JM7 GY39***# 101432—
JM7 GG32***# 128767—
JM7 GG42***# 128767—
JM7 GG34***# 128767—
JM7 GG44***# 128767—
JM7 GY49***# 101432—

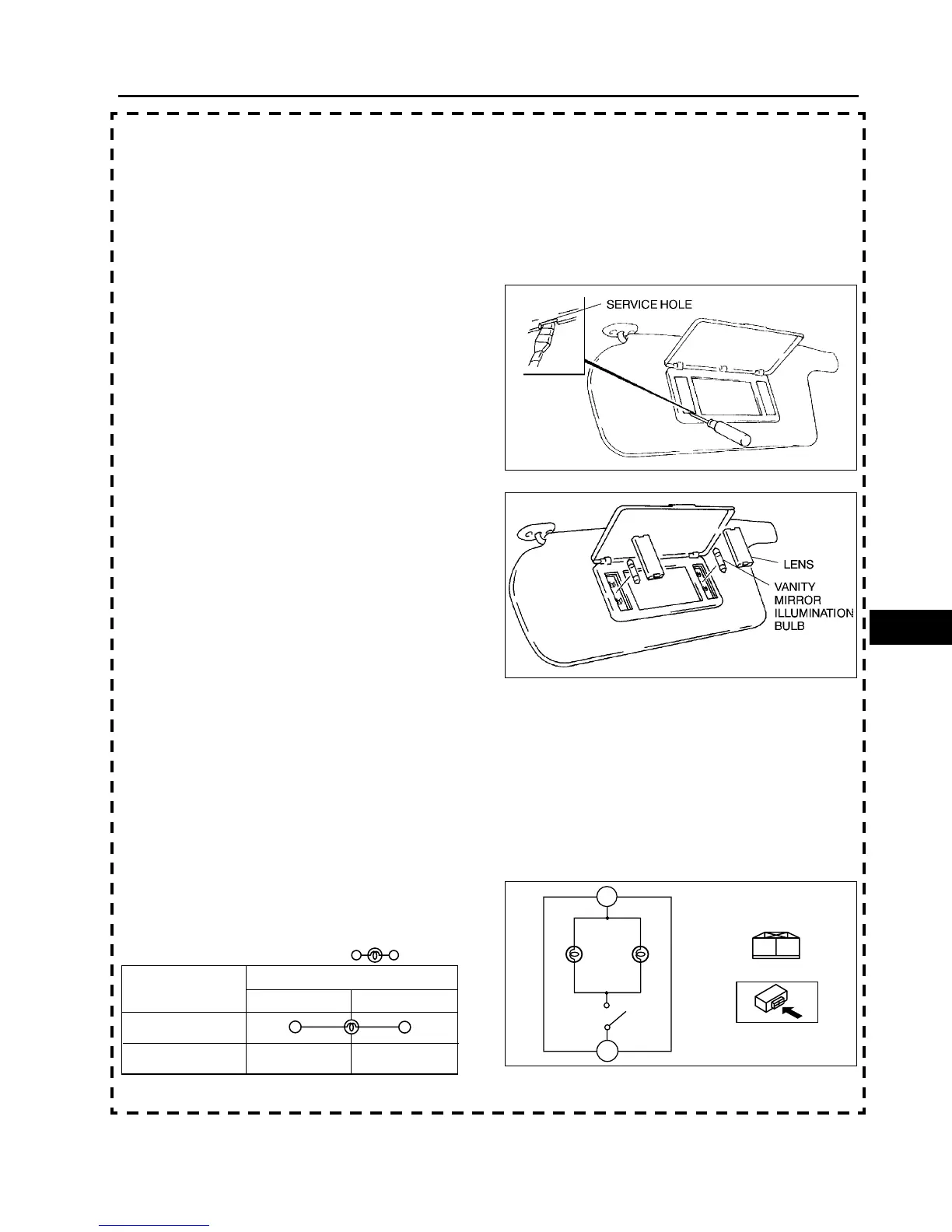

1. Disconnect the negative battery cable.
2. Insert a tape-wrapped, flathead screwdriver into
the service hole.
3. Twist the flathead screwdriver to remove the lens.
4. Remove the vanity mirror illumination bulb.
5. Install in the reverse order of removal.
End Of Sie
VANITY MIRROR ILLUMINATION INSPECTION
A6E811469270W02
Applied VIN (assumed):
JMZ GG12***# 202316—
JMZ GG14***# 202316—
JMZ GY19***# 146118—
JMZ GY89***# 146118—
JM7 GY39***# 101432—
JM7 GG32***# 128767—
JM7 GG42***# 128767—
JM7 GG34***# 128767—
JM7 GG44***# 128767—
JM7 GY49***# 101432—
1. Remove the sunvisor.
2. Check for continuity between the vanity mirror
illumination terminals by using an ohmmeter.
• If not as specified, replace the sunvisor.
End Of Sie
INTERIOR LIGHTING SYSTEM
B6J0918W015
B6J0918W011
A
B
A
B
B6J0918W013
B6J0918W012
: Bulb
Terminal
B
A
Vanity mirror
cover condition
Open
Close
