Mitsubishi GOT2000 Series Connection Manual

5. ETHERNET CONNECTION
5.3 GOT Side Settings
5 - 15
5
ETHERNET CONNECTION

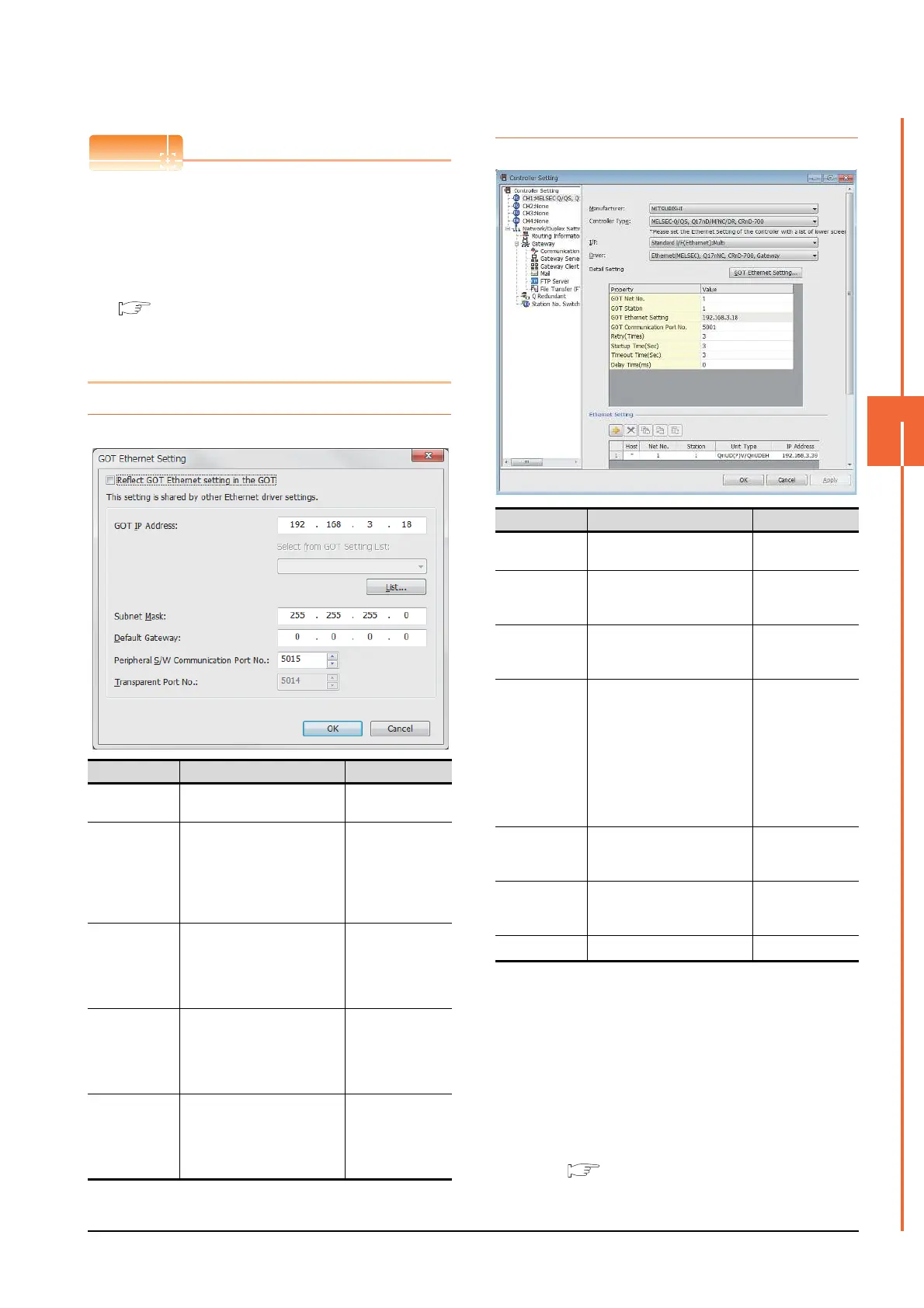

POINTPOINTPOINT
(1) Communication interface setting by Utility
The communication interface setting can be
changed on the Utility's [Communication Settings]
after writing [Communication Settings] of project
data.
For details on the Utility, refer to the following
manual.
GOT2000 Series User's Manual (Utility)
(2) Precedence in communication settings
When settings are made by GT Designer3 or the
Utility, the latest setting is effective.
5.3.3 GOT Ethernet setting
5.3.4 Ethernet setting
*1 Select one of the following [Controller Type].
• Connection to Built-in Ethernet port: QnUD(P)V/QnUDEH,
QCPU, Q170MCPU, Q170MSCPU(-S1), Q173D(S)CPU/
Q172D(S)CPU: QnUD(V/EH)
• C Controller module: QnD(H)CCPU
• Connection to Built-in Ethernet port LCPU: LCPU
• Ethernet module (NZ2GF-ETB): NZ2GF-ETB
• Q17nNCCPU: Q17nNC
• Ethernet module (Q, L Series): QJ71E71/LJ71E71
• Ethernet module (QnA Series): AJ71QE71
• Ethernet module (A Series): AJ71QE71
• Ethernet module (FX Series): FX
• Built-in Ethernet port FXCPU: FX
For the applicable Ethernet module, refer to the following.
5.2System Configuration
Item Description Range
GOT
IP Address
Set the IP address of the GOT.
(Default: 192.168.0.18)
0.0.0.0 to
255.255.255.255
Subnet Mask
Set the subnet mask for the sub
network. (Only for connection
via router)
If the sub network is not used,
the default value is set.
(Default: 255.255.255.0)
0.0.0.0 to
255.255.255.255
Default
Gateway
Set the router address of the
default gateway where the GOT
is connected. (Only for
connection via router)
(Default: 0.0.0.0)
0.0.0.0 to
255.255.255.255
Peripheral S/W
Communication
Port No.
Set the GOT port No. for the S/
W communication.
(Default: 5015)
1024 to 5010,
5014 to 65534
(Except for 5011,
5012, 5013 and
49153)
Transparent
Port No.
Set the GOT port No. for the
transparent function.
(Default: 5014)
1024 to 5010,
5014 to 65534
(Except for 5011,
5012, 5013 and
49153)
Item Description Range
Host
The host is displayed.(The host
is indicated with an asterisk (*).))
-
Net No.
Set the network No. of the
connected Ethernet module.
(Default: blank)
1 to 239
Station
Set the station No. of the
connected Ethernet module.
(Default: blank)
1 to 64
Unit Type
*1
Set the type of the connected
Ethernet module.
(Default: QJ71E71/LJ71E71)
QnUD(P)V/QnUDEH,
QnD(H)CCPU,
LCPU,
Q17nNC,
QJ71E71/
LJ71E71,
AJ71QE71,
AJ71E71
FX
NZ2GF-ETB
IP Address
Set the IP address of the
connected Ethernet module.
(Default: blank)
0.0.0.0 to
255.255.255.255
Port No.
*2
Set the port No. of the
connected Ethernet module.
(Default: 5001)
1024 to 65534
Communication
*3
UDP UDP, TCP
