Mitsubishi GOT2000 Series Connection Manual

19. MULTI-CHANNEL FUNCTION
19.3 GOT Side Settings
19 - 7
19
MULTI-CHANNEL FUNCTION
19.3 GOT Side Settings
19.3.1 Basics of interface selection
This section explains basic knowledge of the multi-channel function.
A general flow of operation from system selection for the multi-channel function to drawing is explained in 19.3.2 to
19.3.6.
It is recommended to refer to 19.3.2 to 19.3.6 when making necessary settings using the multi-channel function for the
first time.
 Multi-channel function specifications
How the units are installed and the multi-channel function specifications are described below.

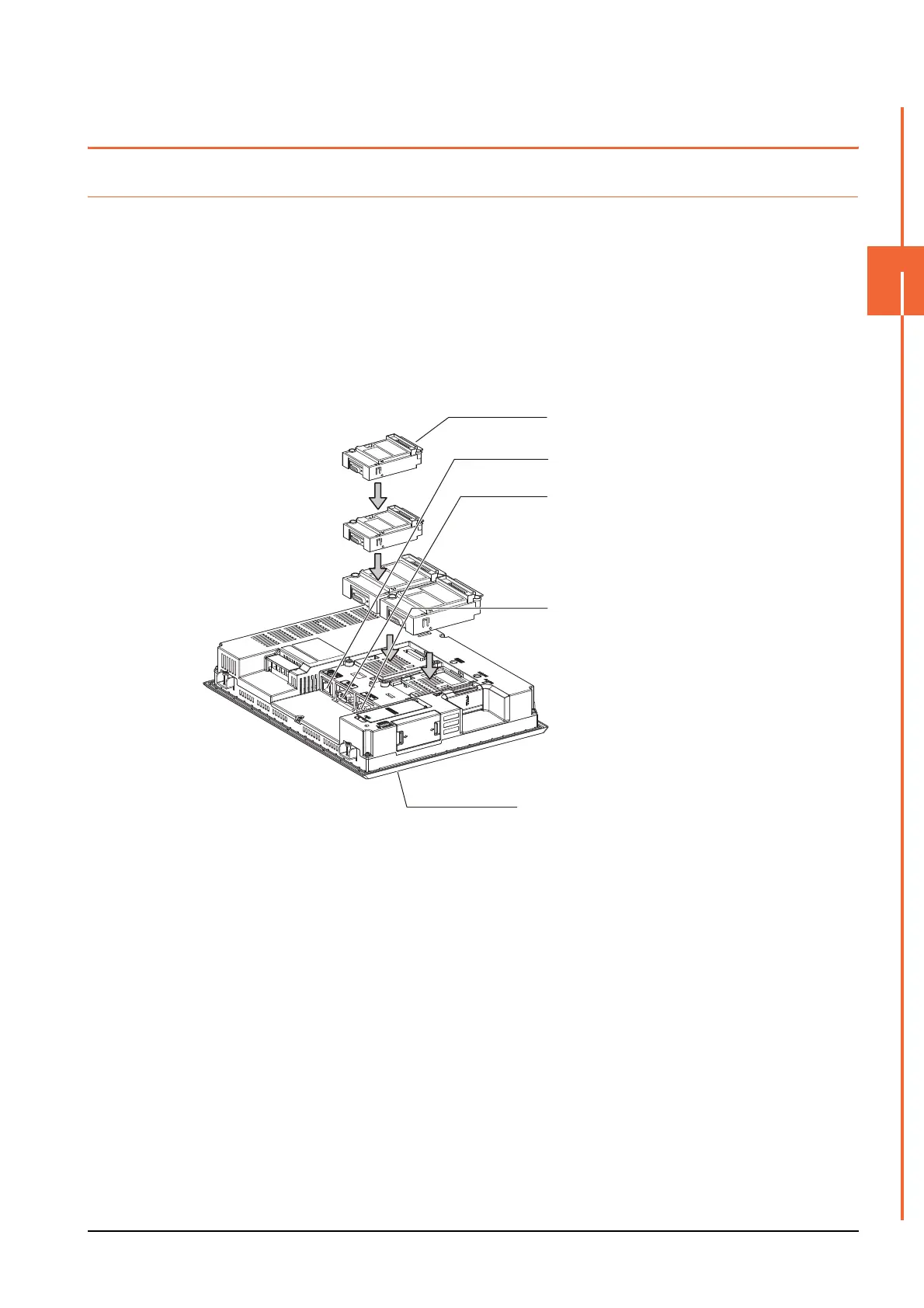

(1) Image drawing of unit installation
3rd stage
2nd stage
1st stage
Extension interface
Standard interface 4
(Ethernet interface built in the GOT)
Standard interface 3
(RS-422/485 interface built in the GOT)
Standard interface 1
(RS-232 interface built in the GOT)
Standard interface 2
(USB interface built in the GOT)
(Example: In the case of the GT27)

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
