20. FA TRANSPARENT FUNCTION
20.6 Personal Computer Side Setting
20 - 59
20
FA TRANSPARENT FUNCTION
20.6.15 Accessing by
QnUDVCPU•LCPU Logging
Configuration Tool

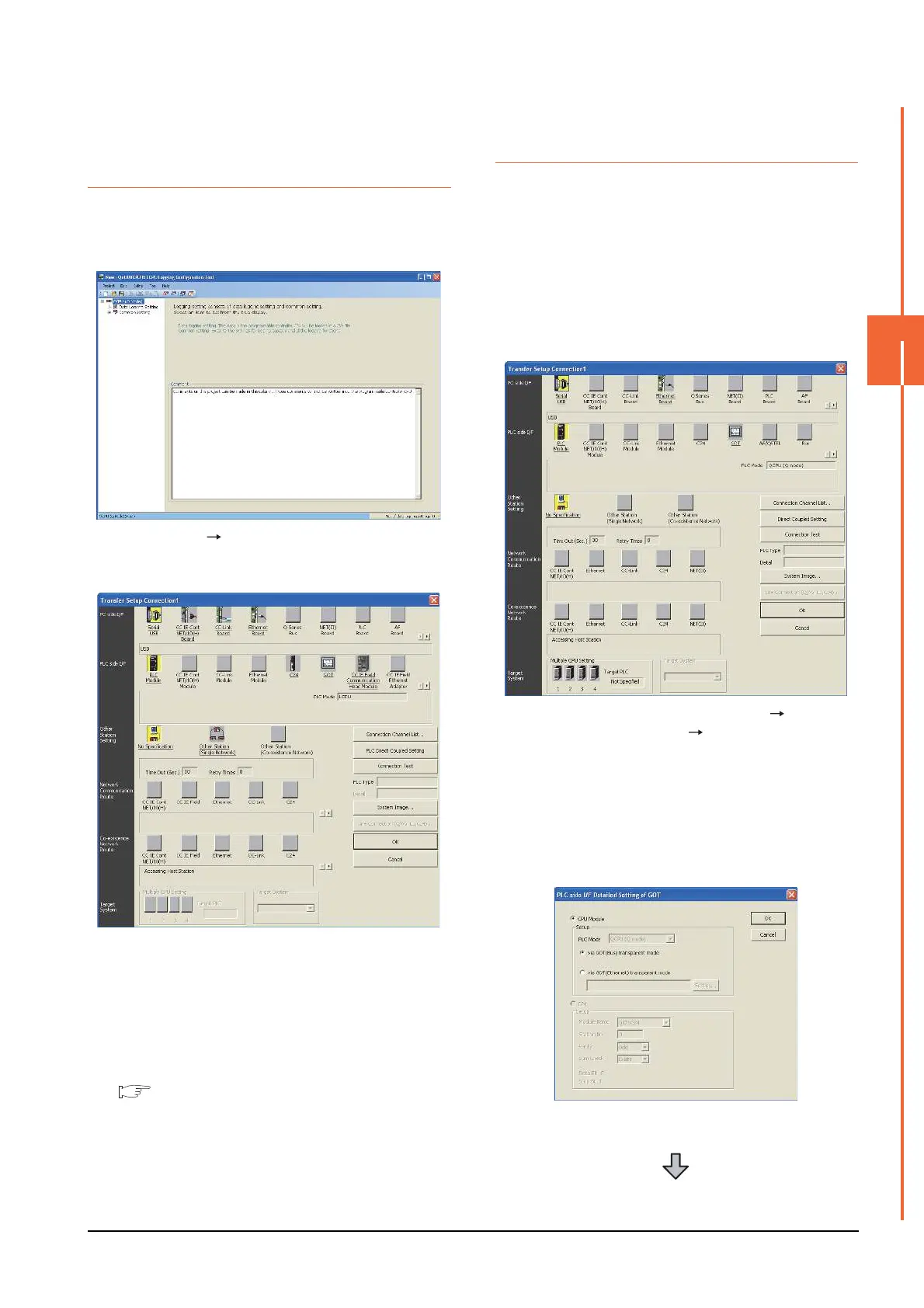

The following shows the procedure to set the FA
transparent function of QnUDVCPU•LCPU Logging
Configuration Tool .
20.6.16 Accessing by Setting/ Monitoring
tool for C Controller module
The following shows the procedure to set the FA
transparent function of Setting/Monitoring tool for C
Controller module with the C Controller module
(Q24DHCCPU-V) connected.
When connecting the GOT and personal
computer with USB
(1) When connecting the GOT and PLC in bus
connection
1. Click [Online] [Transfer Setup...].
2. The [Transfer Setup] is displayed.
3. Set the [Transfer Setup]:
PC side I/F : Serial USB
PLC side I/F : GOT
Other Station Setting : No specification
4. Set [PC side I/F Serial Setting] and [PLC side I/F
Detailed Setting of GOT] in [Transfer Setup]. For
details, refer to the following.
20.6.2 Accessing by GX Works2
1. Click the Connection Destination view
[Connection Destination] [(Connection target
data name)] in the Navigation window of MT Setting/
Monitoring tool for C Controller module.
2. The [Transfer Setup] is displayed.
3. Set the [Transfer Setup]:
PLC side I/F : GOT
Other station : No specification
4. Double-click [GOT] of the CPU side I/F to display
[CPU side I/F Detailed Setting of GOT].
