12. CC-Link CONNECTION (INTELLIGENT DEVICE STATION)

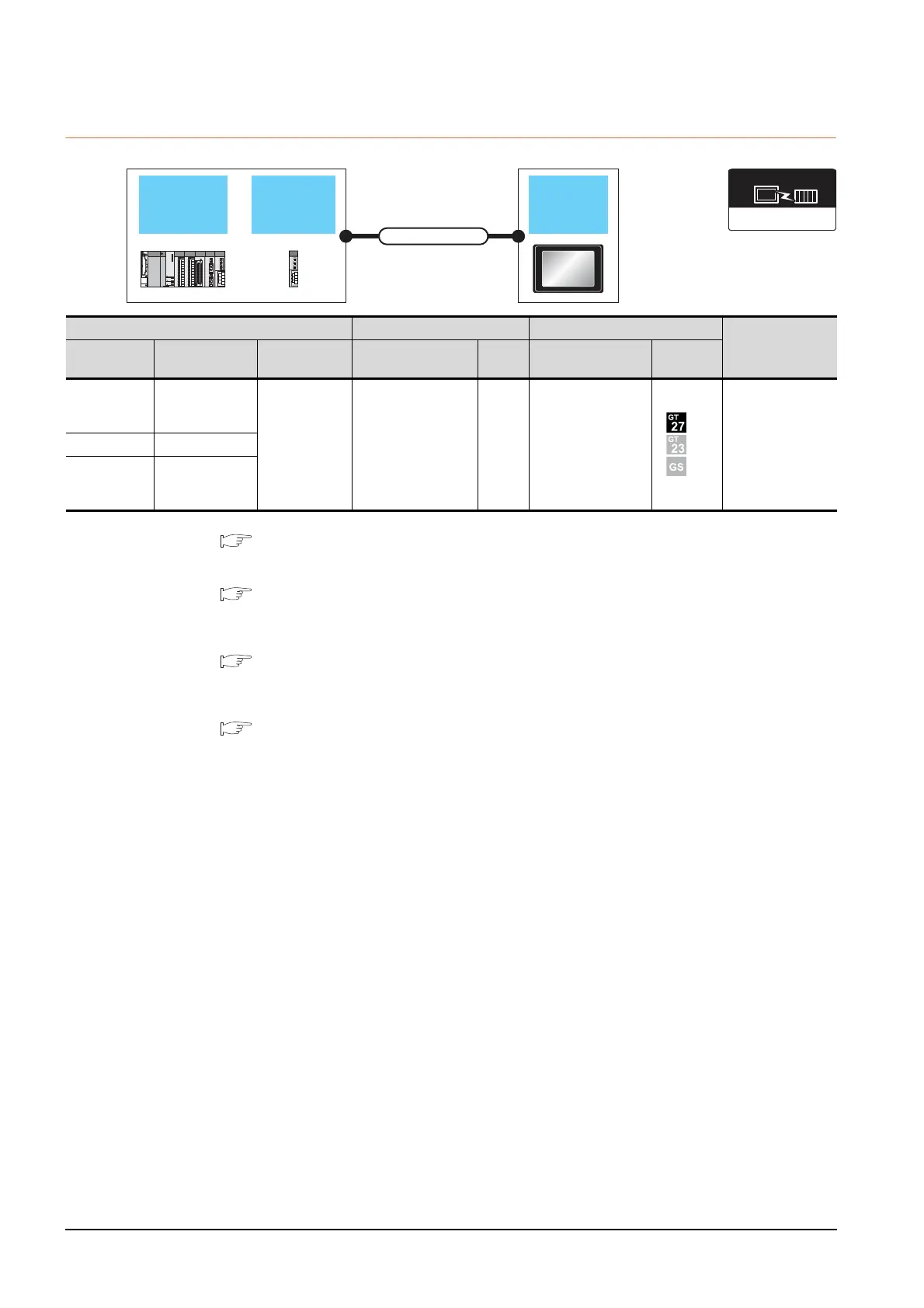

12.2 System Configuration
12.2.2 Connecting with CC-Link Ver.2 compatible
*1 For the system configuration of the CC-Link module, refer to the following manual.
CC-Link System Master/Local Module User's Manual QJ61BT11N
MELSEC-L CC-Link System Master/Local Module User's Manual
*2 For the specifications and inquiries of the CC-Link dedicated cable, refer to the following.
CC-Link Partner Association's home page: http://www.cc-link.org/
*3 The maximum overall extension cable length and the length between stations vary depending on the cable type to be used and
the transmission speed.
For details, refer to the following manual.
CC-Link System Master/Local Module User's Manual QJ61BT11N
MELSEC-L CC-Link System Master/Local Module User's Manual
*4 Specify Ver.2 as the mode setting in the Communication Settings to use it.
For details of the settings, refer to the following the manual.
12.3.1 Setting communication interface (Communication settings)
CC-Link
module
PLC
GOT
Connection cable
CC-Link Ver2(ID)
Communication driver
PLC Connection cable GOT
Number of
connectable
equipment
Model name
CC-Link module
*1
Communication
type
Cable model
Max.
distance
Option device Model
MELSEC-Q
C Controller
module
QJ61BT11N
CC-Link (Ver.2)
CC-Link dedicated
cable
*2
*3
GT15-J61BT13
*4
26 GOTsMELSEC-L LJ61BT11
MELSEC-L
(L26CPU-BT)
(L26CPU-PBT)
-

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
