14. INVERTER CONNECTION
14.2 System Configuration
14.2.3 Connecting to FREQROL-E700/sensorless servo (FREQROL-E700EX)

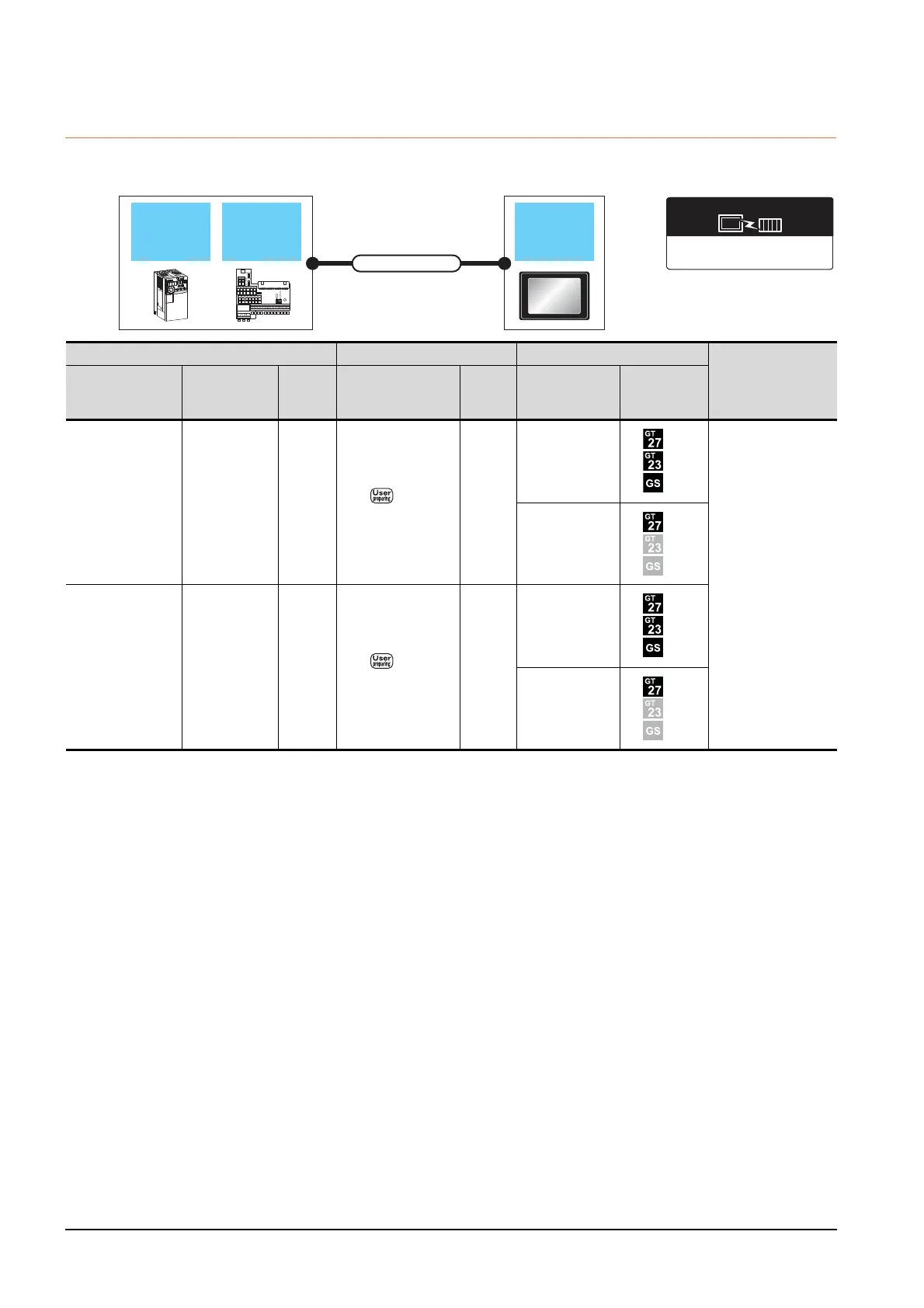

 When connecting to one inverter
*2 Connect to the PU port of the inverter.
*3 The control terminal option and the PU port cannot be used at the same time.
FREQROL 500/700/800,
SENSORLESS SERVO
Communication driver
Control
terminal
option
GOT
Connection cable
Inverter
Sensorless
servo
Inverter Connection cable GOT
Number of connectable
equipment
Model name
Control terminal
option
Commun
ication
type
Connection diagram
number
Max.
distance
Option device Model
FREQROL-E700/
sensorless servo
(FREQROL-E700EX)
*2
- RS-485
RS485
connection diagram 1)
500m
- (Built into GOT)
1 GOT for 1 inverter
GT15-RS4-9S
FREQROL-E700/
sensorless servo
(FREQROL-E700EX)
*3
FR-E7TR
*3
RS-485
RS485
connection diagram 7)
500m
- (Built into GOT)
GT15-RS4-9S
