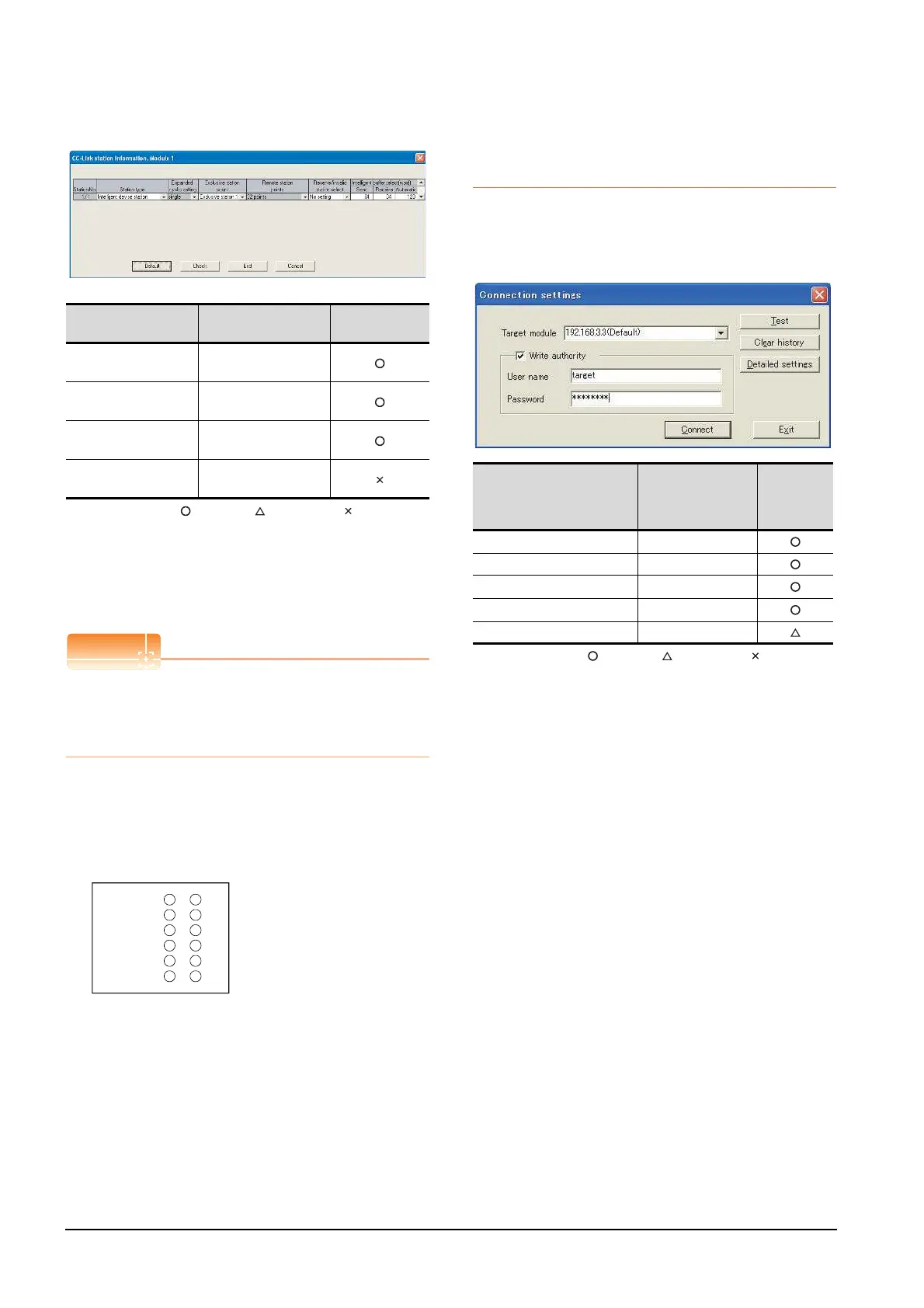

13 - 16
13. CC-Link CONNECTION (Via G4)
13.5 PLC Side Settings
(2) Station information setting
: Necessary : As necessary : Not necessary
*1 When the [Mode] of the CC-Link module is set at [Remote
net - (Ver. 2 mode)], [Remote station points] can be set.
[Remote station points] is a setting for the remote I/O station.
The default value (32 points) must be used on the GOT.
*2 When the [Mode] of the CC-Link module is set at [Remote
net - (Ver. 2 mode)] or [Remote net - Additional mode], set to
[Ver. 1 Intelligent device station].
When changing the network parameter
After writing the network parameter to the PLC CPU,
operate the PLC CPU ether turning OFF and then ON
or resetting.
(3) Completion confirmation
After initial communications of CC-Link are completed,
the L RUN LED of AJ65BT-G4-S3 turns on.
The GOT starts to monitor after the L-RUN LED of
AJ65BT-G4-S3 turns on.
It does not monitor while the L RUN LED turns off.
13.5.5 Parameter setting (when
connecting to C Controller
module)
Use SW3PVC-CCPU-E Ver.3.05F or later for the C
Controller module setting utility.
(1) Connection settings
: Necessary : As necessary : Not necessary
*1 If the IP address of the C Controller module has been
changed, input the changed IP address or host name.
*2 If the account of the C Controller module has been changed,
input the changed user name and password.
Item
*1
Set value
Setting necessity
at GOT connection
Station type
*2
Intelligent device
station (fixed)
Number of stations
occupied
Exclusive station 1 (fixed)
Reserve/invalid station
select
No setting
Intelligent buffer select
(word)
(Use default value)
Item Set value
Setting
necessity
at GOT
connection
Target module
*1
192.168.3.3
Write authority Mark the checkbox
User name
*2
target
Password
*2
password
Detailed settings -
To Next Page
