Mitsubishi GOT2000 Series Connection Manual

6. DIRECT CONNECTION TO CPU
6.2 System Configuration
6 - 7
6
DIRECT CONNECTION TO CPU

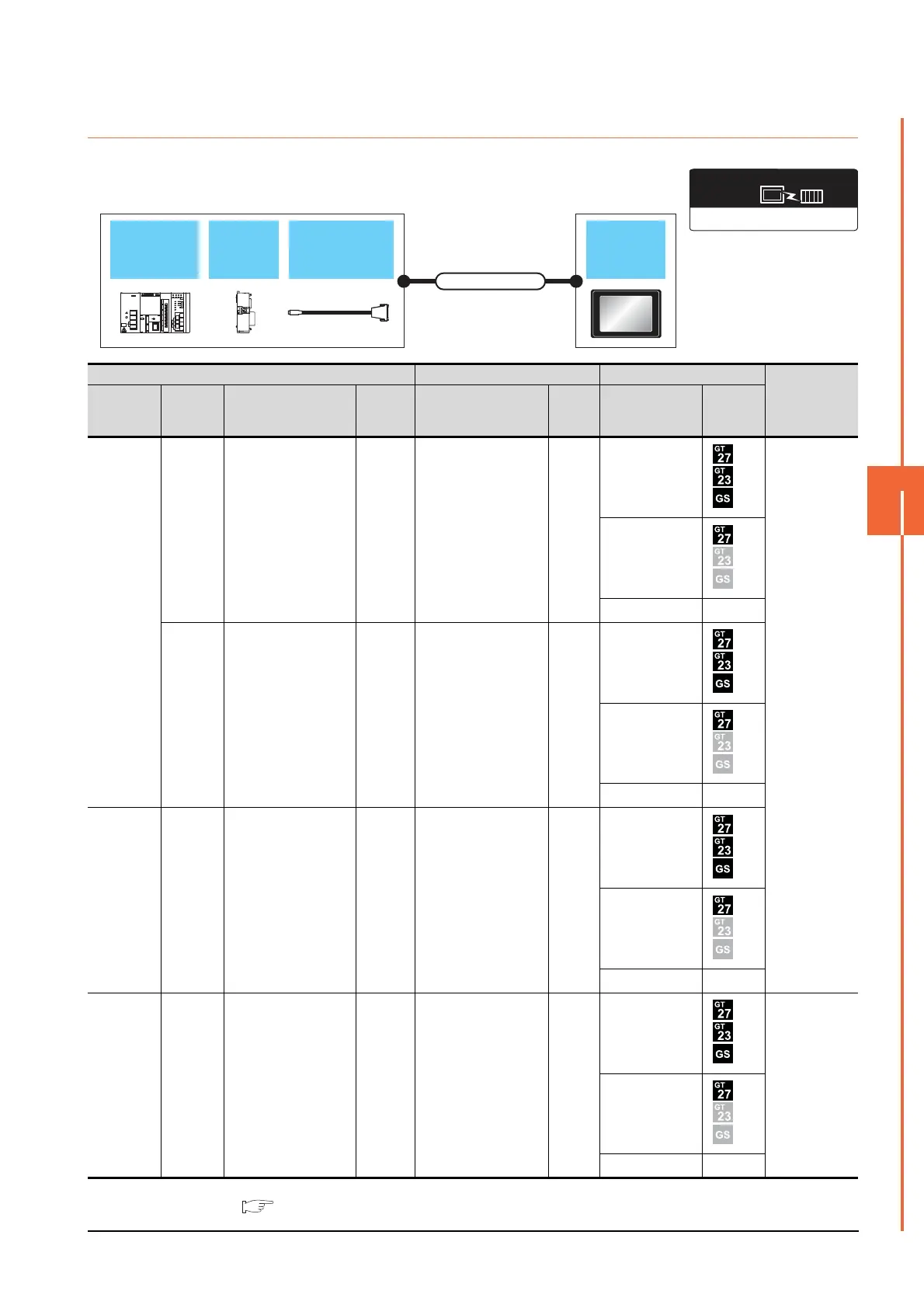

6.2.2 Connecting to LCPU
*1 For details of the GOT multi-drop connection, refer to the following.
18. GOT MULTI-DROP CONNECTION
RS-422 connector
conversion cable
LCPU Adapter GOT
Connection cable
Q/L/QnA/A CPU, QJ71C24, LJ71C24
Communication driver
PLC Connection cable GOT
Number of
connectable
equipment
Model name Adapter
RS-422 connector
conversion cable
Communi
cation
type
Cable model
Max.
distance
Option device Model
L02CPU
L06CPU
L26CPU
L26CPU-BT
L02CPU-P
L06CPU-P
L26CPU-P
L26CPU-PBT
L6ADP-R2 - RS-232 GT01-C30R2-6P(3m) 3m
- (Built into GOT)
1 GOT for 1 PLC
GT15-RS2-9P
GT01-RS4-M
*1
-
L6ADP-R2
FA-CNV2402CBL(0.2m)
FA-CNV2405CBL(0.5m)
RS-422
GT01-C30R4-25P(3m)
GT01-C100R4-25P(10m)
GT01-C200R4-25P(20m)
GT01-C300R4-25P(30m)
30m
- (Built into GOT)
GT15-RS4-9S
GT01-RS4-M
*1
-
L02SCPU
L02SCPU-P
- - RS-232 GT01-C30R2-6P(3m) 3m
- (Built into GOT)
GT15-RS2-9P
GT01-RS4-M
*1
-
L02SCPU
L02SCPU-P
-
FA-CNV2402CBL(0.2m)
FA-CNV2405CBL(0.5m)
RS-422
GT01-C30R4-25P(3m)
GT01-C100R4-25P(10m)
GT01-C200R4-25P(20m)
GT01-C300R4-25P(30m)
3m
- (Built into GOT)
1 GOT for 1 PLC
GT15-RS4-9S
GT01-RS4-M
*1
-

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
