20. FA TRANSPARENT FUNCTION
20.4 System Configuration

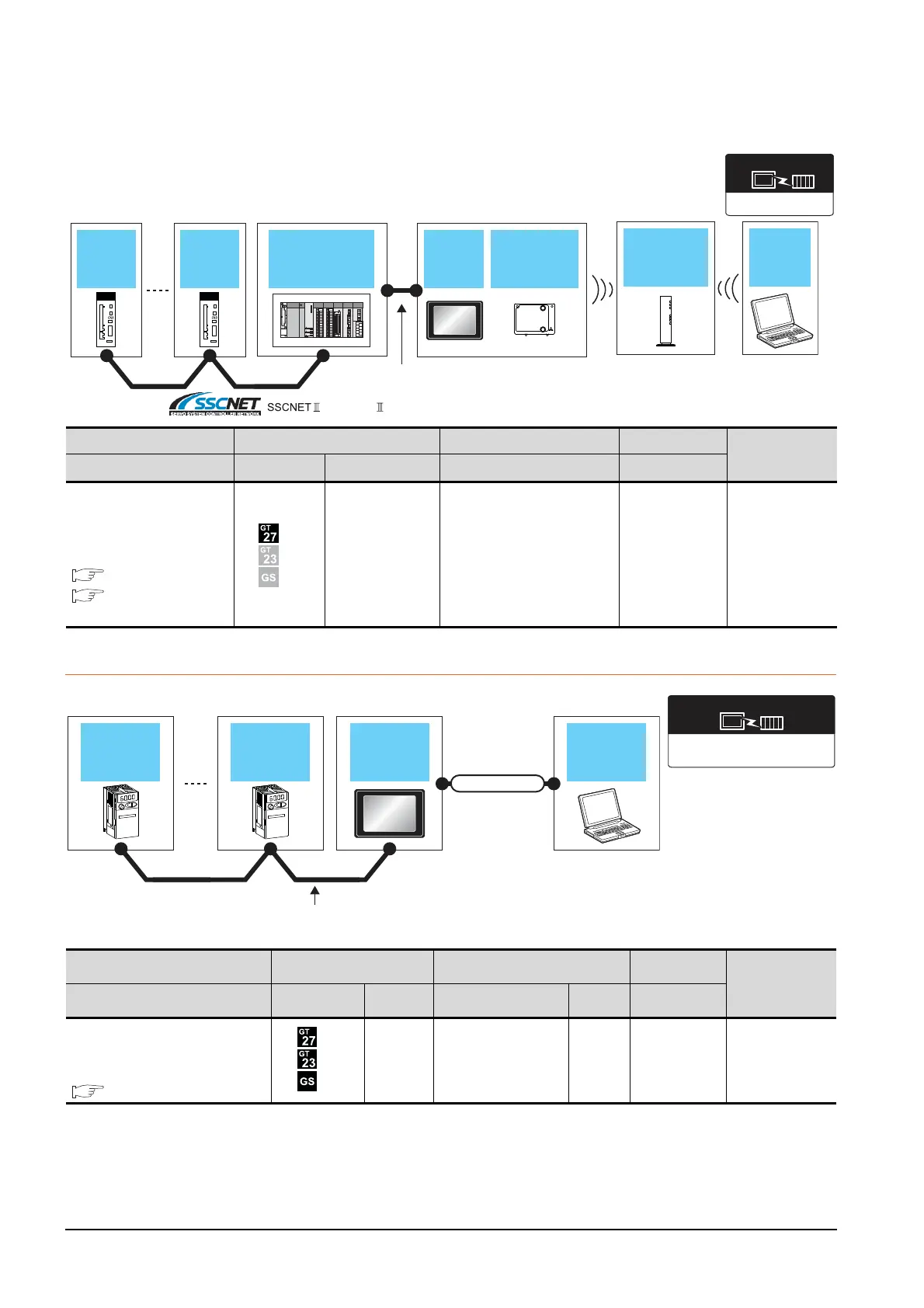

 When connecting the GOT and the personal computer by wireless LAN
*1 LCPU is not applicable to the bus connection.
20.4.5 FR Configurator
Connection type
dependant
Communication driver
Wireless LAN
access point
GOT
Servo
amplifier
PC
Varies according to
the connection type.
, SSCNET /H
Servo
amplifier
Wireless LAN
Communication
Unit
QCPU +
Motion controller
CPU (Q series)
PLC GOT
Wireless LAN access point
Personal computer
Number of
connectable
equipment
Connection type Model Option device Model name Software
For the system configuration
between
the GOT and PLC, refer to the
following.
BUS CONNECTION
*1
DIRECT CONNECTION
TO CPU
GT25-WLAN
For the wireless LAN access point,
use the access point compatible
with IEEE802.11b/g/n.
MR Configurator2
1 personal
computer for 1 GOT
Inverter GOT
Varies according to
the connection type.
Inverter
PC
Connection cable
FREQROL 500/700/800,
SENSORLESS SERVO
Communication driver
Inverter GOT Connection cable
Personal
computer
Number of
connectable
equipment
Connection type Model Interface Cable model
Max.
distance
Software
For details on the system configuration
between GOT and Mitsubishi inverter,
refer to the following.
INVERTER CONNECTION
USB
GT09-C30USB-5P(3m)
GT09-C20USB-5P(2m)
3m FR Configurator
1 personal
computer for 1 GOT

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
