Mitsubishi GOT2000 Series Connection Manual

17. CNC CONNECTION
17.3 Connection Diagram
17 - 7
17
CNC CONNECTION
17.3 Connection Diagram
The following diagram shows the connection between the
GOT and the CNC.
17.3.1 RS-232 cable

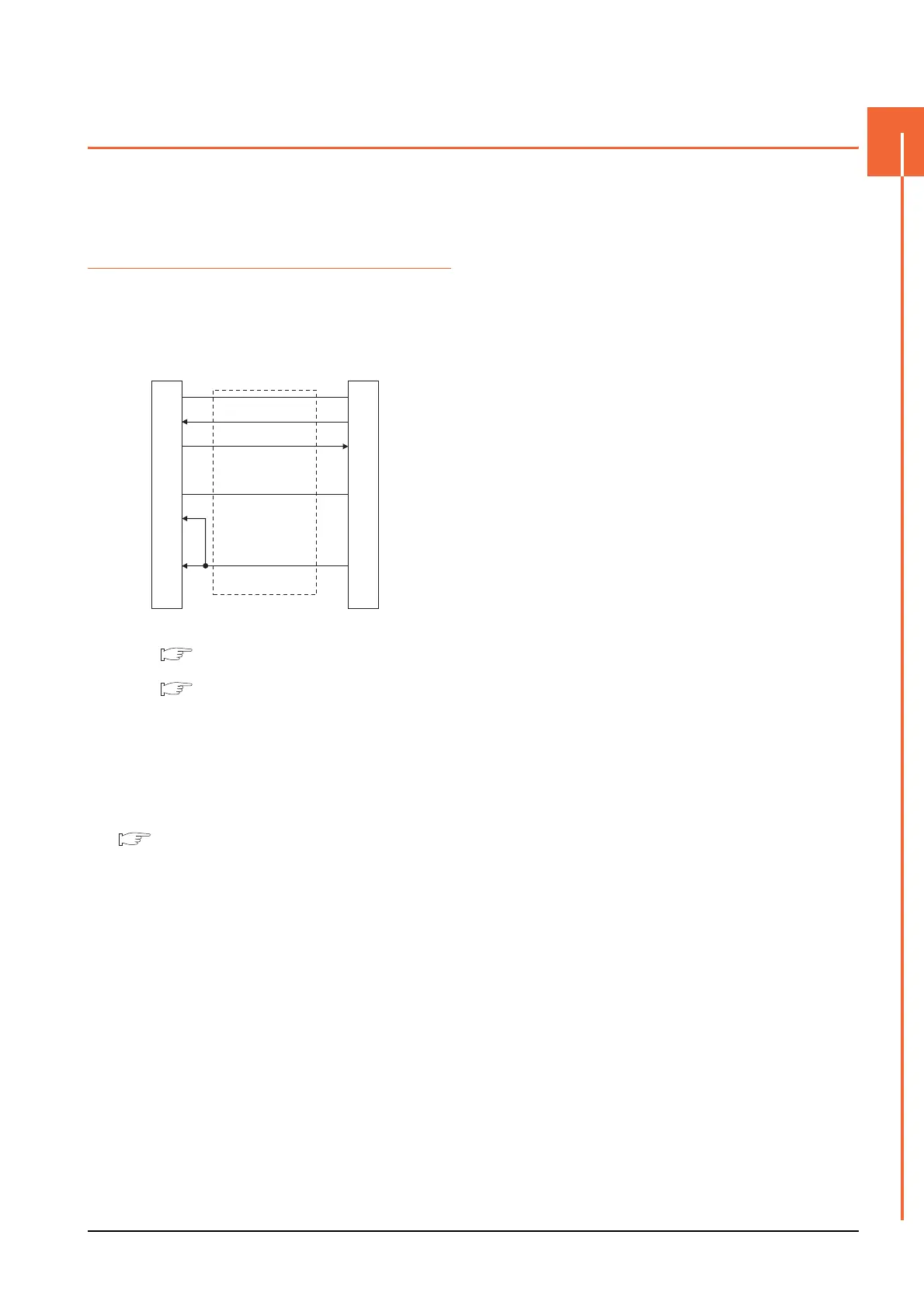

 Connection diagram
(1)RS232connectiondiagram1)
*1 For details of the MELDAS C6/C64 side connection, refer to
the following manuals.
MELDAS C6/C64 CONNECTION AND
MAINTENANCE MANUAL BNP-B2255
MELDAS C6/C64 NETWORK MANUAL BNP-B2373
 Precautions when preparing a cable
(2) Cable length
The length of the RS-232 cable must be 15m or less.
(3) GOT side connector
For the GOT side connector, refer to the following.
1.4.1 GOT connector specifications
MELDAS C6/C64 side*1
(20 pin half pitch)
CD
RD(RXD)
SD(TXD)
ER(DTR)
SG
DR(DSR)
RS(RTS)
CS(CTS)
-
GND
SD
RD
-
GND
-
-
ER(DTR)
-
1
2
3
4
5
6
7
8
9
1
6
16
-
11
-
-
18
-
GOT side

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
