Mitsubishi GOT2000 Series Connection Manual

5. ETHERNET CONNECTION
5.4 PLC Side Setting
5 - 37
5
ETHERNET CONNECTION

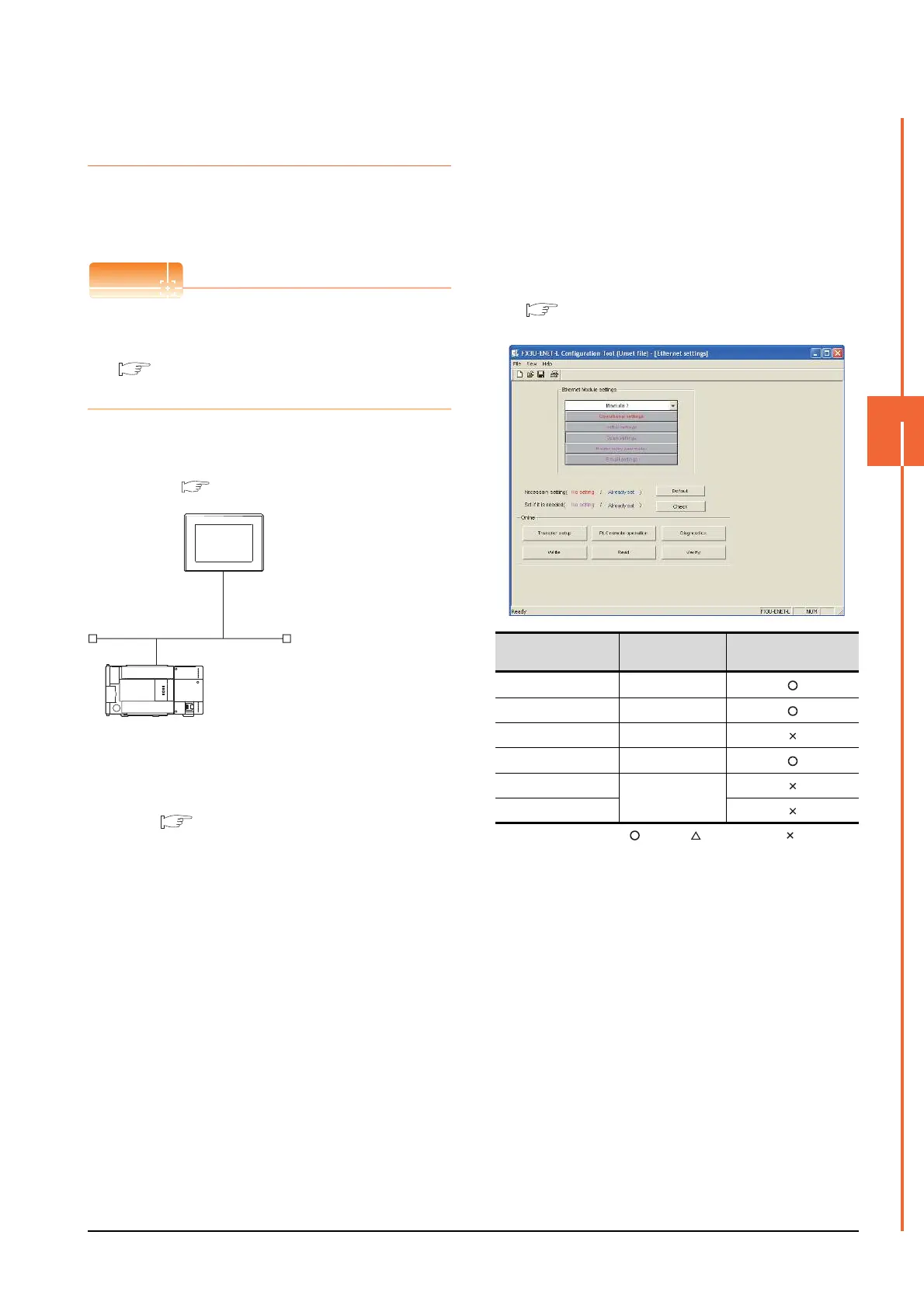

5.4.7 Connecting to Ethernet
module (FX Series)
This section describes the settings of the GOT and
Ethernet module (FX Series) in the following case of the
system configuration.
POINTPOINTPOINT
Ethernet module (FX Series)
For details of the Ethernet module (FX Series), refer to
the following manual.
FX
3U-ENET-L User's manual
FX3U-ENET-ADP User's manual
 System configuration
*1 These setting items do not exist at the PLC side. However,
the virtual values must be set on the GOT side.
■ [Controller Setting] and [Ethernet] of GT
Designer3
 Ethernet parameter settings of FX3U-
ENET-L Configuration tool
(1) Ethernet settings
Set the Ethernet parameter with FX 3U -ENET-L
Configuration tool.
For using FX3U-ENET-L Configuration tool, install GX
Developer Ver. 8.88S or later on the personal computer.
For details on FX3U-ENET-L Configuration tool, refer to
the following manual.
FX3U-ENET-L Configuration tool
:Required :Set if necessary :Not required
*1 Set the number of the Ethernet module.
<GOT>
(The settings other than the
following are set to the default)
PLC No. : 1
IP address
: 192.168.0.18
Port No.
: 5019
Communication
format
: TCP (fixed)
PC No.
: 2 (virtual)
Network No.
: 1 (virtual)
IP address
: 192.168.0.19
Port No.
: 5556 (fixed)
Communication
format
: TCP (fixed)
<Ethernet module> (The settings other than the
following are set to the default)
*1
*1
[Controller Setting] and [Ethernet] of GT
Designer3
■
■ Ethernet parameter settings of FX3U-ENET-L Configuration tool
Item Setting
Setting
(with GOT connected)
Module
Module 0
*1
Operational settings Refer to (2)
Initial settings (Use default value.)
Open settings Refer to (3)
Router relay parameter
(Use default value.)
E-mail settings
