Mitsubishi GOT2000 Series Connection Manual

20. FA TRANSPARENT FUNCTION
20.4 System Configuration
20 - 29
20
FA TRANSPARENT FUNCTION
20.4.6 FX Configurator-FP, FX3U-ENET-L Configuration tool
20.4.7 RT ToolBox2
*1 CRnD-700 is not applicable to the bus connection, the direct CPU connection.
GOT
PC
PLC
Varies according to the connection type.
Connection cable
MELSEC-FX
Communication driver
PLC GOT Connection cable Personal computer
Number of
connectable
equipment
Connection type Model Interface Cable model
Max.
distance
Software

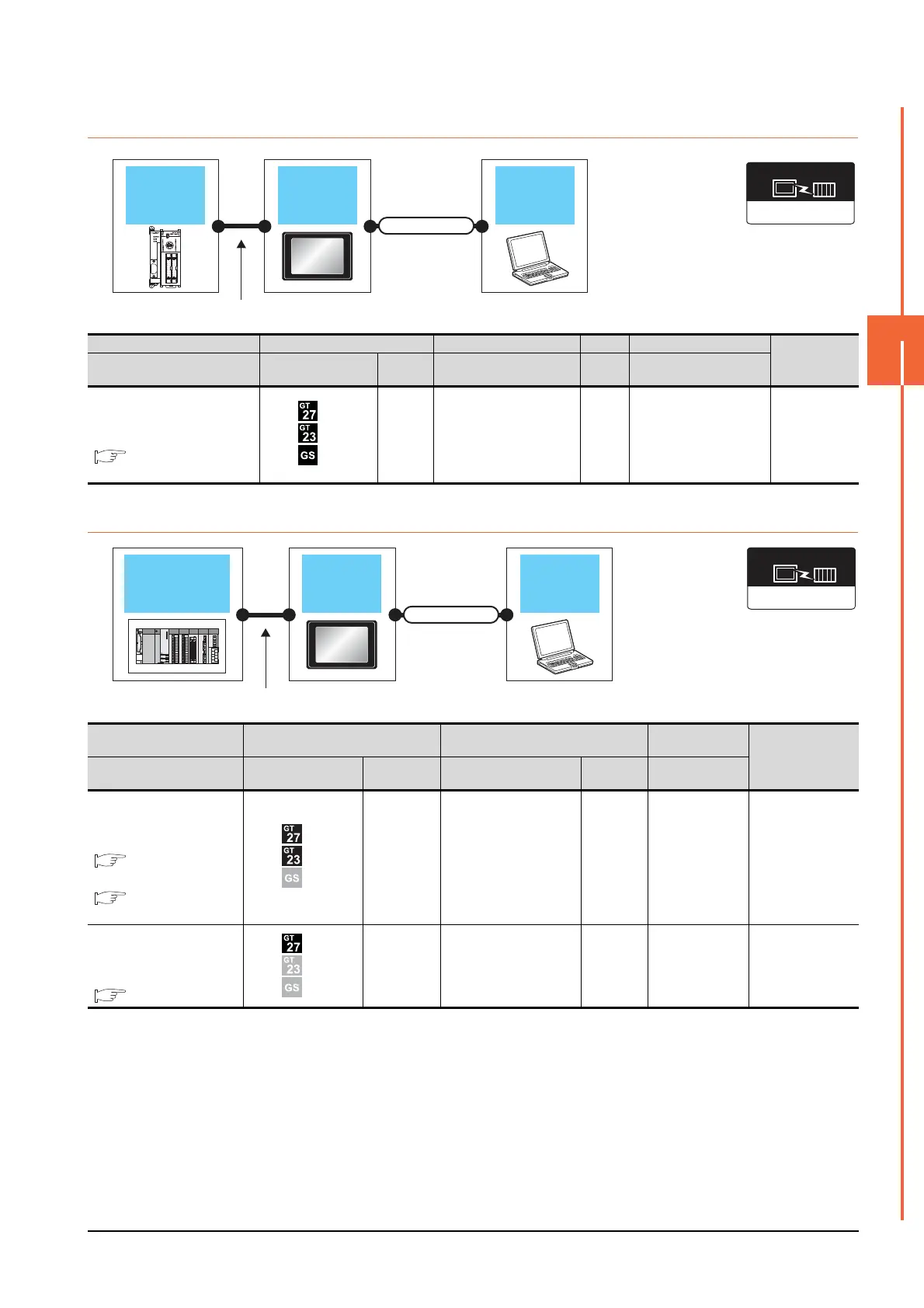

For the system configuration
between the GOT and PLC, refer
to the following.
DIRECT CONNECTION
TO CPU
USB
GT09-C30USB-5P(3m)
GT09-C20USB-5P(2m)
3m
FX Configurator-FP,
FX3U-ENET-L
Configuration tool
1 personal
computer for 1
GOT
GOT
PC
Connection cable
CRnQ-700
CRnD-700
Varies according to the connection type.
Connection type
dependant
Communication driver
PLC GOT Connection cable
Personal
computer
Number of
connectable
equipment
Connection type Model Interface Cable model
Max.
distance
Software
For the system configuration
between the GOT and PLC,
refer to the following.
DIRECT
CONNECTION TO CPU
*1
ETHERNET
CONNECTION
USB
GT09-C30USB-5P(3m)
GT09-C20USB-5P(2m)
3m RT ToolBox2
1 personal
computer for 1 GOT
For the system configuration
between the GOT and PLC,
refer to the following.
BUS CONNECTION
*1
USB
GT09-C30USB-5P(3m)
GT09-C20USB-5P(2m)
3m RT ToolBox2
1 personal
computer for 1 GOT
