Mitsubishi GOT2000 Series Connection Manual

7. COMPUTER LINK CONNECTION
7.2 System Configuration
7 - 9
7
COMPUTER LINK CONNECTION

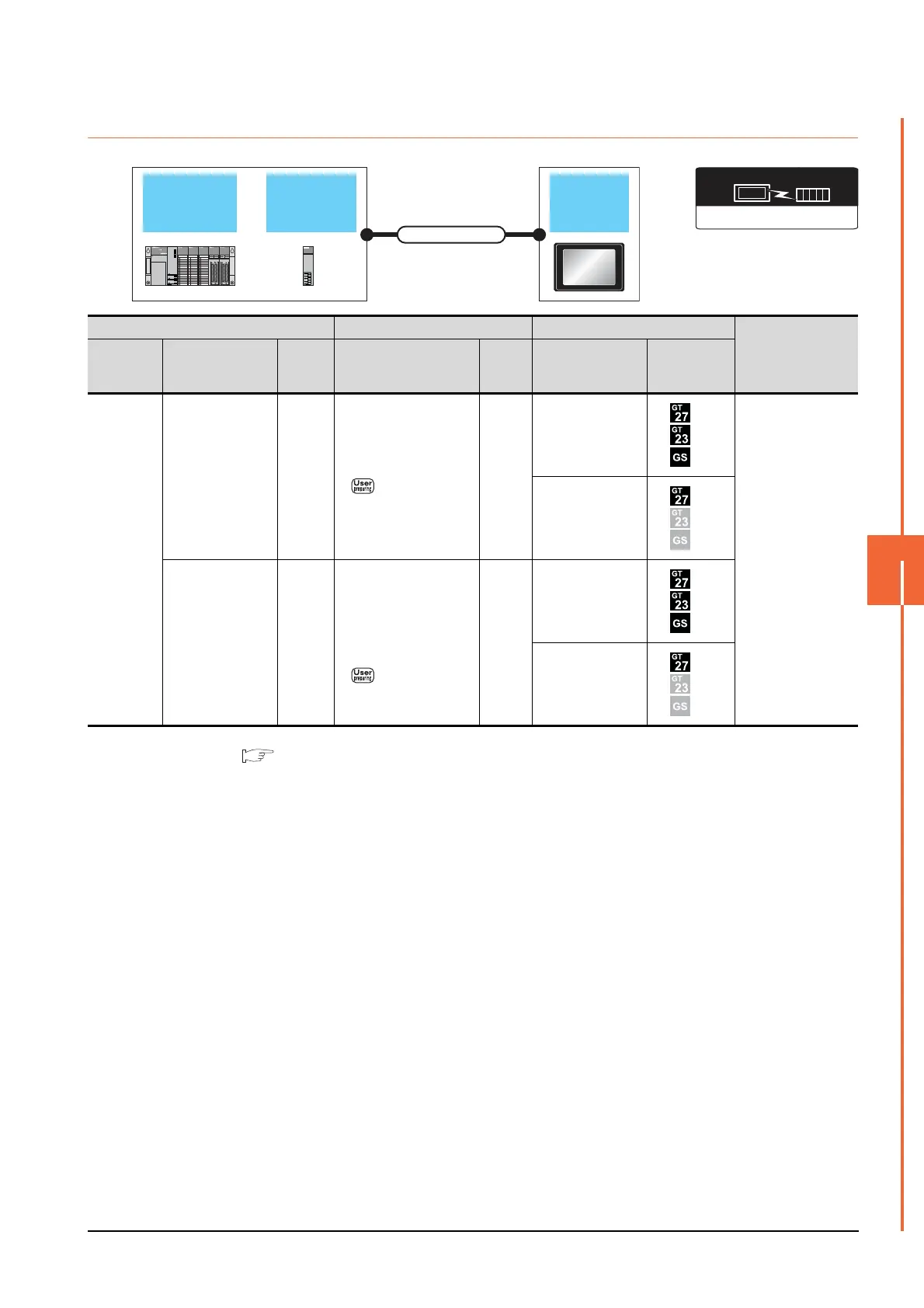

7.2.3 Connecting to QCPU (A mode)
*1 For the system configuration on the computer link module side, refer to the following manual.
Computer Link Module (Com. link func./Print. func.) User’s Manual
Computer
link module
QCPU
(A mode)
GOT
Connection cable
Communication driver
Q/L/QnA/A CPU, QJ71C24, LJ71C24
PLC Connection cable GOT
Number of
connectable
equipment
Model name
Computer link
module
*1
Commun
ication
type
Cable model
Max.
distance
Option device Model
MELSEC-Q
(A mode)
A1SJ71UC24-R2
A1SJ71C24-R2
A1SJ71UC24-PRF
A1SJ71C24-PRF
RS-232
GT09-C30R2-9P(3m)
or
RS232 connection
diagram 1)
15m
- (Built into GOT)
1 GOT for 1 computer
link module
GT15-RS2-9P
A1SJ71UC24-R4
A1SJ71C24-R4
RS-422
GT09-C30R4-6C(3m)
GT09-C100R4-6C(10m)
GT09-C200R4-6C(20m)
GT09-C300R4-6C(30m)
or
RS422 connection
diagram 1)
500m
- (Built into GOT)
GT15-RS4-9S

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
