8 - 32
8. BUS CONNECTION

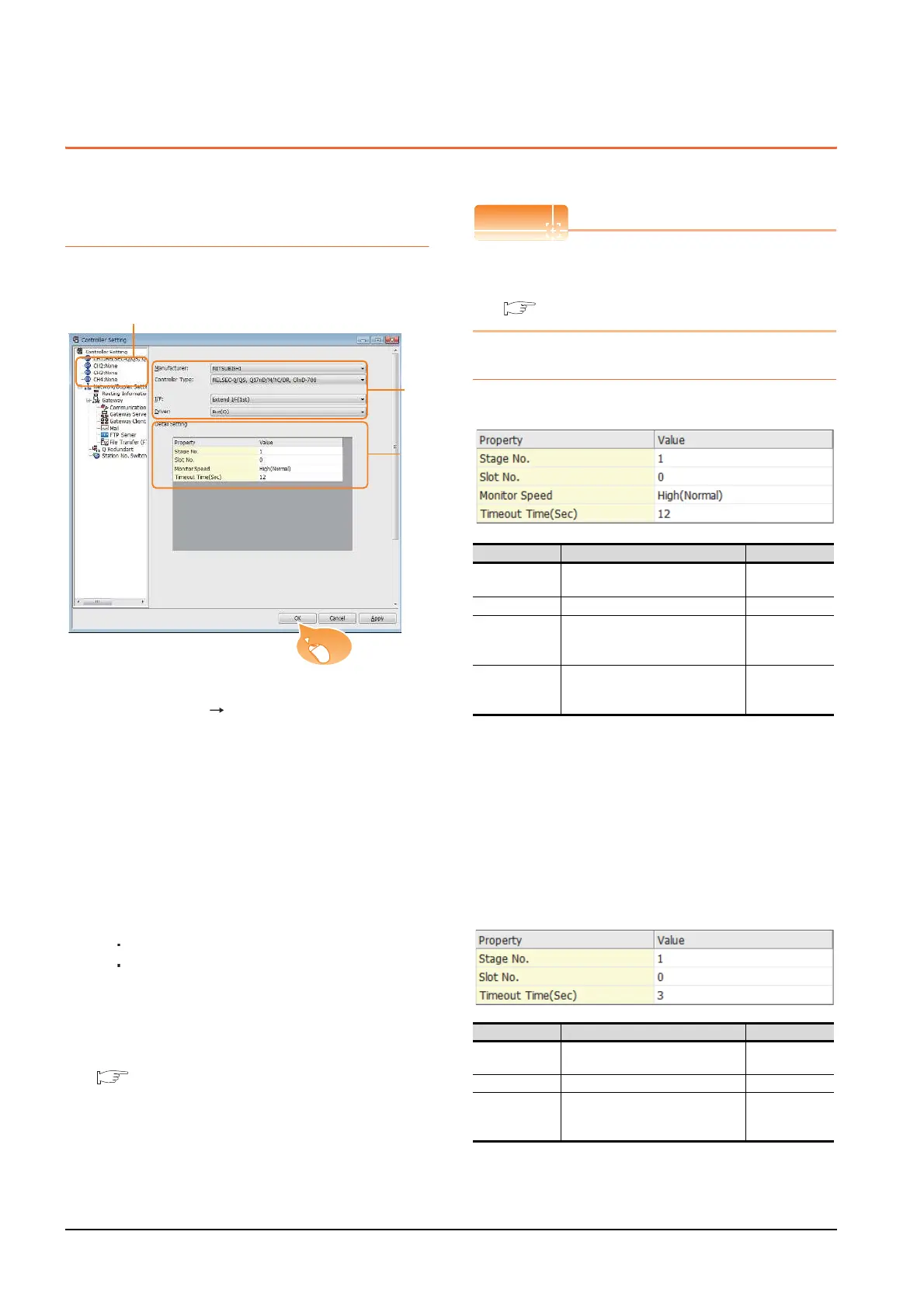

8.3 GOT Side Settings
8.3 GOT Side Settings
8.3.1 Setting communication
interface (Communication
settings)
Set the channel of the connected equipment.
1. Select [Common] [Controller Setting] from the
menu.
2. The Controller Setting window is displayed. Select the
channel to be used from the list menu.
3. Set the following items.
Manufacturer: Mitsubishi
Controller Type: Set the option according to the
Controller Type to be connected.
I/F: Interface to be used
Driver: Set either of the following option according
to the Controller Type to be connected.
BUS (Q)
BUS (A/QnA)
4. The detailed setting is displayed after Manufacturer,
Controller Type, I/F, and Driver are set.
Make the settings according to the usage
environment.
8.3.2 Communication detail settings
Click the [OK] button when settings are completed.
POINTPOINTPOINT
The settings of connecting equipment can be
confirmed in [I/F Communication Setting].
For details, refer to the following.
1.1.2 I/F communication setting
8.3.2 Communication detail settings
(1) Bus(Q)
*1 This range is effective when collecting a large amount of
data (such as logging and recipe function) on other than the
monitor screen.
However, the range may affect the sequence scan time
when connecting to Q00UJ/Q00U/Q01U/Q02UCPU or Q00J/
Q00/Q01CPU.
If you want to avoid the influence on the sequence scan time,
do not set [High(Normal)].
(This setting hardly affects QCPUs other than the above.)
*2 Set this range if you want to avoid the influence on the
sequence scan time further than the [Middle] setting when
connecting to Q00UJ/Q00U/Q01U/Q02UCPU or Q00J/Q00/
Q01CPU.
However, the monitor speed may be reduced.
(2) Bus(A/QnA)
2.
3.
4.
Click!
Item Description Range
Number of
Stages
(Default: 1) 1 to 7
Slot No. (Default: 0) 0 to 9
Monitor Speed
Set the monitor speed of the GOT.
This setting is not valid in all systems.
(Default: Normal)
High (Normal)
*1
/
Middle/Low
*2
Timeout Time
(Sec.)
Set the time period for a
communication to time out.
(Default: 12)
12 to 90
Item Description Range
Number of
Stages
(Default: 1) 1 to 7
Slot No. (Default: 0) 0 to 7
Timeout Time
(Sec.)
Set the time period for a
communication to time out.
(Default: 3)
3 to 90
