11. CC-Link IE FIELD NETWORK CONNECTION

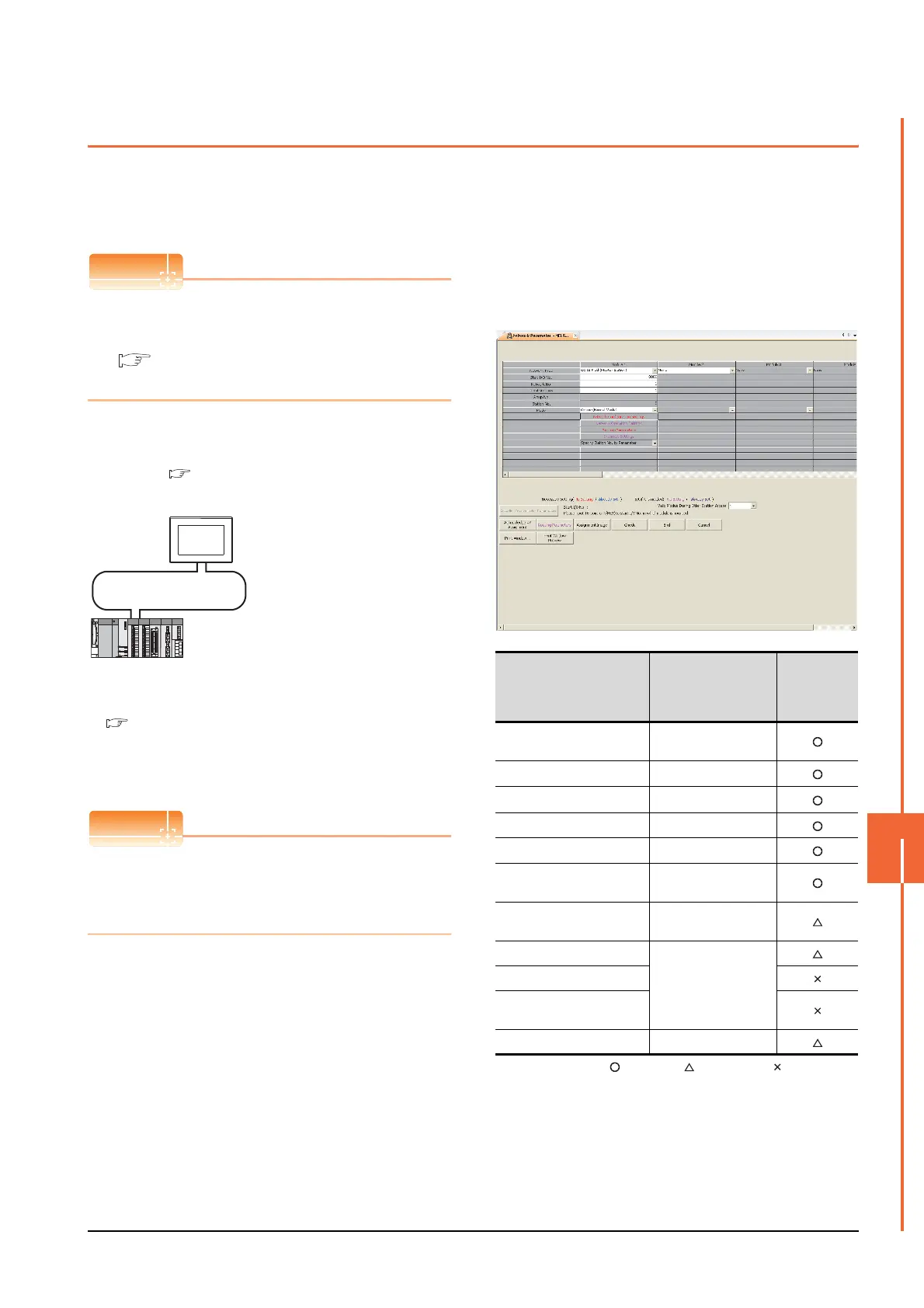

11.4 PLC Side Setting
11 - 11
CC-Link IE FIELD NETWORK CONNECTION
11
11.4 PLC Side Setting
This section describes the settings of the GOT and CC-
Link IE controller network module in the following case of
system configuration.
POINTPOINTPOINT
CC-Link IE Field Network Module
For details of the CC-Link IE Field Network module,
refer to the following manual.
CC-Link IE Field Network Master/Local Module
User's Manual
 System configuration
(Network Type: CC IE Field)
*1 The CC-Link IE Field Network module is mounted on slot 0
of the base unit.
The start I/O No. of the CC-Link IE Field Network module is
set at [0].
POINTPOINTPOINT
When connecting to Q170MCPU or Q170MSCPU(-S1)
When connected to Q170MCPU or Q170MSCPU(-
S1), the start I/O No. of the CC-Link IE Field Network
communication unit is set to "70".
 Parameter settings (Connection to MELSEC-
Q, QS series) of System configuration
(Network Type: CC IE Field)
(1) Network parameter] of GX Works2
Use GX Works2 of Version 1.31H or later.
(a) Network parameter
: Necessary : As necessary : Not necessary
*1 When using Q170MCPU or Q170MSCPU(-S1), set it
according to the system configuration.
*2 Specify the same network No. as that of the GOT.
*3 Set the same mode setting as that of the GOT.
<CC-Link IE Field Network module> *
1
(Use the default value for settings other than the following.)
Station No. : 0 (fixed)
Mode : Online (normal)
Network type : CC IE Field (Master station)
Network No. : 1
Total stations : 1
Network Configuration Settings :
CC-Link IE Field Network
<GOT>
(Use the default value for settings other
than the following.)
RX/RY00H to FFH
RW
W/RWr00H to FFH
Network type : CC IE Field
Network No. : 1
Station No. : 1
Mode Setting : Online
Network Configuration Settings :
Monitor Speed : High
RX/RY00 to FFH
RWW/RWr00 to FFH
■ GT Designer3 [Communication setting] of System
configuration1 (Network Type: CC IE Field)
■ [Network parameter] of GX Works2
Item Set value
Setting
necessity at
GOT
connection
Network type
CC IE Field
(Master station) (fixed)
Starting I/O No.
*1
0000H
Network No.
*2
1
Total stations 1
Station No. 0 (fixed)
Mode
*3
Online
(Normal mode)
Network Configuration
Settings
Refer to (b)
Refresh parameters
(Use default value)
Interrupt settings
Interlink transmission
parameters
Routing parameters Refer to (c)
