14. INVERTER CONNECTION
14.2 System Configuration
14.2.5 Connecting to MD-CX522- K(-A0)

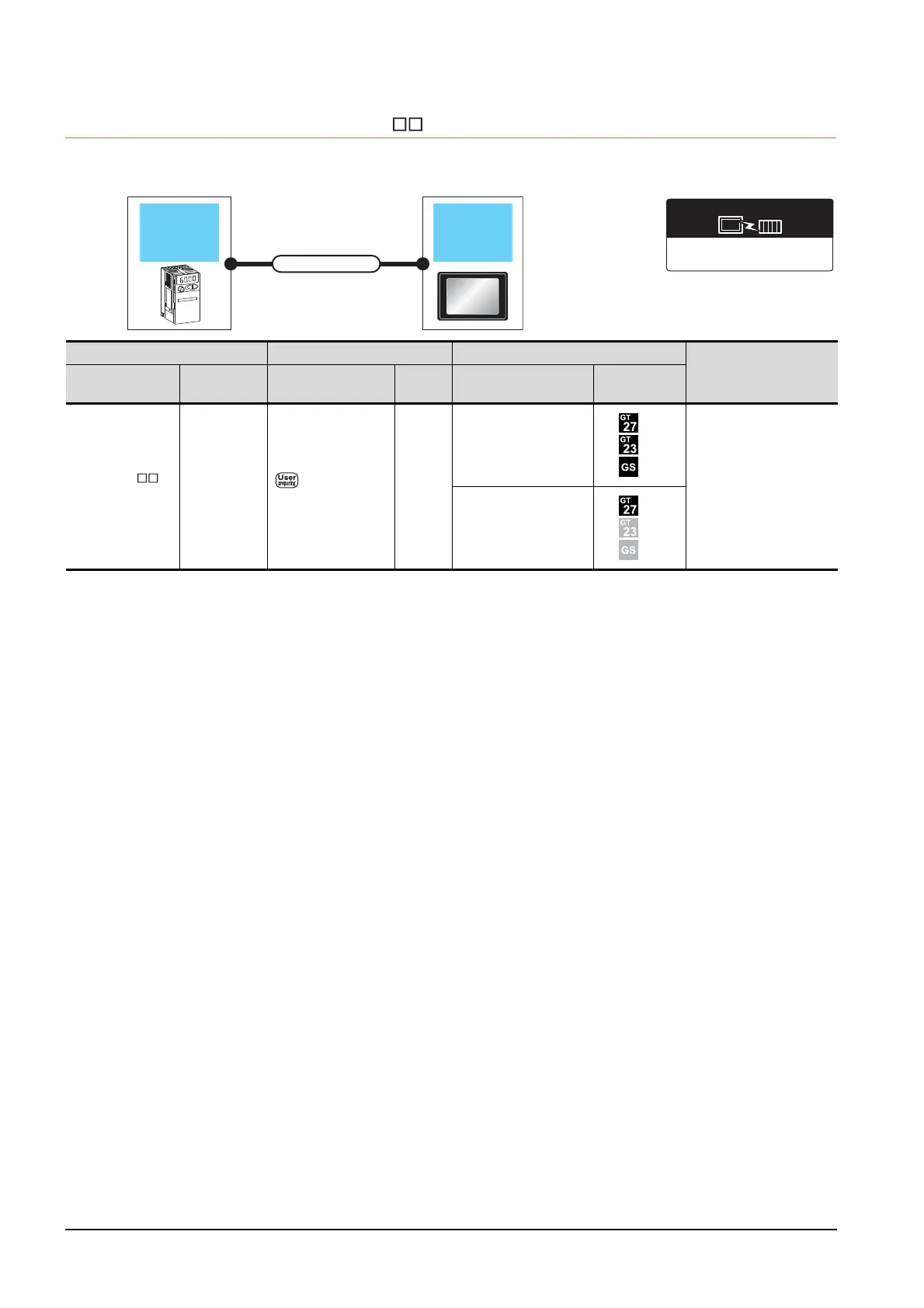

When connecting to one inverter
*1 Connect to the PU port of the inverter.
FREQROL 500/700/800,
SENSORLESS SERVO
Communication driver
Inverter
GOT
Connection cable
Inverter Connection cable GOT
Number of connectable
Model name equipment
Model name
Communication
type
Connection diagram
number
Max.
distance
Option device Model
MD-CX522- K
(-A0)
*1
RS-485
RS485 connection
diagram 1)
20m
- (Built into GOT)
1 GOT for 1 inverter
GT15-RS4-9S
