14. INVERTER CONNECTION
14.2 System Configuration
14 - 13
INVERTER CONNECTION
14

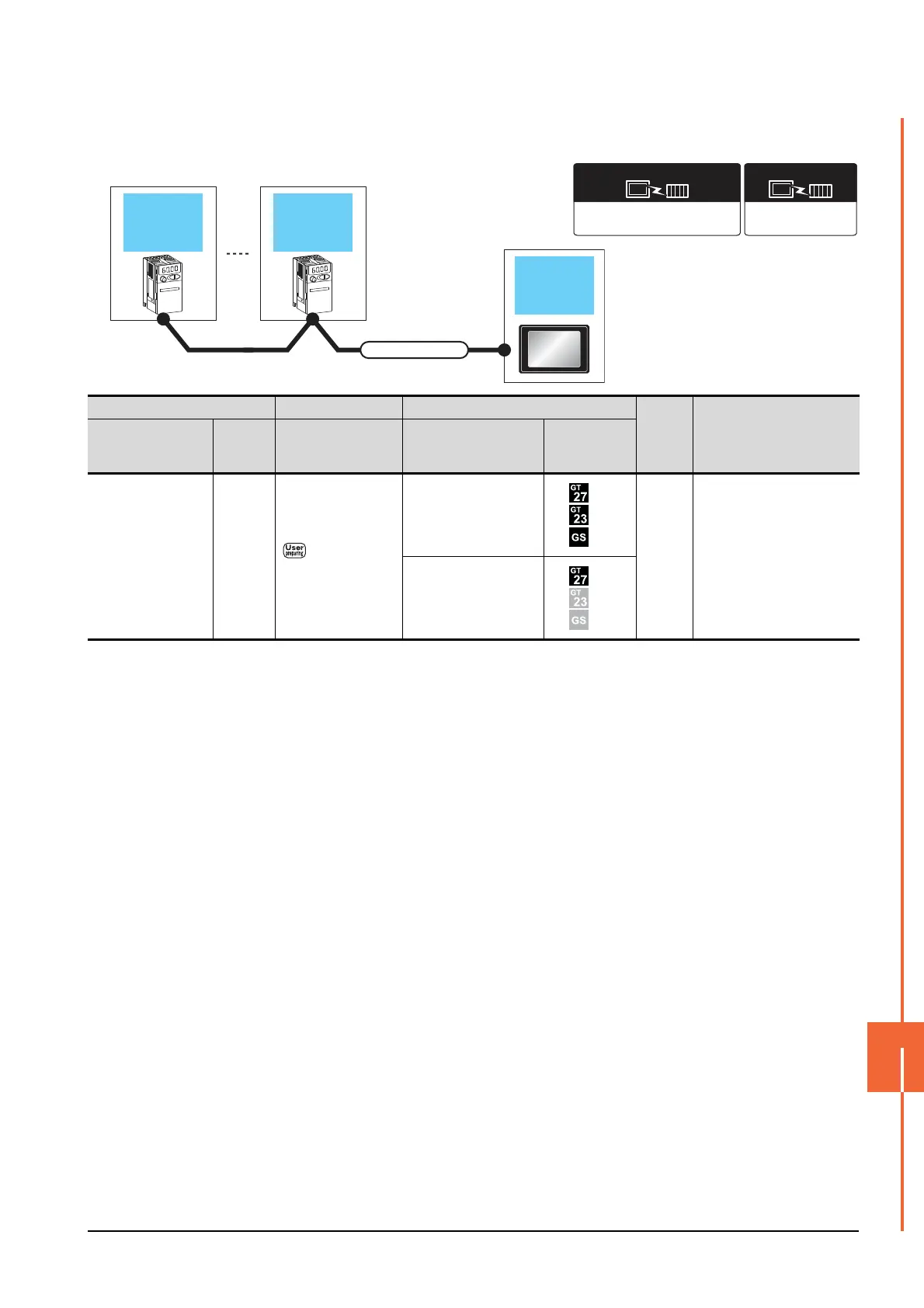

When connecting to multiple inverters (Max. 31) (Using the built-in RS485 terminal block)
Inverter
GOT
Connection cable
Inverter
FREQROL 800
Communication driver
(For automatic
connection)
FREQROL 500/700/800,
SENSORLESS SERVO
Communication driver
Inverter Connection cable GOT
Max.
distance
Number of connectable
equipment
Model name
Communi
cation
type
Connection diagram
number
Option device Model
FREQROL-
A700/F700/F700P/
A800/F800
(Built-in RS485
terminal block)
RS-485
RS485 connection
diagram 6)
- (Built into GOT)
500m
31 inverters for one GOT
GT15-RS4-9S
