6. DIRECT CONNECTION TO CPU
6.2 System Configuration
6 - 9
6
DIRECT CONNECTION TO CPU

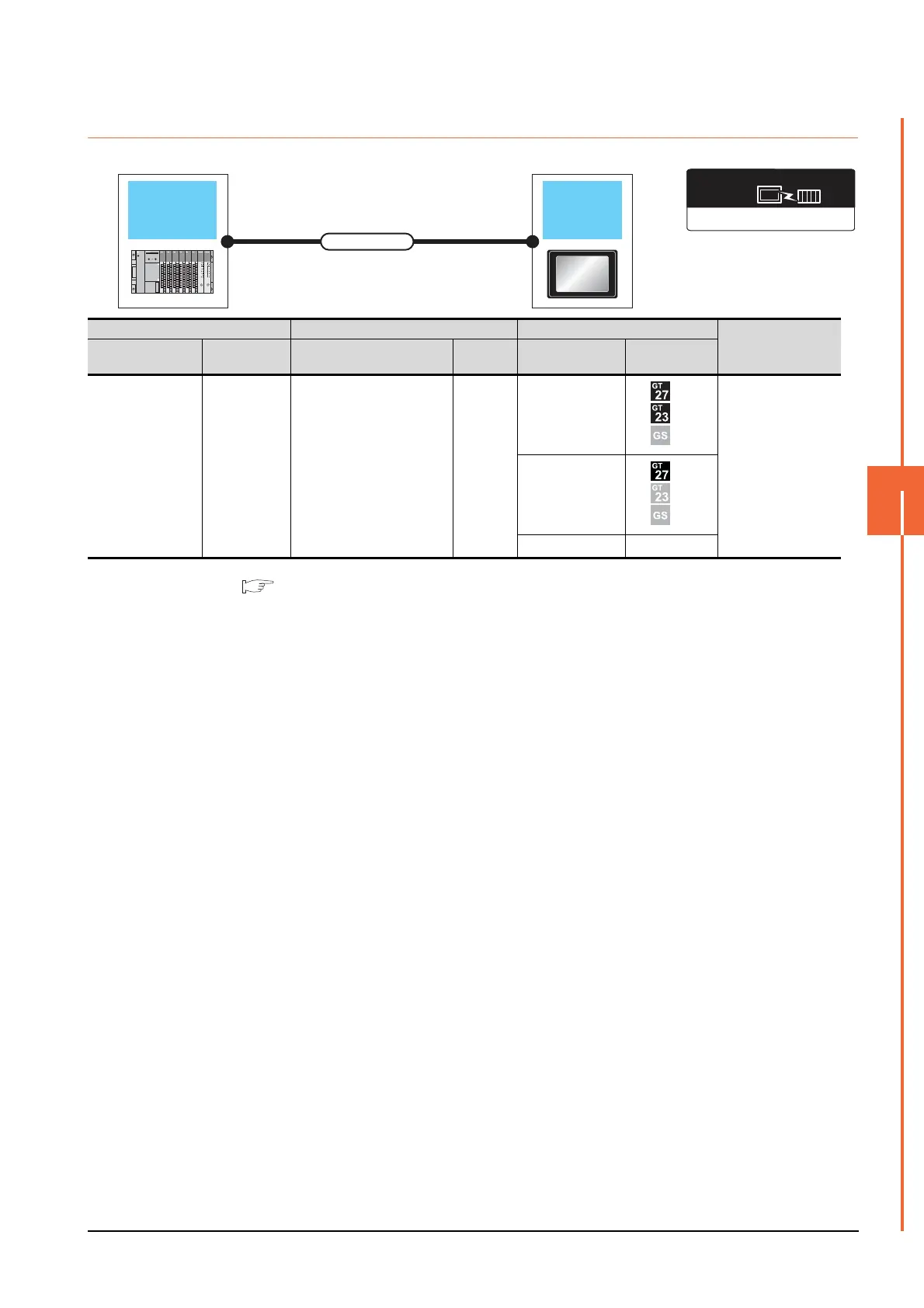

6.2.4 Connecting to ACPU
*1 For details of the GOT multi-drop connection, refer to the following.
18. GOT MULTI-DROP CONNECTION
ACPU GOT
Connection cable
Q/L/QnA/A CPU, QJ71C24, LJ71C24
Communication driver
PLC Connection cable GOT
Number of
connectable
equipment
Model name
Communication
type
Cable model
Max.
distance
Option device Model
MELSEC-A RS-422
GT01-C30R4-25P(3m)
GT01-C100R4-25P(10m)
GT01-C200R4-25P(20m)
GT01-C300R4-25P(30m)
30m
- (Built into GOT)
1 GOT for 1 PLC
GT15-RS4-9S
GT01-RS4-M
*1
-
