5 - 48
5. ETHERNET CONNECTION
5.4 PLC Side Setting
5.4.11 Connecting to
PERIPHERAL I/F (Built-in
Ethernet port Motion
Controller CPU)
This section describes the settings of the GOT and Built-in
Ethernet port Motion Controller CPU in the following case
of system configuration.
(1) GOT type setting
For details, refer to the following.
1.1.1 Setting connected equipment (Channel
setting)
(2) Setting [Controller Type]
(2) CPU No. specification of Q170MCPU and
Q170MSCPU(-S1)
Set whether to monitor the PLC CPU area or the
Motion CPU area of Q170MCPU or
Q170MSCPU(-S1), in the CPU No. specification.
For details, refer to the following.
5.5 Precautions
(3) PLC type of GX Works2/GX Developer
When creating a program, set the following PLC
type:
• For Q173D(S)CPU/Q172D(S)CPU
QnUD(E)(H)CPU
• For Q170MCPU and Q170MSCPU(-S1)
Q03UDCPU
Q03UDCPU
(4) Built-in Ethernet port CPU
For details of Built-in Ethernet port CPU, refer to
the following manual.
User's Manual of Q173D(S)CPU/
Q172D(S)CPU , Q170MCPU, and Q170MS(-
S1)CPU

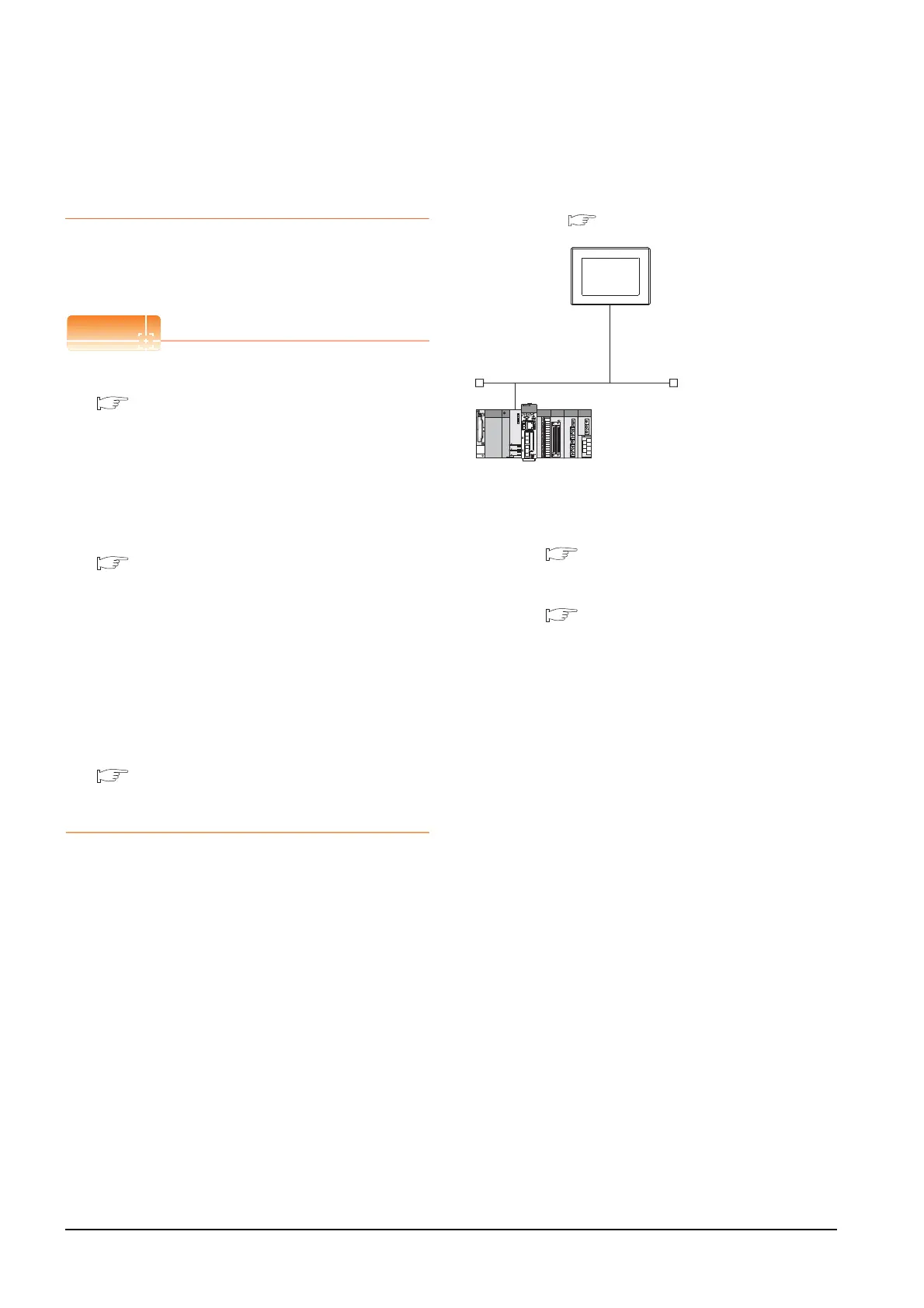

System configuration
Leave the Built-in Ethernet port Motion Controller CPU
settings as default in the following system
configuration.
*1 For the settings when using system devices including a hub
and a transceiver, refer to the following.
5.4.2 Connecting to Built-in Ethernet port CPU
(multiple connection)
*2 These setting items do not exist at the PLC side. However,
the virtual values must be set on the GOT side.
■[Controller Setting] and [Ethernet] of GT Designer3
<GOT>
(The settings other than the
following are set to the default)
*1
*2
*2
Network No.
: 1
PLC No. : 1
IP address
: 192.168.3.1
Port No.
: 5001
Communication
format
: UDP (fixed)
Network No.
: 1 (virtual)
PLC No.
: 2 (virtual)
IP address
: 192.168.3.39
Open system
: MELSOFT connection (fixed)
<Connecting to Built-in Ethernet port CPU>
(The following settings are set to the default)
[Controller Setting] and [Ethernet] of GT Designer3
■
To Next Page
