Mitsubishi GOT2000 Series Connection Manual

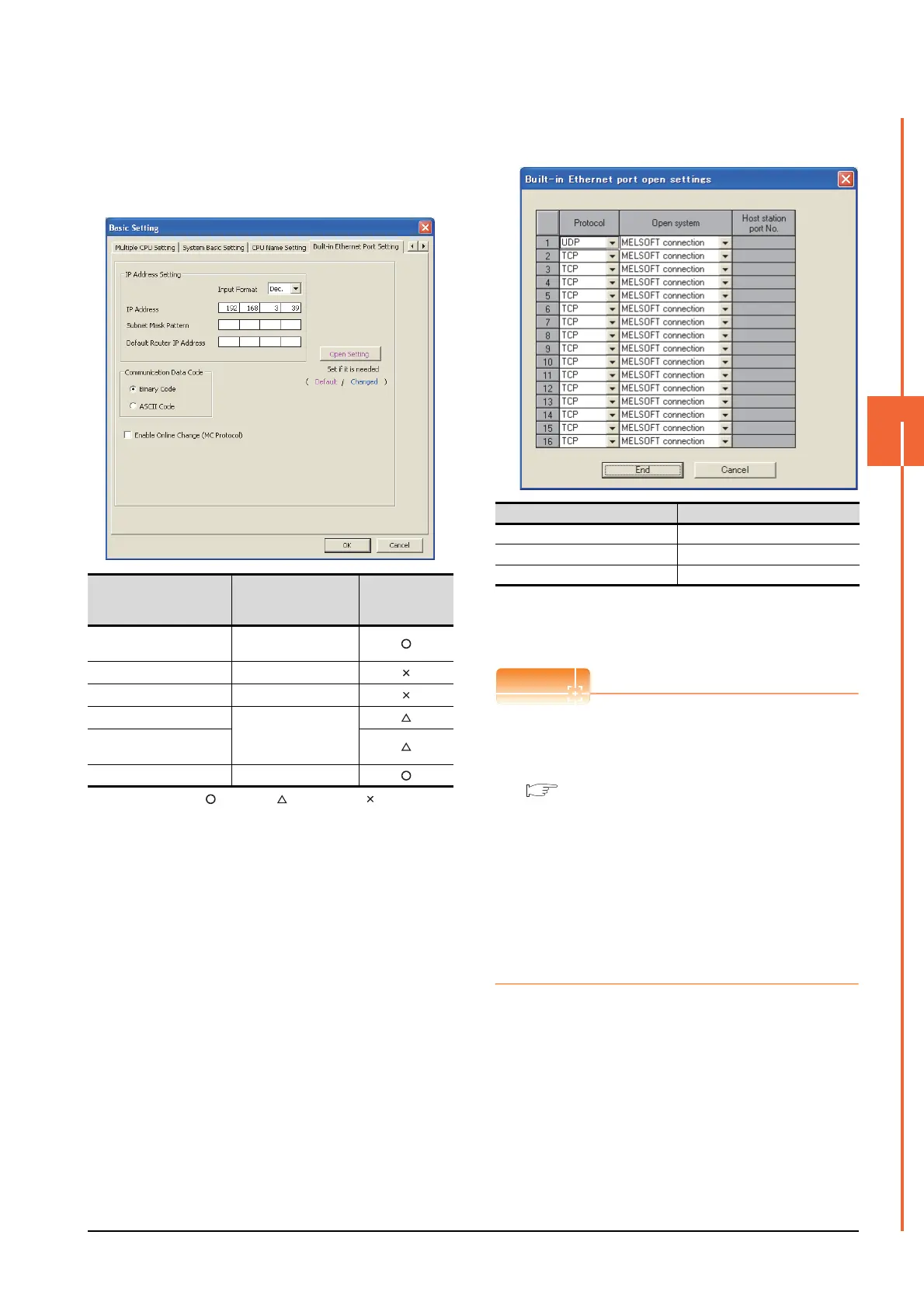

5. ETHERNET CONNECTION
5.4 PLC Side Setting
5 - 49
5
ETHERNET CONNECTION
 Basic setting of MT Works2
Use the default values of the basic setting for the
system configuration above.
(5) Built-in Ethernet port
: Necessary : As necessary : Not necessary
(6) Open settings
The setting is required for all the connected GOTs.
 [Controller Setting] and [Ethernet] of GT
Designer3
POINTPOINTPOINT
(1) [Controller Setting] and [Ethernet] of GT
Designer3
For [Controller Setting] and [Ethernet] of GT
Designer3, refer to the following.
5.3.1 Setting communication interface
(Communication settings)
(2) Ethernet setting
The settings items for the network No. and station
No. do not exist at the Built-in Ethernet port
Motion Controller CPU side. However, these
virtual values must be set on the GOT side.
Therefore, set the network No. and station No. on
the GOT side. Set the network No. that is not
existed on the network system and any station
No..
Item Set value
Setting necessity
at GOT
connection
IP address
192.168.3.39
(Default)
Subnet mask pattern -
Default router IP address -
Communication data code
(Use default value)
Enable online change
(MC protocol)
Open settings Refer to (2)
Item Set value
Protocol UDP (fixed)
Open system MELSOFT connection (fixed)
Host station port No. -

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
