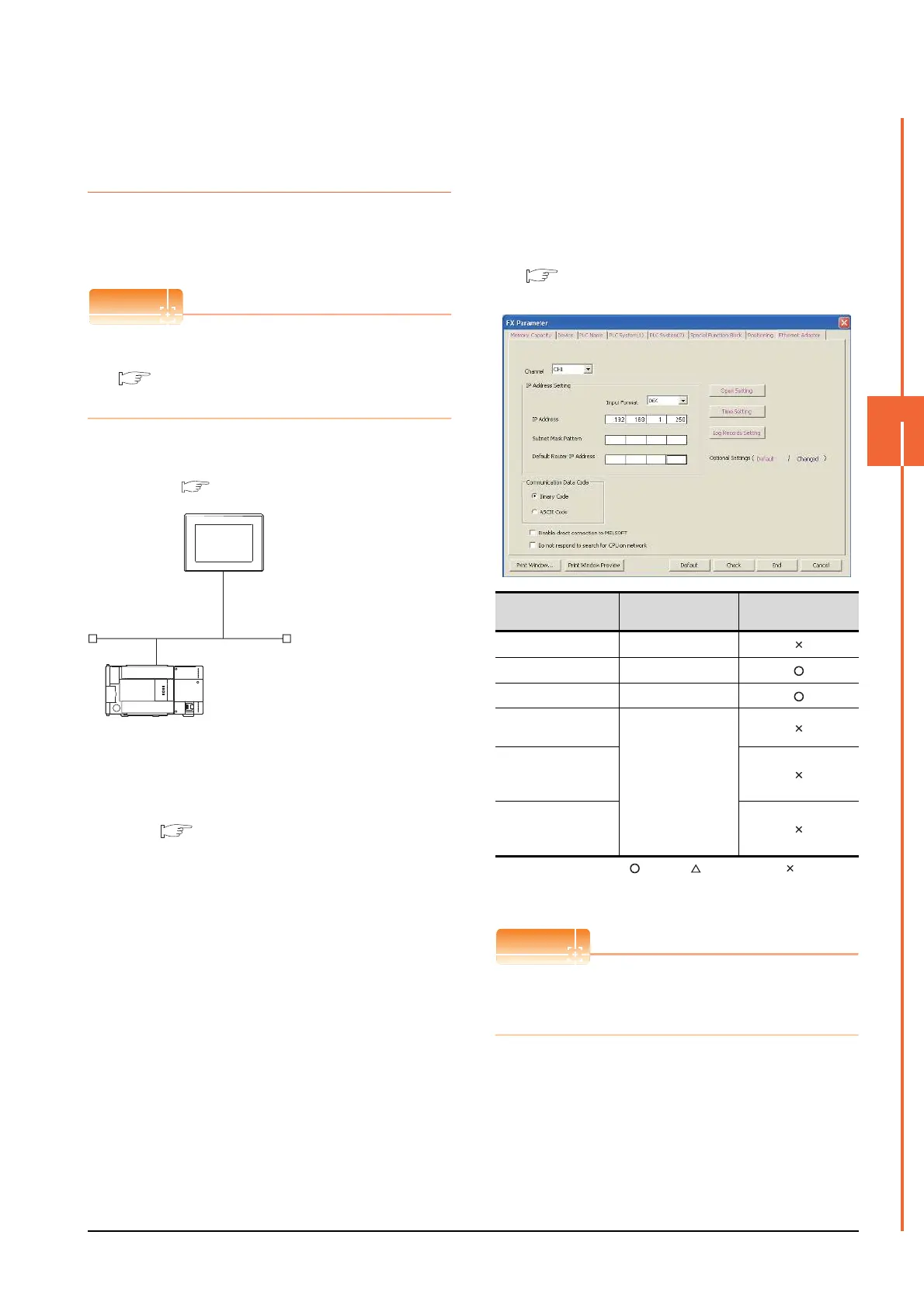

5. ETHERNET CONNECTION
5.4 PLC Side Setting
5 - 41
5
ETHERNET CONNECTION
5.4.8 Connecting to Built-in
Ethernet port FXCPU
(FX3GE)
This section describes the settings of the GOT and
Ethernet module (FX Series) in the following case of the
system configuration.
POINTPOINTPOINT
FX3GE
For details of FX3GE, refer to the following manual.
FX
3GE SERIES PROGRAMMABLE
CONTROLLERS HARDWARE MANUAL
System configuration
*1 These setting items do not exist at the PLC side. However,
the virtual values must be set on the GOT side.
[Controller Setting] and [Ethernet] of GT
Designer3
Ethernet parameter settings of FX3GE
(1) Ethernet settings
Set the Ethernet parameter at [FX Parameter] on GX
Works2.
To s e t F X3GE, GX Works2 Ver.1.91V or later is required.
For details on the setting of FX
3GE, refer to the following
manual.
FX
3GE SERIES PROGRAMMABLE
CONTROLLERS HARDWARE MANUAL
:Required :Set if necessary :Not required
*1 The default value of IP address is 192.168.1.250. Set the IP
address corresponding to the system configuration.
POINTPOINTPOINT
When changing Ethernet parameter
After writing Ethernet parameters to the PLC CPU, turn
the PLC CPU OFF then back ON again.
<GOT>
(The settings other than the
following are set to the default)
PLC No. : 1
IP address
: 192.168.0.18
Port No.
: 5019
Communication
format
: TCP (fixed)
PC No.
: 2 (virtual)
Network No.
: 1 (virtual)
IP address
: 192.168.0.19
Port No.
: 5556 (fixed)
Communication
format
: TCP (fixed)
<Ethernet module> (The settings other than the
following are set to the default)
*1
*1
[Controller Setting] and [Ethernet] of GT
Designer3
Item Setting
Setting
(with GOT connected)
Channel
CH1
IP Address
192.168.1.250
*1
Open Settings Refer to (2).
Communication Data
Code
(Use default value.)
Disable direct
connection to
MELSOFT
Do not respond to
search for CPU on
network
