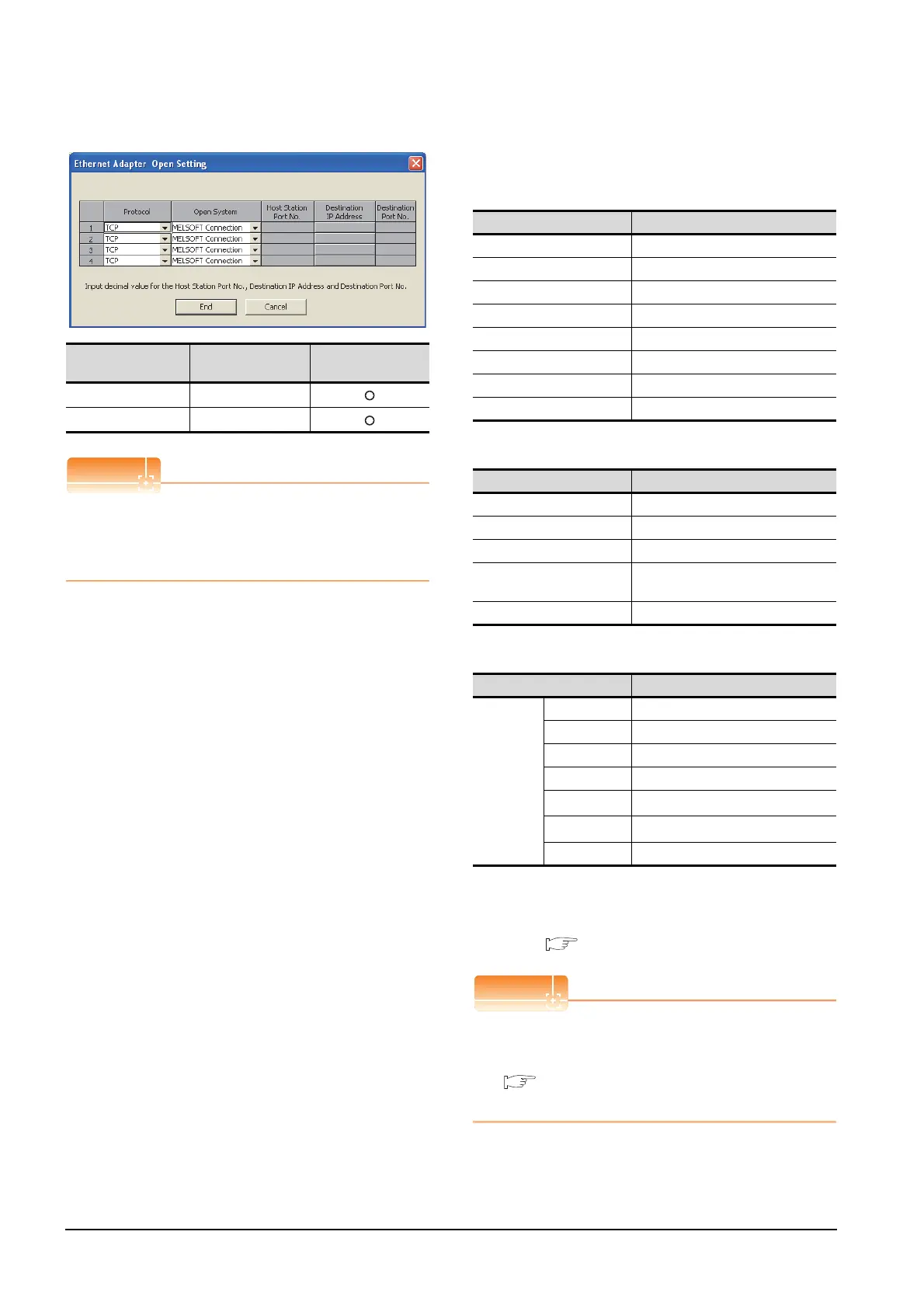

5. ETHERNET CONNECTION
5.4 PLC Side Setting
(2) Open settings
When connecting to multiple GOTs and peripheral
devices
The number of protocols equivalent to that of the GOTs
and devices must be set.
\
[Controller Setting] and [Ethernet] of GT
Designer3
(1) Controller setting
(2) GOT Ethernet setting
(3) Ethernet setting
*1 Set the value according to the IP address of the connected
PLC.
*2 Set the value according to the Port No. of the connected
PLC.
For details, refer to the following.
5.3.4 Ethernet setting
[Controller Setting] and [Ethernet] of GT Designer3
For [Controller Setting] and [Ethernet] of GT
Designer3, refer to the following.
5.3.1 Setting communication interface
(Communication settings)
Item Setting
Setting
(with GOT connected)
Protocol TCP
Open System MELSOFT connection
Item Setting (Use default value.)
GOT Net No. 1
GOT Station 1
GOT Ethernet Setting 192.168.3.18
GOT Communication Port No. 5019
Retry 3times
Startup Time 3sec
Timeout Time 3sec
Delay Time 0ms
Item Setting (Use default value.)
GOT IP Address 192.168.3.18
Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
Peripheral Communication
Port No.
5015
Transparent Port No. 5014
Item Setting
Ethernet
setting No.1
Host *
N/W No. 1
PLC No. 2
Type FX (fixed)
IP address
192.168.0.19
*1
Port No.
5556
*2
Communication TCP (fixed)
To Next Page
