20 - 58
20. FA TRANSPARENT FUNCTION
20.6 Personal Computer Side Setting
20.6.13 Accessing by NC Configurator

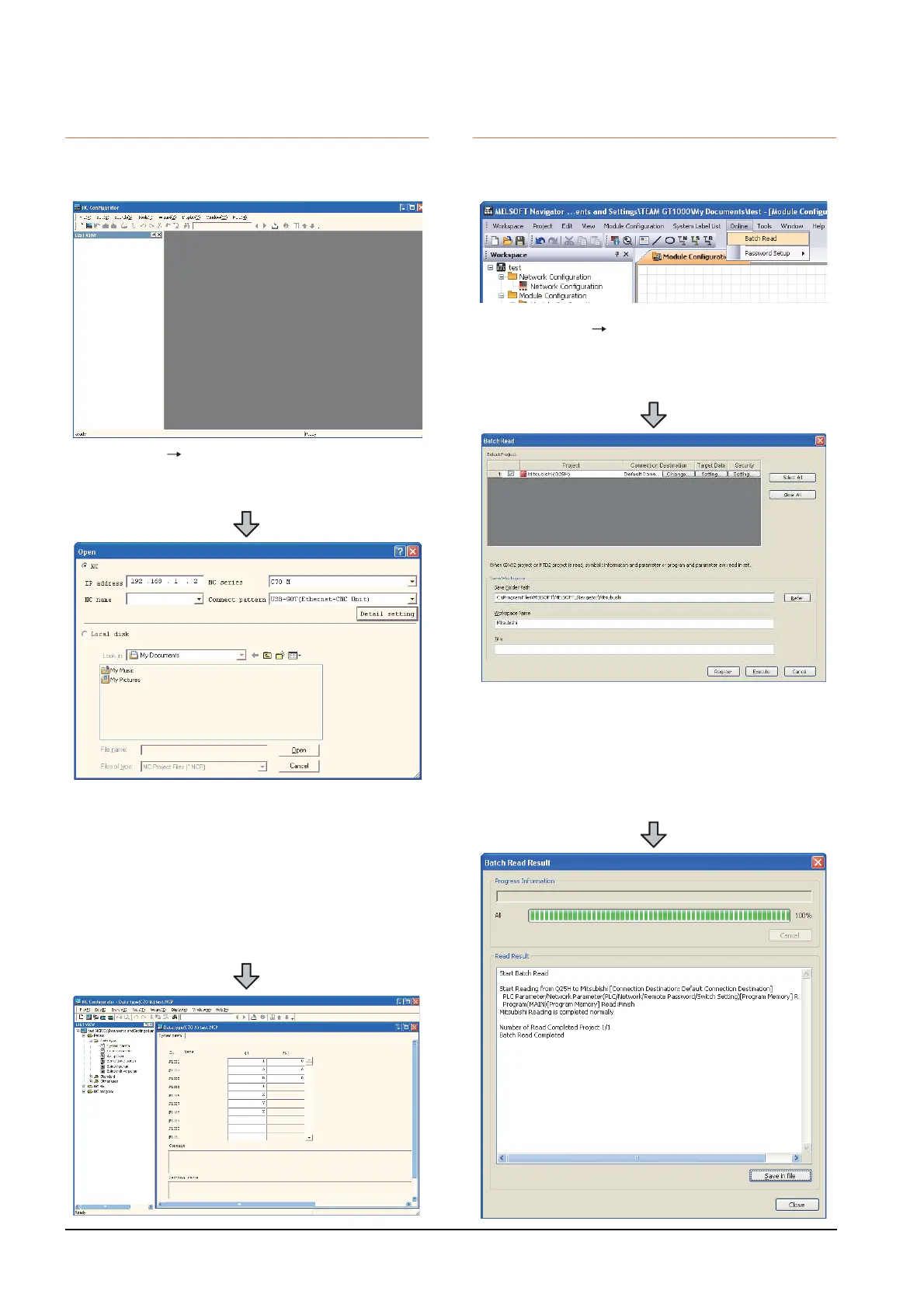

The following shows the procedure to set the FA
transparent function of NC Configurator.
20.6.14 Accessing by MELSOFT Navigator
This section explains the procedure to set the FA transparent
function of the MELSOFT Navigator.
1. Click [File] [Open].
2. The [Open] is displayed.
3. Select [NC] on the upper left of the screen, and set
the following:
NC series : C70 M or C70 L
Connect pattern : Set the pattern according to the
connect pattern.
IP address : Set as necessary.
4. By clicking [Open], data is read from CNC and
displayed.
1. Click [Online] [Batch Read] in MELSOFT
Navigator.
2. The [Batch Read] is displayed.
3. Select the projects to be read from [Select Project],
and set the storage destination of the workspace in
[Save Workspace].
4. Click [Execute] to read and display the specified
project.
