19. MULTI-CHANNEL FUNCTION
19.2 System Configuration
19.2.2 Ethernet multiple connection

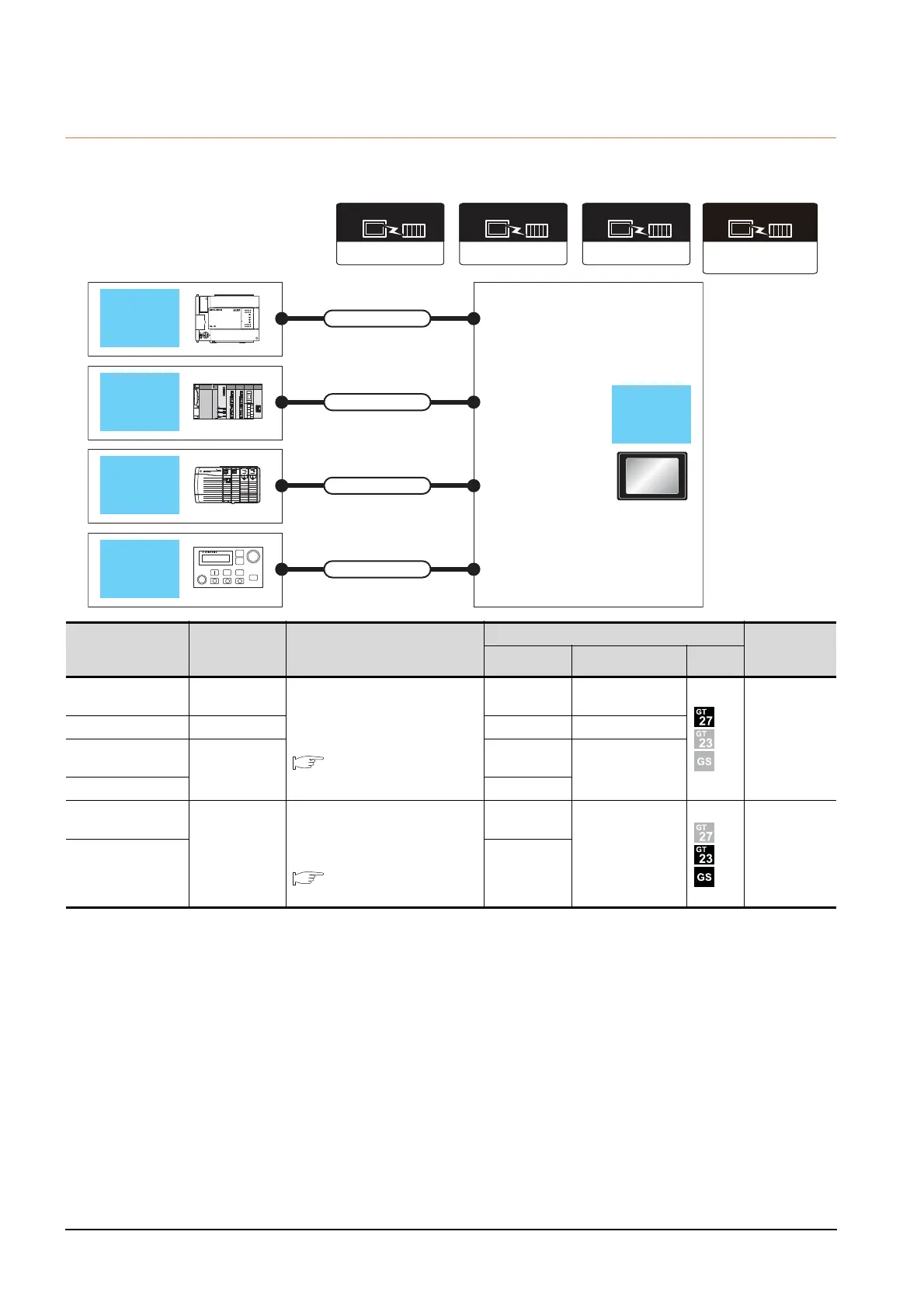

One GOT can make several Ethernet connections and the bus or network connections. Therefore, the system
configuration, in which several networks are linked, can be established.
MELSECNET/H
Communication driver
MELSEC-FX
Communication driver
Ethernet/IP(AB)/
Gateway
Communication driver
Direct CPU connection
(Channel No.1)
MELSECNET/H
connection
(Channel No.2)
Ethernet connection
(Channel No.3)
Ethernet connection
(Channel No.4)
Connection cable
Connection cable
Connection cable
Connection cable
GOT
FXCPU
ALLEN-
BRADLEY
PLC
Robot
controller
QCPU
Ethernet(MELSEC),
Q17nNC, CRnD-700,
Communication driver
Gateway
PLC Connection type Connection cable
GOT Number of
connectable
equipment
Channel No. Option device Model
MELSEC-FX
Direct CPU
connection
For the system configuration between
GOT and the controllers, refer to the
following.
Each chapter indicating the
system configuration
1 GT15-RS2T4-9P
4 connected
equipment for 1
GOT
(4 channels)
QCPU MELSECNET/H 2 GT15-J71LP23-25
ALLEN-BRADLEY
PLC
Ethernet
3
- (Built into GOT)
Robot controller 4
ALLEN-BRADLEY
PLC
Ethernet
For the system configuration between
GOT and the controllers, refer to the
following.
Each chapter indicating the
system configuration
1
- (Built into GOT)
2 connected
equipment for 1
GOT
(2 channels)
OMRON PLC 2
