12. CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
12.4 PLC Side Setting
12 - 31
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
12
[Controller Setting] of GT Designer3
[Controller Setting] of GT Designer3
For the setting method of [Controller Setting] of GT
Designer3, refer to the following.
12.3.1 Setting communication interface
(Communication settings)
12.4.7 Connecting to CC-Link module
(A Series)
This section describes the settings of the GOT and CC-
Link module (A Series) in the following case of system
configuration.
CC-Link module (A Series)
For details of the CC-Link module (A Series), refer to
the following manual.
Control & Communication Link System Master/
Local Module Type AJ61BT11/A1SJ61BT11
User's Manual

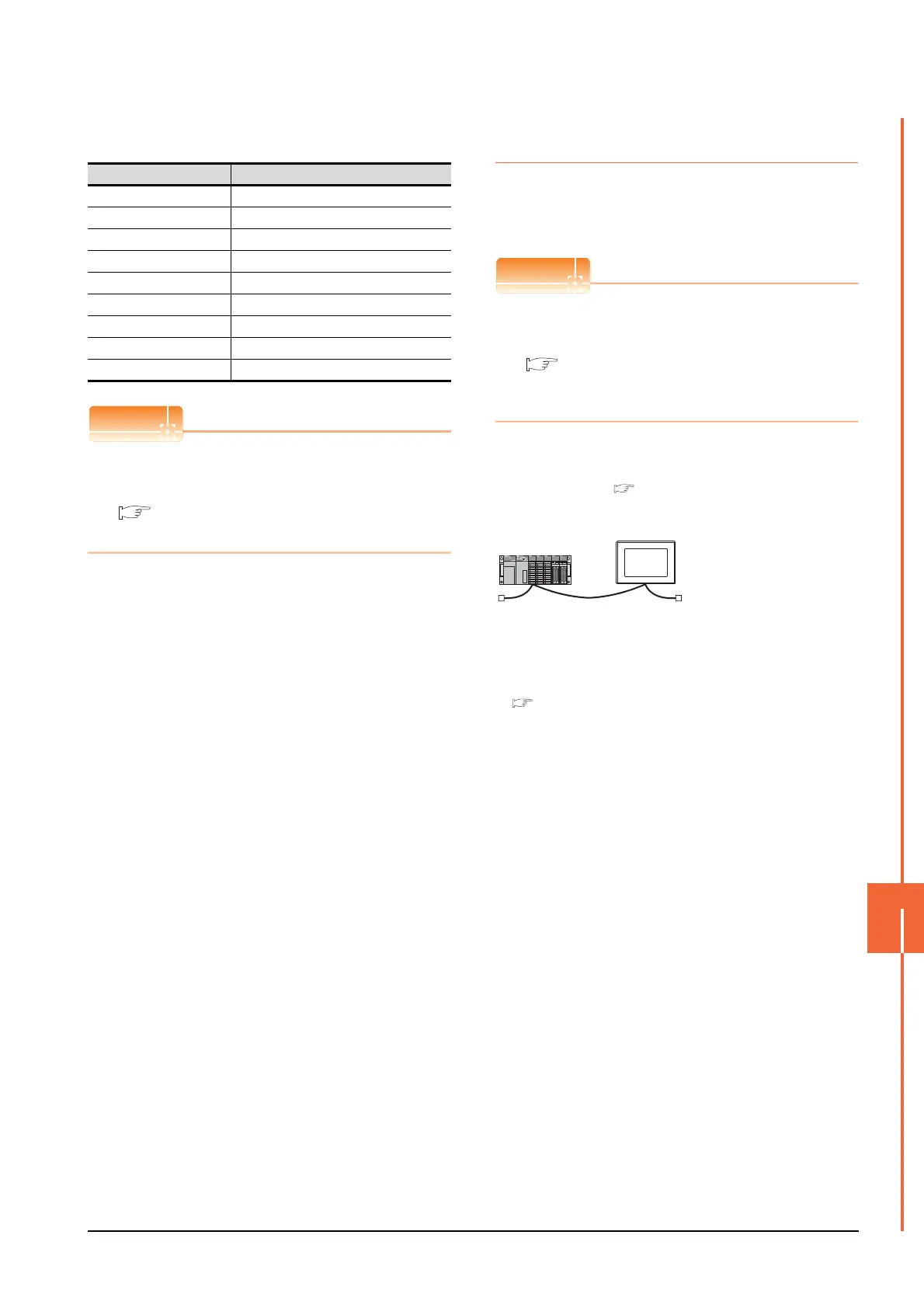

System configuration
*1 The CC-Link module is mounted on the base unit slot 0.
The Start I/O No. of the CC-Link module is set to "0"
Item Set value
Station No. 1: Station No.1
Transmission Rate 0: Online 156kbps
Mode Ver.1: Remote net (Ver.1 mode)
Expanded Cyclic Single (Use default value)
Number of stations occupied
1 Station
Input for Error Station 0: Clear
Retry 3times (Use default value)
Timeout Time 3sec (Use default value)
Delay Time 0ms (Use default value)
*1
<CC-Link module>
(Use the default value for settings other than the following.)
<GOT>
(Use the default value for settings other
than the following.)
Station type : Master station
All connect count
: 1
Mode setting
: Remote net mode
Station No.
: Station No.0
Module mode
: Intelligent mode
Transmission speed
: 156kbps
Station type
: Intelligent device
station
Station No.
: Station No.1
Number of station occupied : Exclusive station 1
Transmission
speed
: 156kbps
■ [Controller Setting] of GT Designer3
■ Settings of CC-Link module (A Series)
■ Sequence program
To Next Page
