Mitsubishi GOT2000 Series Connection Manual

17 - 16

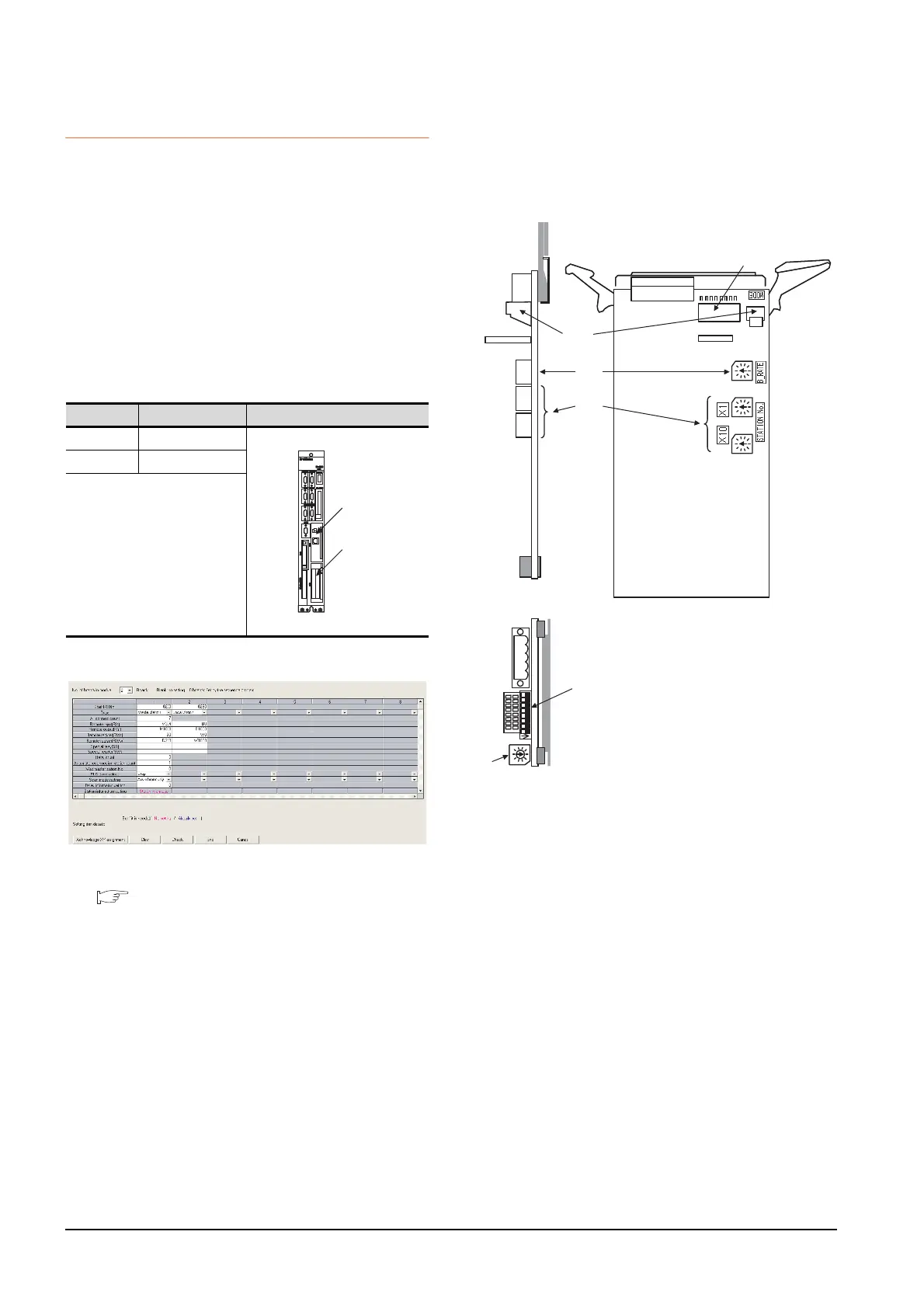

17. CNC CONNECTION
17.5 CNC Side Settings
17.5.2 CC-Link (ID) connection
 Parameter setting
Set parameters related to CC-Link connection with GX
Developer and write them to CNC by PLC. However, in
the case of using the local stations, it is not necessary
to set the network parameters.
(1) Master station parameter
It is necessary to set and write the network parameters
to CNC with GX Developer. The following shows an
example of parameter settings.Set the first I/O No. as
follows according to the expansion slot to which the unit
is inserted.
(a) Start I/O No.
(b) Example of GX Developer setting
For details of the parameter setting, refer to the
following.
C6/C64/C64T NETWORK INSTRUCTION
MANUAL BNP-B2373
 Expansion unit settings
Make the communication settings by the setting switch
in the expansion unit (FCU6-HR865).
(1) Expansion unit
Slot Start I/O No.
EXT1 0200
EXT2 0280
EXT1
EXT2
4)
3)
2)
1)
1)
2)
