Mitsubishi GOT2000 Series Connection Manual

3. ACCESS RANGE FOR MONITORING
3.6 Connection to Remote I/O Station in MELSECNET/H Network System
3 - 19
3
ACCESS RANGE FOR MONITORING
3.6 Connection to Remote I/O Station in MELSECNET/
H Network System

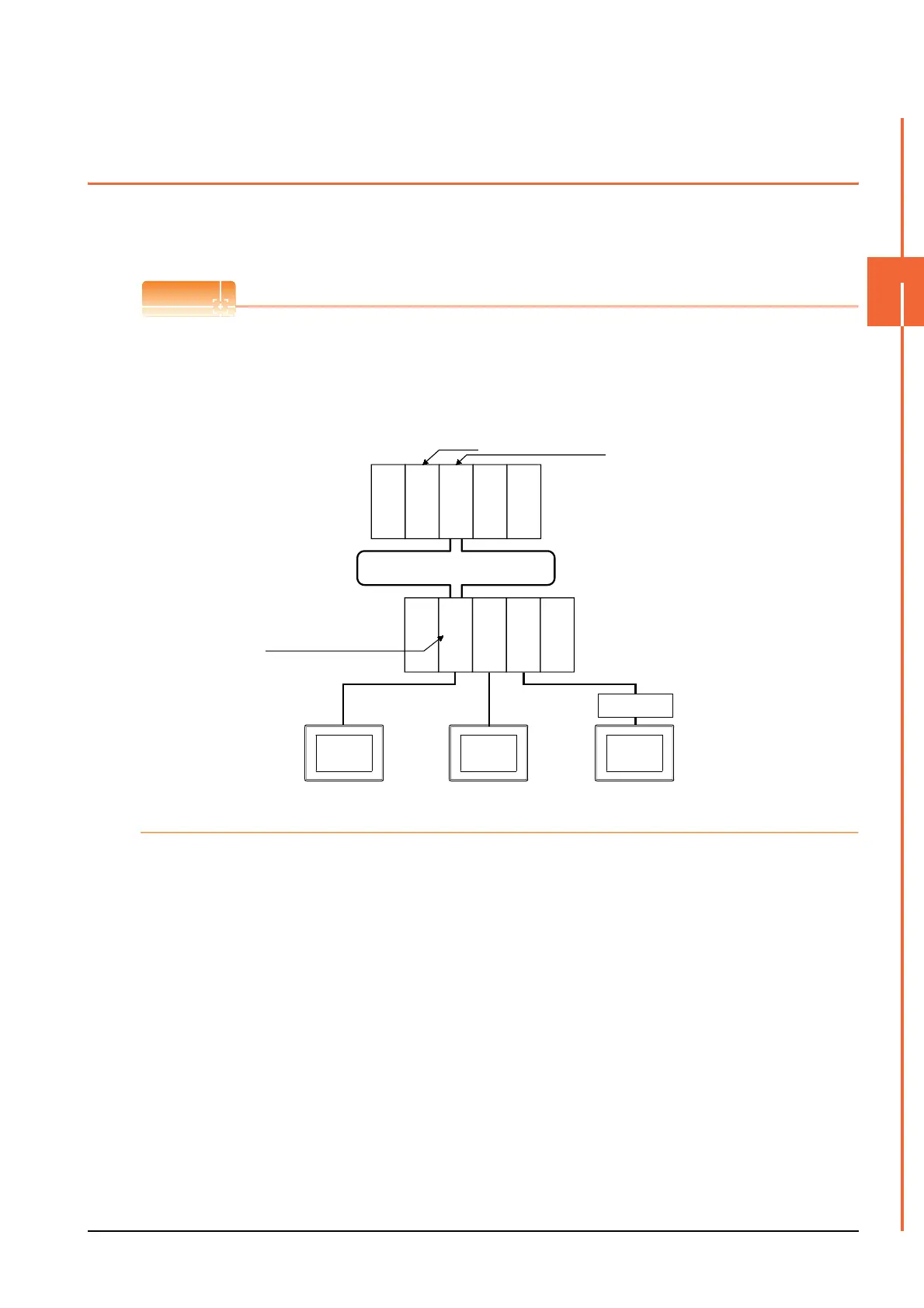

When connected to the remote I/O station of the MELSECNET/H network system, the GOT can monitor the PLC CPU of
the master station.
When connecting the GOT to the remote I/O station, use the following connection methods.
POINTPOINTPOINT
Connection to remote I/O station of MELSECNET/B, (II) or /10
The GOT cannot be connected to the remote I/O station on the MELSECNET/B, (II) data link system and
MELSECNET/10 network system.
Connect the GOT to the remote I/O station on the MELSECNET/H network system.
Monitor
target
Network No.1
Station No.0
(master station)
QJ71LP21-25
Q33B
MELSECNET/H remote I/O Network
Network No.1
Station No.1
(remote I/O station)
QJ72LP25-25 QJ71C24N
Q33B
QJ71E71-100
Empty Power supply module Empty
Empty
Power supply module
PLC CPU
Hub
(1) Direct CPU
GOT
(3) Ethernet connection
GOT
(2) Computer link
GOT
connection
connection
