20. FA TRANSPARENT FUNCTION
20.6 Personal Computer Side Setting
20 - 49
20
FA TRANSPARENT FUNCTION
20.6.5 Accessing by the MT
Developer
This section explains the procedure to set the FA
transparent function of MT Developer with an example of
connecting to motion controller CPU (Q series).

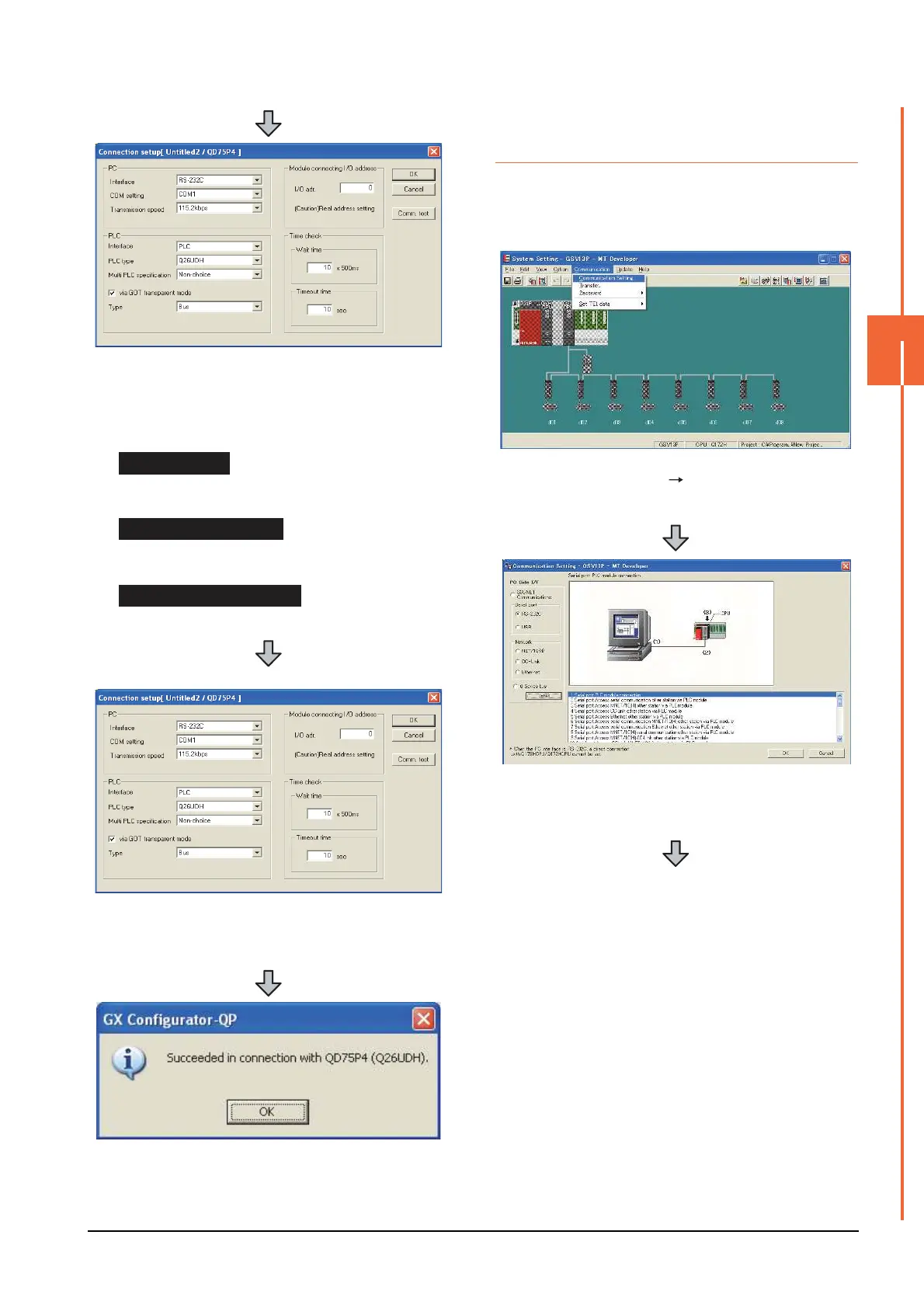

4. Set the [PLC side] in [Connection setup].
PLC type: Q series PLC type
Multi PLC specification: None/No.1 to 4
Direct CPU connection, mark the [via GOT
transparent mode] checkbox.
Interface: PLC
Type: Bus
Interface: PLC
Type: Direct coupled
Interface: C24
(For bus connection only)
5. Set the [Module connecting I/O address] in
[Connection setup].
Specify the actual IP address of the module.
6. The screen returns to the [Connection setup]. Click
the [Connection Test] to check if GX Configurator-QP
has been connected to the QD75***(QnCPU).
Bus connection
Direct CPU connection
Computer link connection
1. Click [Communication] [Communication Setting] in
MT Developer.
2. Select [USB] in [Serial port].
3. Click [Detail].
