Mitsubishi GOT2000 Series Connection Manual

13. CC-Link CONNECTION (Via G4)
13.5 PLC Side Settings
13 - 15
CC-Link CONNECTION (Via G4)
13

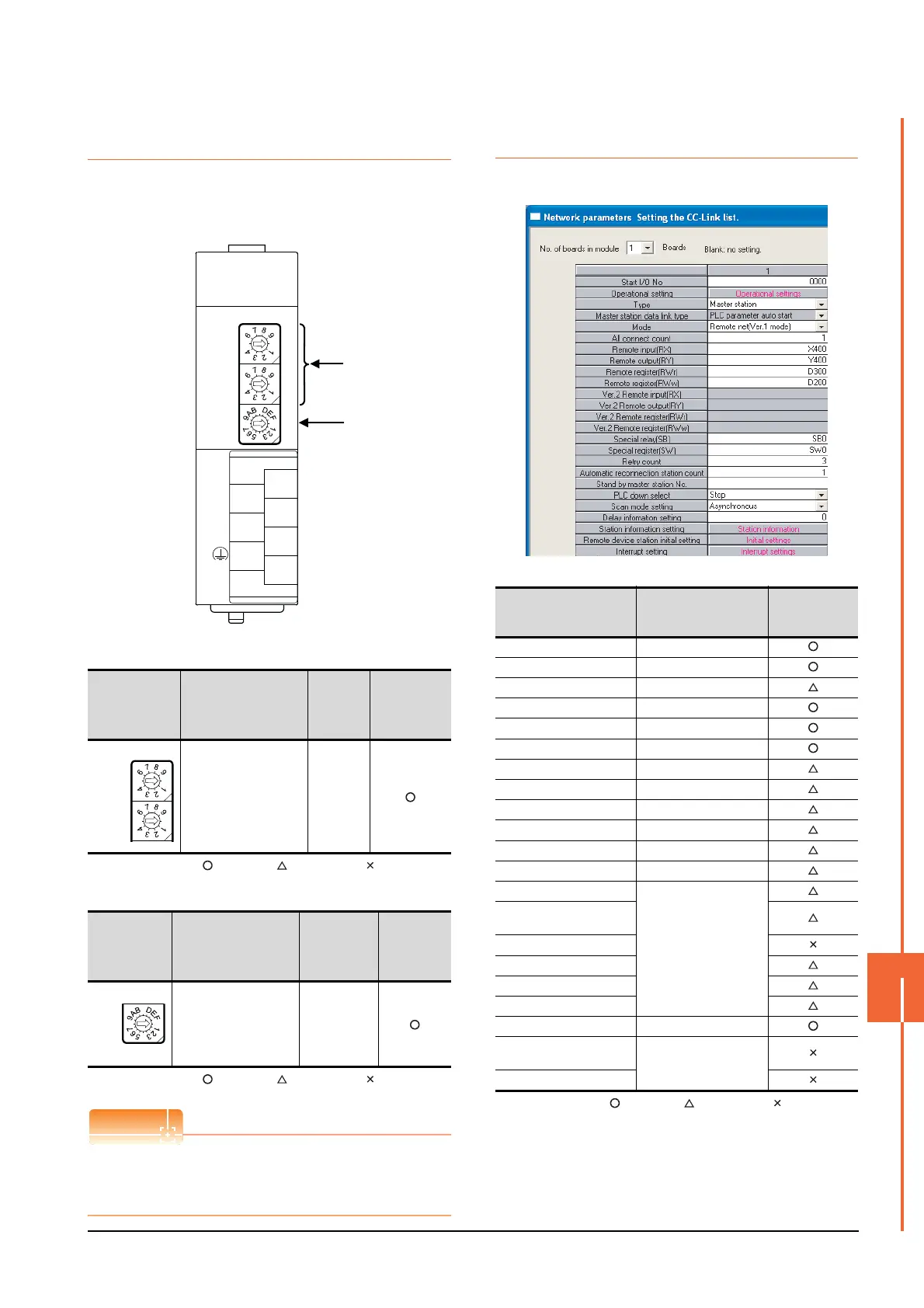

13.5.3 Switch setting of CC-Link
module (Q series)
Set the station number setting switch, transmission speed /
mode setting switch.
(1) Station number setting switch
: Necessary : As necessary : Not necessary
(2) Transmission rate/mode setting switch
: Necessary : As necessary : Not necessary
POINTPOINTPOINT
When the switch setting has been changed
Turn the PLC CPU OFF then ON again, or reset the
PLC CPU.
13.5.4 [Network parameter] of GX
Developer
(1) Network parameter
: Necessary : As necessary : Not necessary
Station number
setting switch
Description Set value
Setting
necessity
at GOT
connection
Station number setting
(master station)
0 (fixed)
Transmission
rate/
mode setting
switch
Description Set value
Setting
necessity
at GOT
connection
Transmission rate/mode
setting
0: 156kbps
1: 625kbps
2: 2.5Mbps
3: 5Mbps
4: 10Mbps
(1)
(2)
QJ61BT11, QJ61BT11N
0
5
0
5
0
8
1
2
7
6
5
4
3
STATION
NO.
X10
X1
MODE
QJ61BT11N
RUN
ERR.
SD
MST
L RUN
L ERR.
RD
S MST
NC
DA
DB
NC
SLD
DG
(FG)
C
4
0
5
0
5
STATION
NO.
X10
X1
0
8
MODE
C
4
Item Set value
Setting necessity
at GOT
connection
No. of boards in module 1
Start I/O No. 0000
H
Operation setting (Use default value)
Type Master station (fixed)
Mode Remote net (Ver.1 mode)
All connect count 1
Remote input (RX)
X400
Remote output (RY)
Y400
Remote register (RWr)
D300
Remote register (RWw)
D200
Special relay (SB)
SB0
Special register (SW)
SW0
Retry count
(Use default value)
Automatic reconnection
station count
Stand by master station No.
PLC down select
Scan mode setting
Delay information setting
Station information setting Refer to (2)
Remote device station
initial setting
(Use default value)
Interrupt setting
