Mitsubishi GOT2000 Series Connection Manual

8 - 20
8. BUS CONNECTION
8.2 System Configuration

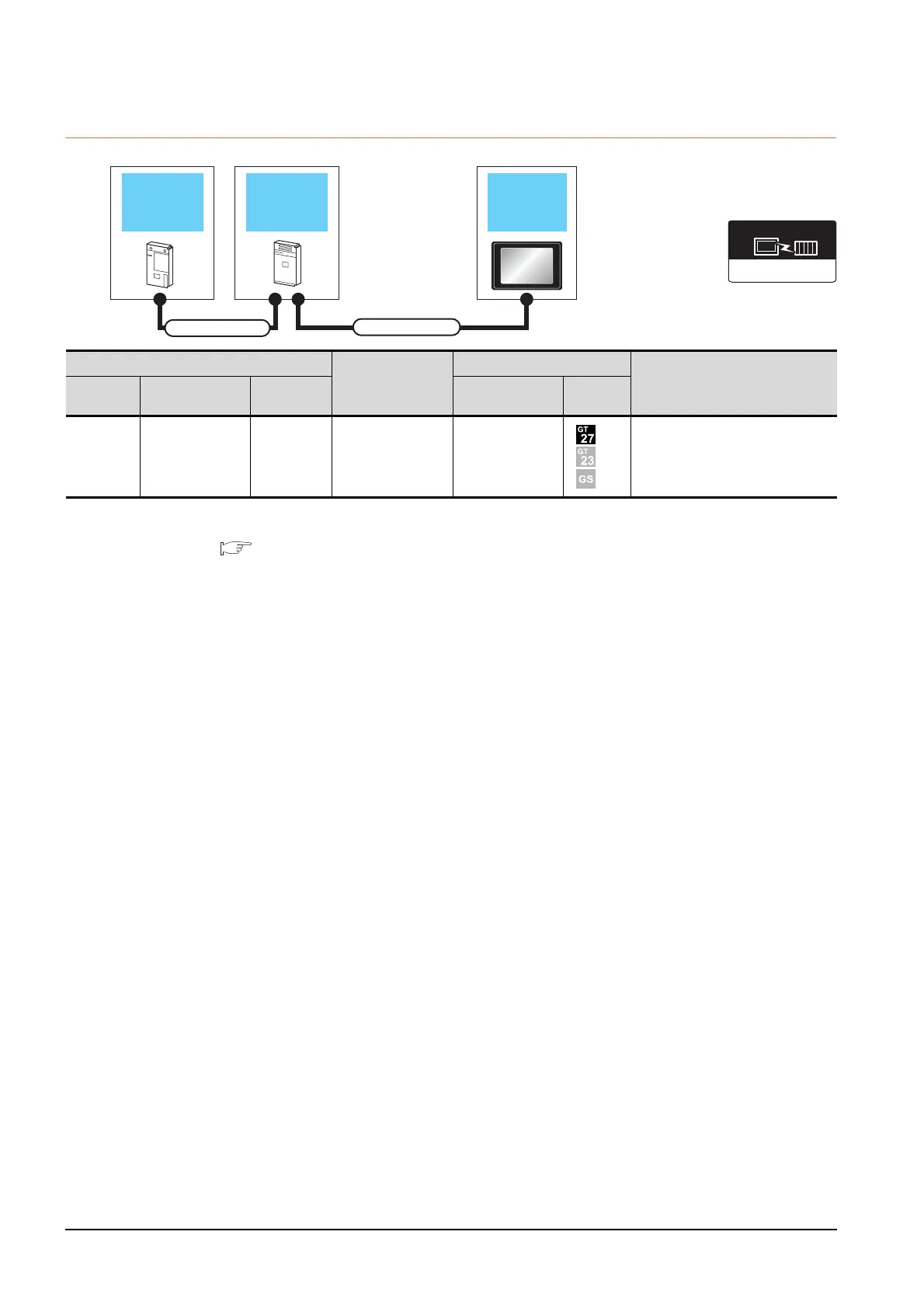

8.2.4 Connection to A0J2HCPU
*1 The number of connectable GOTs is restricted depending on the number of intelligent function modules mounted to the
A0J2HCPU.
8.4.12 When connecting multiple GOTs
*2 When using the following functions, use GT15-QBUS(2). GT15-75QBUS(2)L cannot be used.
Remote personal computer operation (Serial), video display function, multimedia function, external I/O device, RGB display
function, sound output function
Power supply
module
GOTPLC
Connection cable 2)
Connection cable 1)
Communication driver
Bus(A/QnA)
PLC
Connection cable 2)
GOT1000 series
*1
Max. distance
Model name Connection cable 1)
Power supply
module
Option device
*2
Model
A0J2HCPU
A0J2C03(0.3m)
A0J2C06(0.55m)
A0J2C10(1m)
A0J2C20(2m)
A0J2-PW GT15-J2C10B(1m)
GT15-75ABUSL
GT15-75ABUS2L
GT15-ABUS
GT15-ABUS2
Between PLC and GOT: 6.6m
Between power supply module and
GOT: 1m

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
