14. INVERTER CONNECTION
14.5 FREQROL Series Inverter Side Settings
14.5.14 Station number setting
Set each station number so that no station number
overlaps.
The station number can be set without regard to the cable
connection order. There is no problem even if station
numbers are not consecutive.
(1) Direct specification
When setting the device, specify the station number of
the inverter of which data is to be changed.
(2) Indirect specification
When setting the device, indirectly specify the station
number of the inverter of which data is to be changed
using the 16-bit GOT internal data register (GD10 to
GD25).
When specifying the station No. from 100 to 155 on GT
Designer3, the value of GD10 to GD25 compatible to
the station No. specification will be the station No. of
the inverter.
Specification range
0 to 31
Specification
station NO.
Compatible
device
Setting range
100 GD10
0 to 31
For the setting other than the above,
error (dedicated device is out of range)
will occur.
101 GD11
102 GD12
103 GD13
104 GD14
105 GD15
106 GD16
107 GD17
108 GD18
109 GD19
110 GD20
111 GD21
112 GD22
113 GD23
114 GD24
115 GD25
GOT
Station
No.1
Station
No.0
Station
No.3
Station
No.21
Station
No.6

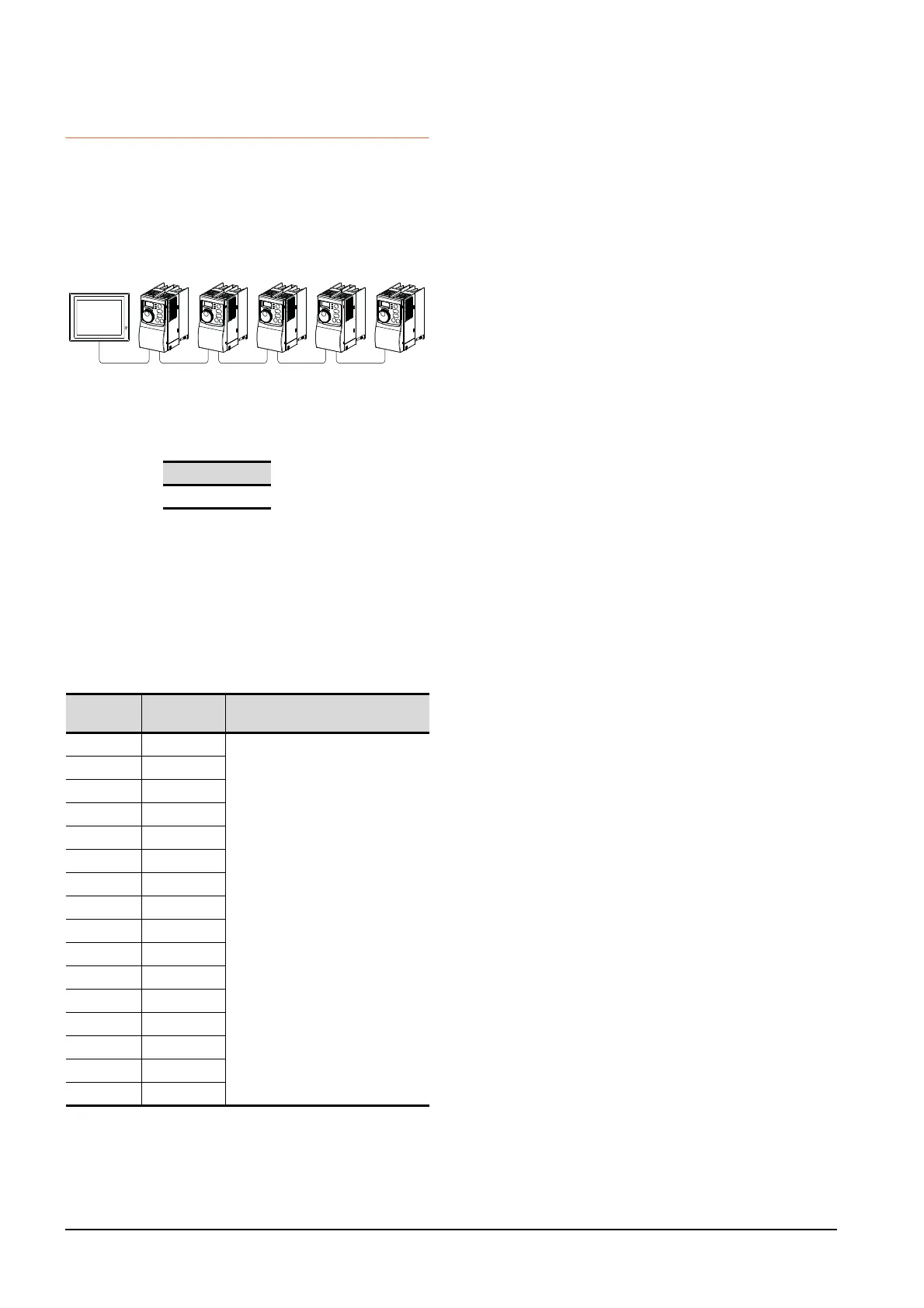

Examples of station number setting

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
