Mitsubishi GOT2000 Series Connection Manual

10. CC-Link IE CONTROLLER NETWORK CONNECTION
10.3 GOT side settings
10 - 9
CC-Link IE CONTROLLER NETWORK CONNECTION
10

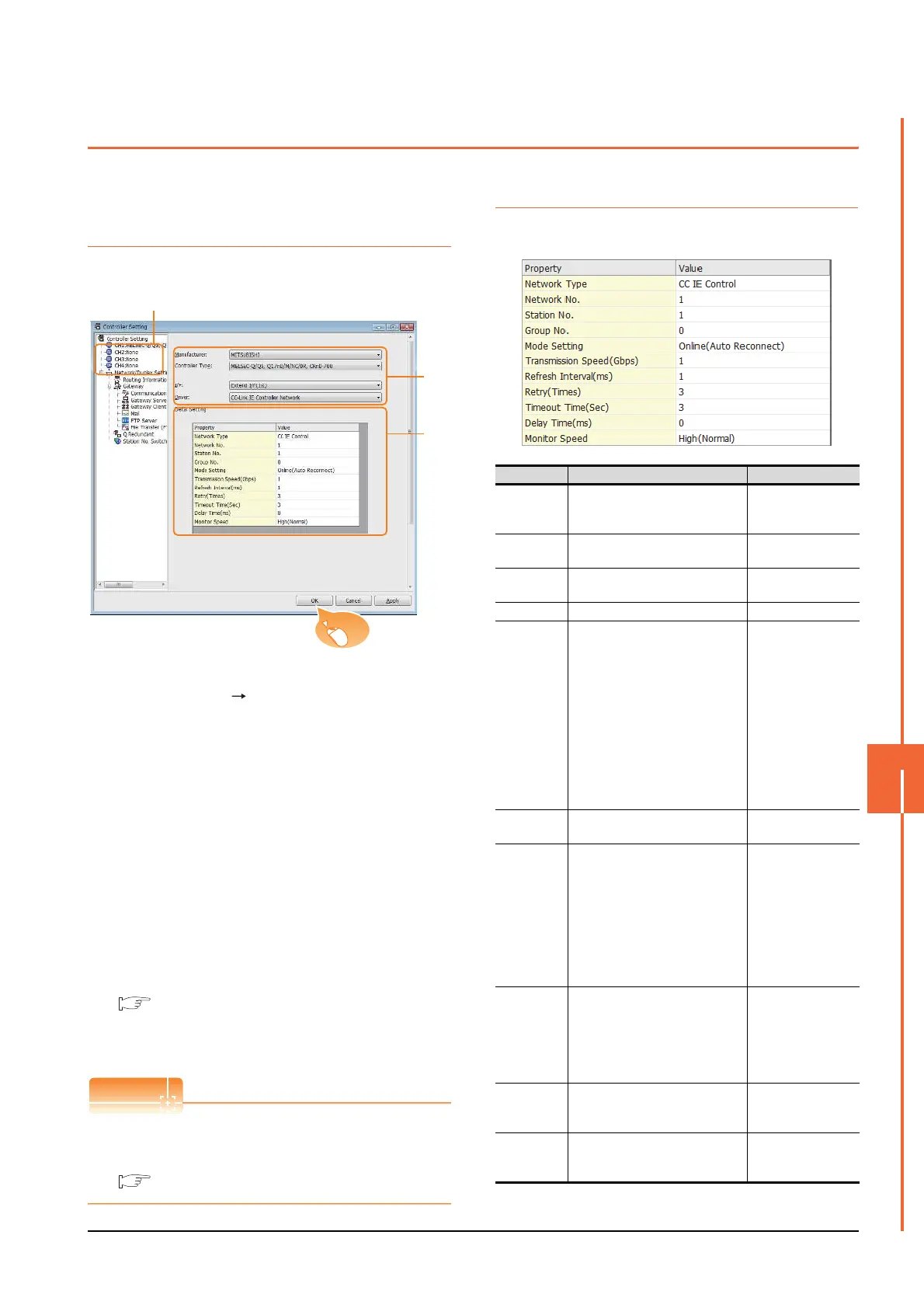

10.3 GOT side settings
10.3.1 Setting communication
interface (Communication
settings)
Set the channel of connecting equipment.
1. Select [Common] [Controller Setting] from the
menu.
2. The Controller Setting window is displayed. Select the
channel to be used from the list menu.
3. Set the following items.
• Manufacturer: Mitsubishi
• Controller Type: Set according to the Controller
Type to be connected.
• I/F: Interface to be used
• Driver: CC-Link IE Controller Network
4. The detailed setting is displayed after Manufacturer,
Controller Type, I/F, and Driver are set.
Make the settings according to the usage
environment.
10.3.2 Communication detail settings
Click the [OK] button when settings are completed.
POINTPOINTPOINT
The settings of connecting equipment can be
confirmed in [I/F Communication Setting].
For details, refer to the following.
1.1.2 I/F communication setting
10.3.2 Communication detail settings
Make the settings according to the usage environment.
2.
3.
4.
Click!
Item Description Range
Network
Type
*4
Set the network Type
(Default: CC IE Control)
• CC IE Control
• CC IE Control
extended mode
Network No.
Set the network No.
(Default: 1)
1 to 239
Station No.
Set the station No. of the GOT.
(Default: 1)
1 to 120
Group No. - 0 (fixed)
Mode Setting
Set the operation mode of the GOT.
(Default:
Online (auto. reconnection))
• Online
(auto.
reconnection)
• Offline
• Test station
*1
• Self-loopback
test
*1
• Internal self-
loopback test
*1
• Line test
*1
• H/W test
*1
Transmission
Speed
- 1 Gbps (fixed)
Refresh
Interval
Set the number of refreshes to
secure the send/receive data in
station units during communication.
(Default: 1ms)
Valid when [Block data assurance
per station is available.] is checked
by the control station side network
parameters of the CC-Link IE
Controller Network.
1 to 1000ms
Retry
Set the number of retries to be
performed when a communication
timeout occurs.
When no response is received after
retries, a communication times out.
(Default: 3times)
0 to 5times
Timeout
Time
Set the time period for a
communication to time out.
(Default: 3sec)
1 to 90sec
Delay Time
Set the delay time for reducing the
load of the network/destination PLC.
(Default: 0ms)
0 to 300ms
