Mitsubishi GOT2000 Series Connection Manual

17. CNC CONNECTION
17.7 Precautions
17 - 21
17
CNC CONNECTION
17.7.4 Ethernet connection
 Via network system
GOT with Ethernet communication cannot access the
CNCs in another network via the CNC (network
module, Ethernet module, etc.).
 When connecting to multiple GOTs
When connecting two or more GOTs in the Ethernet
network, set each [PLC No.] to the GOT.
17.4.1 Setting communication interface
(Communication settings)
 When connecting to the multiple network
equipment (including GOT) in a segment
By increasing the network load, the transmission speed
between the GOT and CNC may be reduced.
The following actions may improve the communication
performance.
• Using a switching hub
• More high speed by 100BASE-TX (100Mbps)
• Reduction of the monitoring points on GOT
 Ethernet cable connection
Ethernet cable is so susceptible to noise that you
should wire power cables and electric supply cables
separately. And you need to attach a ferrite core
(attachment) on the control unit side.
For details of the Ethernet cable connection, refer to the
following
C6/C64/C64T NETWORK INSTRUCTION
MANUAL BNP-B2373 IX Connection Function
with GOT
 Version of CNC
For MELDAS C6/C64, use NC system software version
D0 or later.

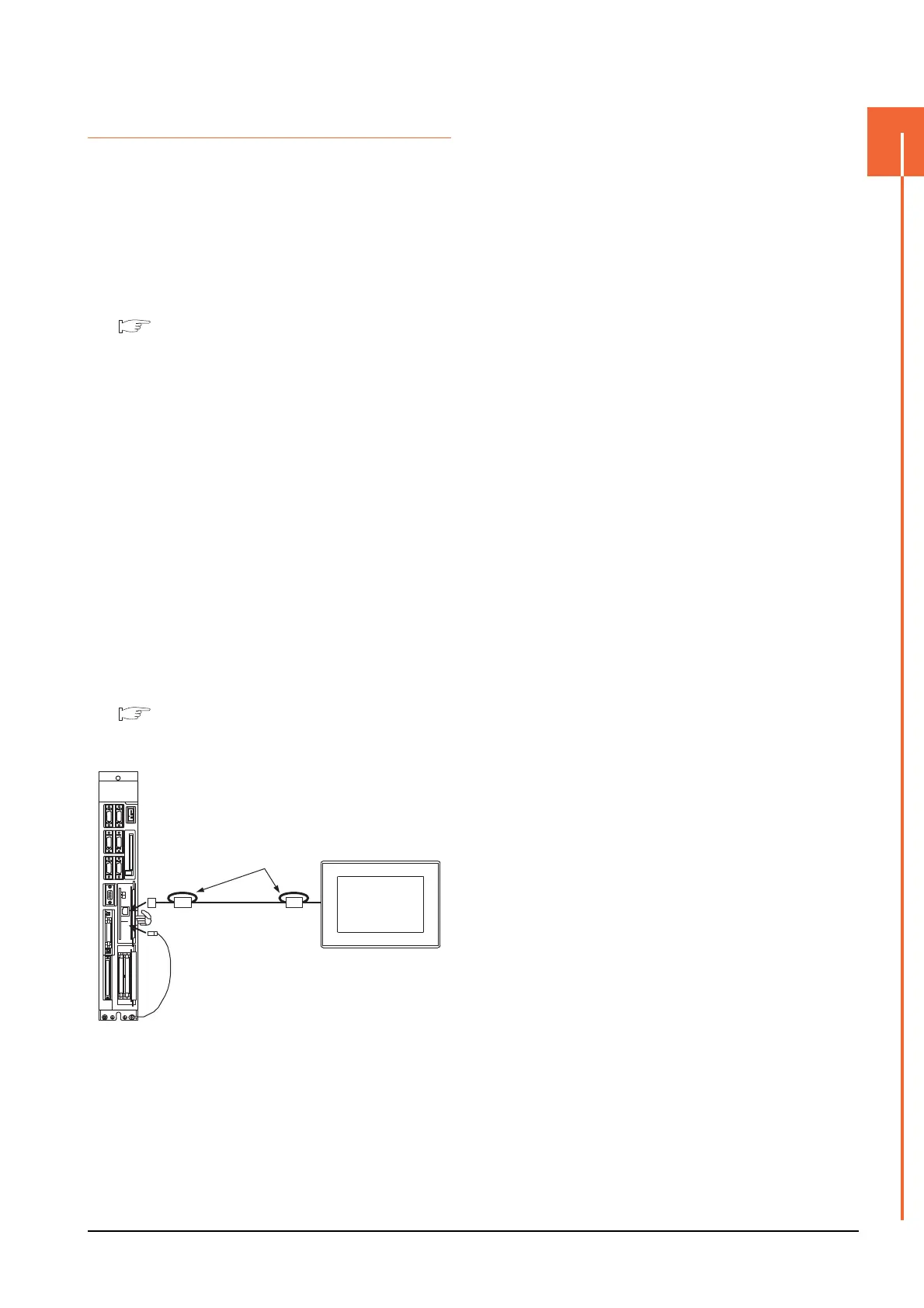

LED1
1 turn
Ferrite
core
Ferrite core
Ethernet
FG cable for Ethernet
GOT
