Mitsubishi GOT2000 Series Connection Manual

13. CC-Link CONNECTION (Via G4)
13.5 PLC Side Settings
13 - 13
CC-Link CONNECTION (Via G4)
13

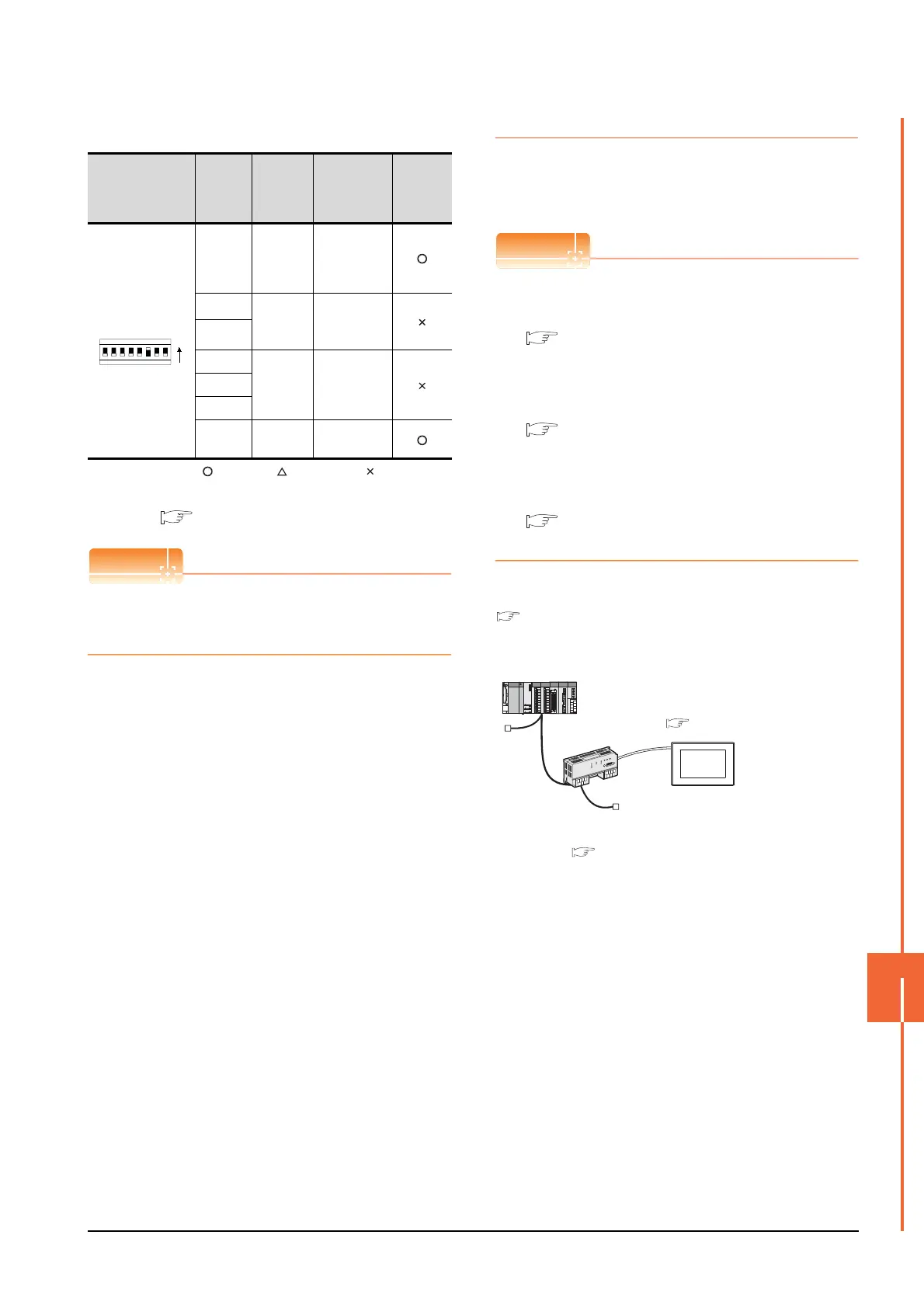

(3) Operation setting DIP switch
: Necessary : As necessary : Not necessary
*1 The peripheral connection module operates with the baud
rate set in the GOT.
13.5.6 [Controller Setting] of GT Designer3
POINTPOINTPOINT
Operation mode of peripheral connection module
Be sure to set the "Q mode" as an operation mode of
the peripheral connection module.
13.5.2 Connecting AJ65BT-R2N
This section describes the settings of the GOT and
peripheral connection module in the following case of the
system configuration.
POINTPOINTPOINT
(1) Peripheral connection module
For details of the peripheral connection module,
refer to the following manual.
Peripheral Connection Module Type AJ65BT-
R2N User's Manual
(2) CC-Link module
For details of the CC-Link module, refer to the
following manual.
CC-Link System Master/Local Module User's
Manual QJ61BT11N
(3) CC-Link built-in CPU
For details on the CC-Link function built-in CPU,
refer to the following manual.
MELSEC-L CC-Link System Master/Local
Module User's Manual
 System configuration
*1 The Start I/O No. of the CC-Link module is set to "0"
Operation setting
DIP switch
Setting
Switch
Description Set value
Setting
necessity
at GOT
connection
SW1,
SW6
Operation
mode
SW1 = OFF
SW6 = ON
(fixed)
(Q mode)
SW2
Peripheral
transmissi
on speed
*1
OFF (fixed)
SW3
SW4
Not used OFF (fixed)SW5
SW7
SW8 Test mode
OFF (fixed)
(Online mode)
SW
18234567
ON
<CC-Link module>
*1
Station type
Station No.
Mode
All connect count
Transmission speed
: Master station
: Station No. 0
: Remote net (Ver.1 mode)
: 1
: 156kbps
<AJ65BT-R2N>
Station type
Station No.
Number of stations occupied
Transmission speed
: Intelligent device station
: Station No. 1
: Exclusive station 1
: 156kbps
<GOT>
Transmission speed: 9600bps
Setting example
Setting example
Setting example
13.5.3 Switch setting of CC-Link module (Q series)
13.5.4 [Network parameter] of GX Developer
■ Switch setting of peripheral connection module
13.5.6 [Controller Setting] of GT Designer3
