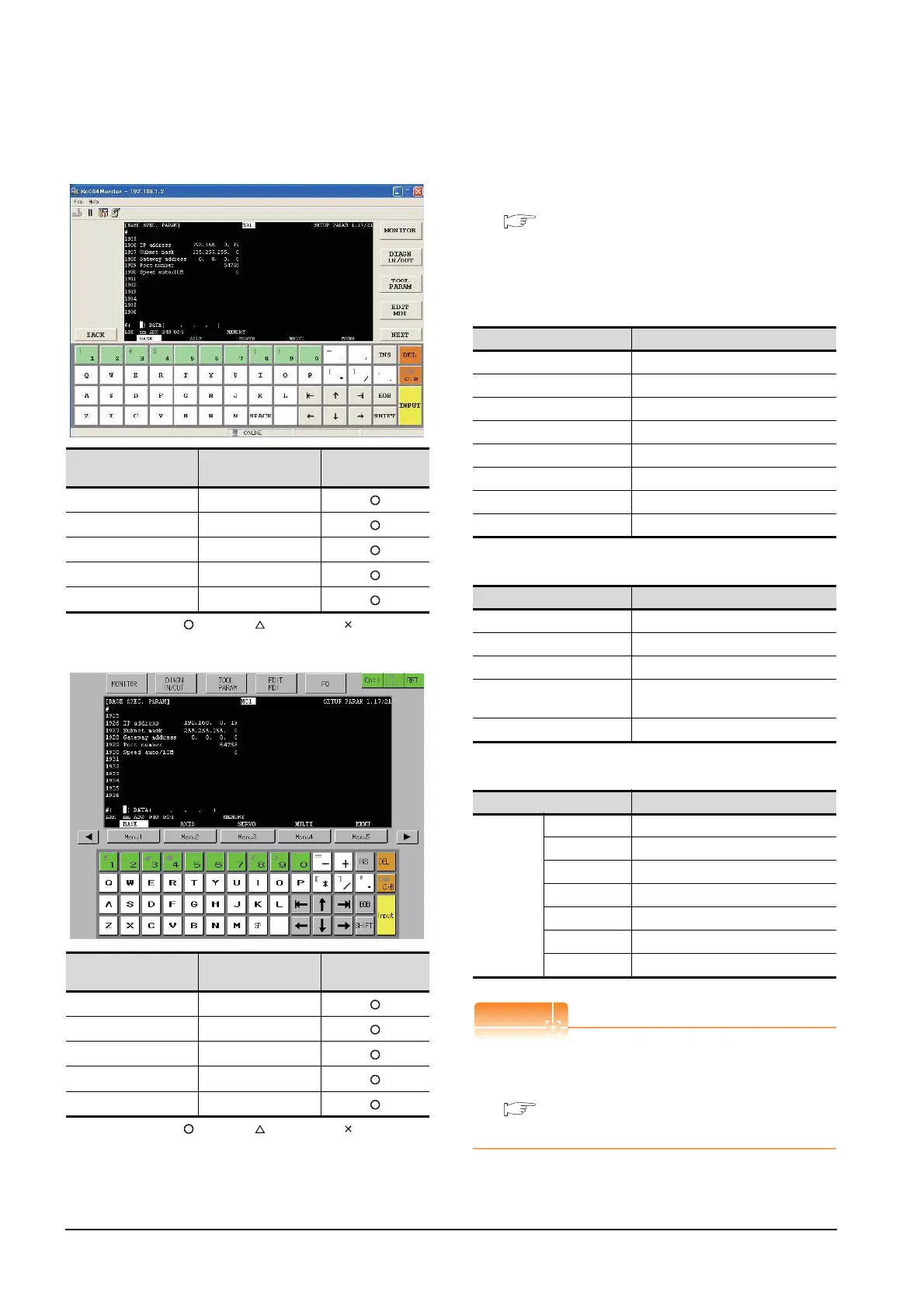

Mitsubishi GOT2000 Series Connection Manual

5 - 44
5. ETHERNET CONNECTION
5.4 PLC Side Setting
 IP address settings of CNC C70
(1) Remote monitor tool
: Necessary : As necessary : Not necessary
(2) CNC monitor
: Necessary : As necessary : Not necessary
(3) Communication check
The CNC C70 can communicate with the GOT when
INIT.LED of the CNC C70 is lit.
For confirming the communication state, refer to the
following.
■Checking communication state of CNC C70
 [Controller Setting] and [Ethernet] of GT
Designer3
(1) Controller setting
(2) GOT Ethernet setting
(3) Ethernet setting
POINTPOINTPOINT
[Controller Setting] and [Ethernet] of GT Designer3
For [Controller Setting] and [Ethernet] of GT
Designer3, refer to the following.
5.3.1 Setting communication interface
(Communication settings)
Item Set value
Setting necessity at
GOT connection
IP address 192.168.3.19
Subnet mask 255.255.255.0
Gateway address 0.0.0.0
Port number 64758 (fixed)
Speed auto/10M 0 (fixed)
Item Set value
Setting necessity at
GOT connection
IP address 192.168.3.19
Subnet mask 255.255.255.0
Gateway address
0.0.0.0
Port number 64758 (fixed)
Speed auto/10M
0 (fixed)
Item Set value (Use default value)
GOT Net No. 1
GOT Station 1
GOT Ethernet Setting 192.168.3.18
GOT Communication Port No. 5019
Retry 3times
Startup Time 3sec
Timeout Time 3sec
Delay Time 0ms
Item Set value (Use default value)
GOT IP Address 192.168.3.18
Subnet Mask 255.255.255.0
Default Gateway 0.0.0.0
Peripheral Communication
Port No.
5015
Transparent Port No. 5014
Item Set value
Ethernet
setting No.1
Host *
N/W No. 1
PLC No. 2
Type Q17nNC
IP address 192.168.3.19
Port No. 5001 (fixed)
Communication UDP (fixed)

Mitsubishi GOT2000 Series Specifications

General

Power Supply	24VDC
Software	GT Works3
Processor	RISC CPU
Interface	Ethernet, USB, RS-232, RS-422/485
Operating Temperature	0°C to 50°C
Display Type	TFT LCD
Storage Temperature	-20°C to 60°C
Humidity	10% to 90% (non-condensing)
Shock Resistance	147 m/s² (15G), 11ms duration
Touch Panel	Analog Resistive
