20 - 60

20. FA TRANSPARENT FUNCTION

20.6 Personal Computer Side Setting

(2) When connecting the GOT and PLC in Ethernet

communication

5. Mark the [via GOT(Bus) transparent mode]

checkbox on the [CPU side I/F Detailed Setting of

GOT] screen.

6. The screen returns to [Transfer Setup]. Click

[Connection Test] to check if Setting/Monitoring tool

for C Controller module has been connected to the

motion controller (Q mode).

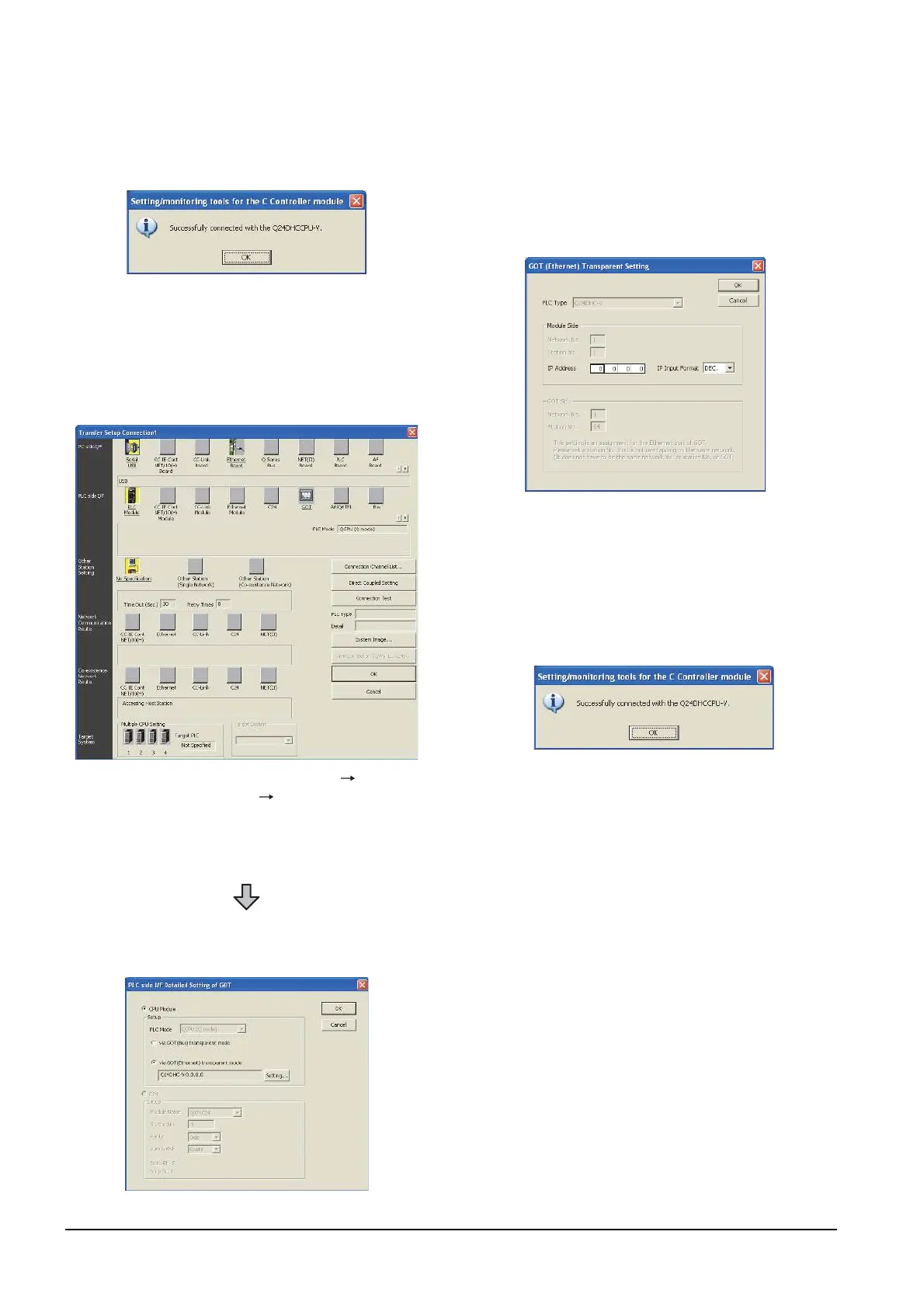

1. Click the Connection Destination view

[Connection Destination] [(Connection target

data name)] in the Navigation window of MT Setting/

Monitoring tool for C Controller module.

2. The [Transfer Setup] is displayed.

3. Set the [Transfer Setup]:

PLC side I/F : GOT

Other station : No specification

4. Double-click [GOT] of the CPU side I/F to display

[CPU side I/F Detailed Setting of GOT].

5. Mark the [via GOT(Ethernet) transparent mode]

checkbox on the [CPU side I/F Detailed Setting of

GOT] screen.

6. By clicking [Set], the [GOT (Ethernet) Transparent

Setting] is displayed.

Here, set the C Controller module (Q24DHCCPU-

V), which is firstly connected via a GOT.

7. Specify the IP address for [IP address] same as the

IP address assigned to the C Controller module

(Q24DHCCPU-V).

8. The screen returns to [Transfer Setup]. Click

[Connection Test] to check if Setting/Monitoring tool

for C Controller module has been connected to the

C Controller module (Q24DHCCPU-V).
